描述

2711P-RN6 PanelView Plus / PanelView Plus CE / PanelView 6操作員終端

艾倫-布拉德利2711P-RN16是一種可選通信適配器。該適配器安裝在現有邏輯模塊的頂部，支持數據高速公路+ (DH+)，遠程I/O (RIO)和DH-485網絡連接。它兼容使用PanelView Plus / PanelView Plus CE和PanelView Plus 6圖形操作終端。具體來說，它只能安裝在屏幕尺寸為7英寸至15英寸或700至1500范圍的操作終端上。當與PanelView Plus 6一起使用時，僅支持數據高速公路Plus (DH+)和DH485，因為PanelView Plus 6不支持本機遠程I/O通信，即使使用2711P-RN6通信模塊。另外，2711P-RN6不兼容PanelView Plus 7圖形操作終端。

2711P-RN6具有1個DH485端口和1個DH+ / RIO通信端口。兩個端口都是鳳凰連接器，DH485有6個引腳，DH+ / RIO有3個連接引腳。此外，該通信適配器有兩(2)個LED狀態指示燈，熄滅時表示通道未在線，綠色閃爍時表示設備僅在網絡上有節點，綠色常亮?xí)r表示設備在線并接收令牌，紅色閃爍時表示DH-485:重復節點/ DH+:奇偶校驗錯誤，紅色常亮?xí)r表示自檢失敗。

DH+和RIO網絡支持多節點通信，可以覆蓋很長的距離。這些通信協議支持菊花鏈拓撲結構和快速的數據傳輸速率。它需要使用1770-CD或Belden Blue Hose電纜。對于DH-485通信，它還支持菊花鏈拓撲，需要使用Belden #3106A或#9842。

該模塊提供指示燈，用于顯示DH-485或DH+網絡連接狀態。在DH-485網絡上，控制器可以向網絡上的其他控制器發送和接收消息。艾倫-布拉德利2711P-RN6確實支持遠程編程和監控。請記住，通過DH-485連接的過多流量可能會影響性能，并導致時間和效率的損失。Allen-Bradley 2711P-RN6網絡將信息從一個設備發送到另一個設備。該模塊監控進程狀態和設備狀態。它支持數據采集和監控、程序上傳和下載以及監督控制。該模塊的最大網絡長度為4000英尺。該模塊一次最多可連接32臺設備。該模塊還可以在不中斷網絡的情況下添加和刪除節點。控制DH-485網絡上消息傳輸?shù)膮f(xié)議支持2類設備:發起者和響應者。在包裝為零之前，啟動器將尋找的最大地址數是最大可配置節點地址處的值。所有啟動器和響應器的缺省值為31。2711P-RN6的網絡中至少存在1個啟動器。2711P-RN6的貨運重量為3磅，貨運尺寸為11 × 8 × 6英寸。

2711P-RN6 PanelView Plus / PanelView Plus CE / PanelView 6操作員終端

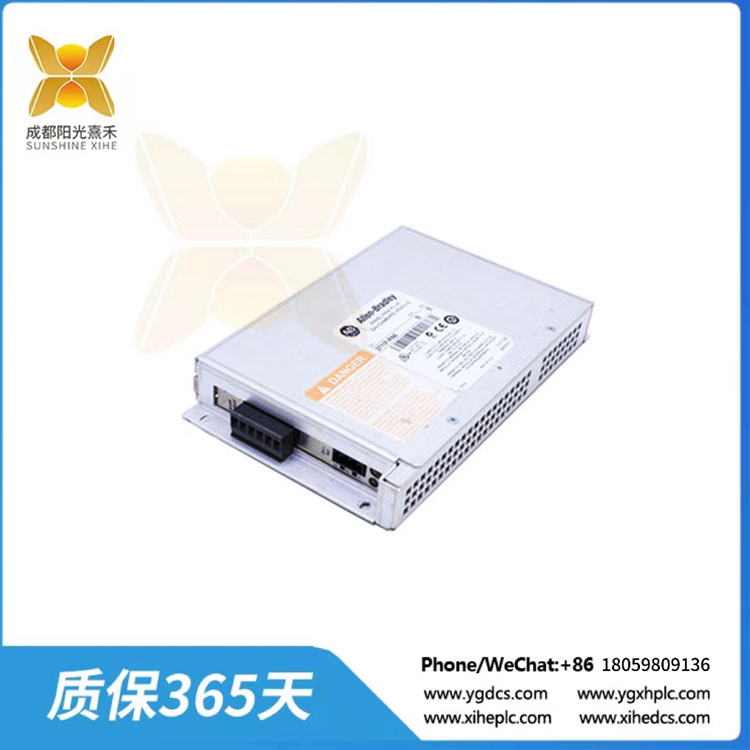

The Allen-Bradley 2711P-RN16 is an optional communication adapter. This adapter is installed on top of an existing Logic module, enabling Data Highway Plus (DH+), Remote I/O (RIO) and DH-485 network connectivity. It is compatible for use with PanelView Plus / PanelView Plus CE and PanelView Plus 6 graphic operator terminals. Specifically, it may only be installed with operator terminals having screen size of 7-inch to 15-inch or 700 to 1500 range. When used with PanelView Plus 6, only Data Highway Plus (DH+) and DH485 is supported as the PanelView Plus 6 does not support native Remote I/O communications, even with a 2711P-RN6 communication module. Additionally, the 2711P-RN6 is not compatible with PanelView Plus 7 graphic operator terminals.

The 2711P-RN6 comes with One (1) DH485 port and One (1) DH+ / RIO communication ports. Both ports are phoenix connectors with the DH485 having 6 pins and DH+ / RIO having 3 connection pins. Additionally, this communication adapter has Two (2) LED status indicators that indicate Channel is not online when OFF, Device is only node on the network when Blinking green, Device is online and receiving token when Solid green, DH-485: Duplicate node / DH+: Parity error when Blinking red and Failed self-test when Solid red.

The DH+ and RIO network supports multi-node communication and may cover long distances. These communication protocol supports daisy-chain topology and fast data transmission rate. It requires use of the 1770-CD or the Belden Blue Hose cable. For DH-485 communication, it also support daisy chain topology and requires use of Belden #3106A or #9842.

This module has indicators that show the status of the DH-485 or the DH+ network connections. On the DH-485 network, the controller can send and receive messages to and from other controllers on the network. The Allen-Bradley 2711P-RN6 does support remote programming and monitoring. Keep in mind that excessive traffic through a DH-485 connection may affect performance and result in loss of time and efficiency. The Allen-Bradley 2711P-RN6 network sends information from 1 device to another. This module monitors process status and device status. It supports data acquisition and monitoring, program uploading and downloading, and supervisory controls. The maximum network length for this module is 4000 feet. This module can connect with up to 32 devices at a time. This module can also add and remove nodes without disrupting the network. The protocol that controls the transfer of messages on the DH-485 network supports 2 classes of devices: initiators and responders. The maximum number of addresses that the initiators will seek before wrapping to zero is the value at the maximum configurable node address. The default value for is 31 for all the initiators and responders. The 2711P-RN6 must have at least 1 initiator on its network. The shipping weight of the 2711P-RN6 is 3 pounds and the shipping dimensions are 11 x 8 x 6 inches.
