描述

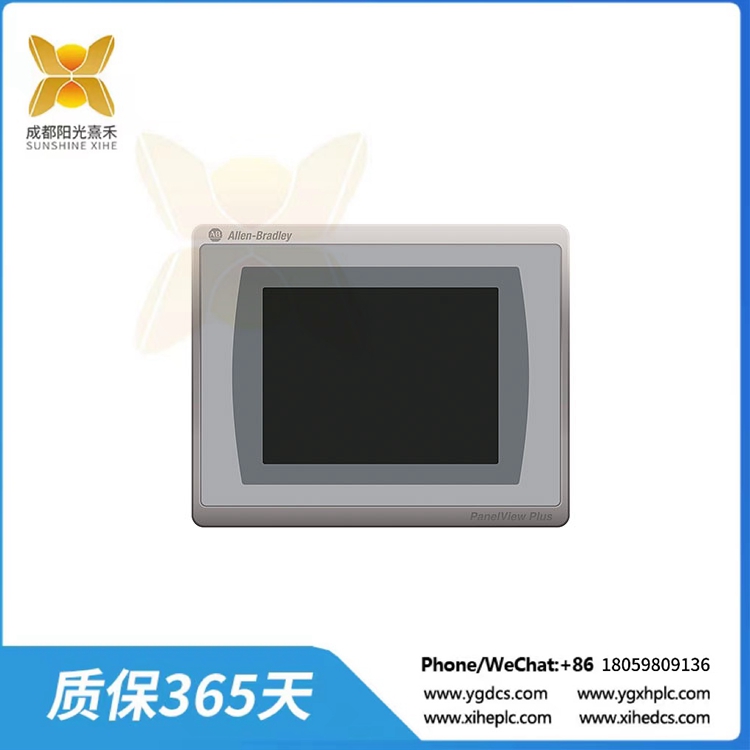

2711P-T7C21D8S PanelView Plus 7操作終端

艾倫-布拉德利2711P-T7C21D8S屬于PanelView Plus 7操作終端。該操作終端采用6.5英寸彩色顯示屏，觀看面積132 x 99毫米，分辨率640 x 480 VGA, 18位彩色圖形，寬高比為4:3。同一顯示屏上安裝了模擬電阻觸摸輸入?yún)^(qū)，允許操作員直接觸摸相應的運行時對象來啟動控制、導航、數據修改等功能。這種嵌入式觸摸界面可以在相當于100克的驅動力下驅動多達100萬臺壓力機。

Allen-Bradley 2711P-T7C21D8S安裝了一個電池支持的實時時鐘(RTC)，精確度為每月±2分鐘，在25°C(77°F)下的預期壽命為4年。它還配備了512mb隨機存取內存(RAM)、512mb存儲空間和80mb用戶文件存儲空間等內部內存。此外，可以安裝外部SD卡和USB閃存驅動器，以提供更高的存儲內存。

2711P-T7C21D8S的供電電壓為18-30VDC，標稱值為24VDC。它的最大功耗為50W。在安裝安裝到機箱上的操作終端時，需要創建一個尺寸為142 x 184 mm (5.59 x 7.24 in.)的面板切口。

與操作終端一起使用的適當外殼是具有NEMA和UL類型12,13,4x(僅限室內使用)保護等級的電氣面板，也可按UL分類為IP54或IP66。

2711P-T7C21D8S的工作電壓范圍為18至30伏直流，在1.46A和24伏直流下的最大功耗為35瓦，在47至63赫茲din軌道電源源下的交流范圍為85至265伏。它的工作溫度范圍在32到131華氏度之間，在5%到95%的非冷凝相對濕度下，它的儲存溫度范圍為-13到158華氏度。它在運行時散發的最大熱量為15瓦，其設計可承受15G的操作沖擊和57至600赫茲的2G操作振動。它具有NEMA 4X, 12和13級外殼，并通過cUL-us, ATEX, CE, KCC和rohs認證。2711P-T7C21D8S重約0.85公斤(1.86磅)，凈尺寸為170 x 212 x 56.5毫米(6.69 x 8.35 x 2.22英寸)。

2711P-T7C21D8S PanelView Plus 7操作終端

The Allen-Bradley 2711P-T7C21D8S belongs to the PanelView Plus 7 operator terminals. This operator terminal features a 6.5-inch colored display screen, with viewing area of 132 x 99 mm and resolution of 640 x 480 VGA in 18-bit color graphics with an aspect ratio of 4:3. The same display screen is installed with an analog resistive touch input area, allowing operator to directly touch the appropriate runtime object to initiate control, navigation, data modification and other functions. This embedded touch interface may be actuated up to 1 million presses at an actuation force equivalent to 100 grams.

The Allen-Bradley 2711P-T7C21D8S is installed with a battery backed Real-Time Clock (RTC) with accuracy of ±2 minutes per month and expected lifespan of 4 years min at 25 °C (77 °F). It also come with internal memory such as 512 MB Random Access Memory (RAM), 512 MB storage and user memory of 80 MB for file storage. Additionally, external SD cards and USB flash drives may be installed to provide higher storage memory.

The 2711P-T7C21D8S is powered by an external power supply voltage of 18-30VDC with nominal value of 24VDC. It has a power consumption of 50W, maximum. When installing this operator terminal flush mounted to an enclosure, create a panel cut-out with dimension of 142 x 184 mm (5.59 x 7.24 in.).

Appropriate enclosure for use with operator terminal are electrical panels with protection ratings of NEMA and UL Type 12, 13, 4X (indoor use only), also rated IP54 or IP66 as Classified by UL.

The 2711P-T7C21D8S has an operating voltage range of 18 to 30 Volts DC, with a maximum power consumption of 35 Watts at 1.46A and 24 Volts DC, and a range of 85 to 265 Volts AC at 47 to 63 Hertz DIN-railed power supply source. Its operational temperature ranges between 32 and 131 degrees Fahrenheit at 5 to 95% non-condensing relative humidity, and it is stored at a temperature range of -13 and 158 degrees Fahrenheit. It dissipates 15 Watts of maximum heat when operational, and it is designed to withstand an operational shock of 15G and an operational vibration of 2G at 57 to 600 Hertz. it comes in a NEMA 4X, 12, and 13-rated enclosure, and it is cUL-us, ATEX, CE, KCC, and RoHS-certified. The 2711P-T7C21D8S weighs approximately 0.85 kilograms (1.86 pounds), and it has net dimensions of 170 x 212 x 56.5 millimeters (6.69?x 8.35?x 2.22 inches).
