描述

289761-01 圖形邏輯編程界面和集成超速檢測

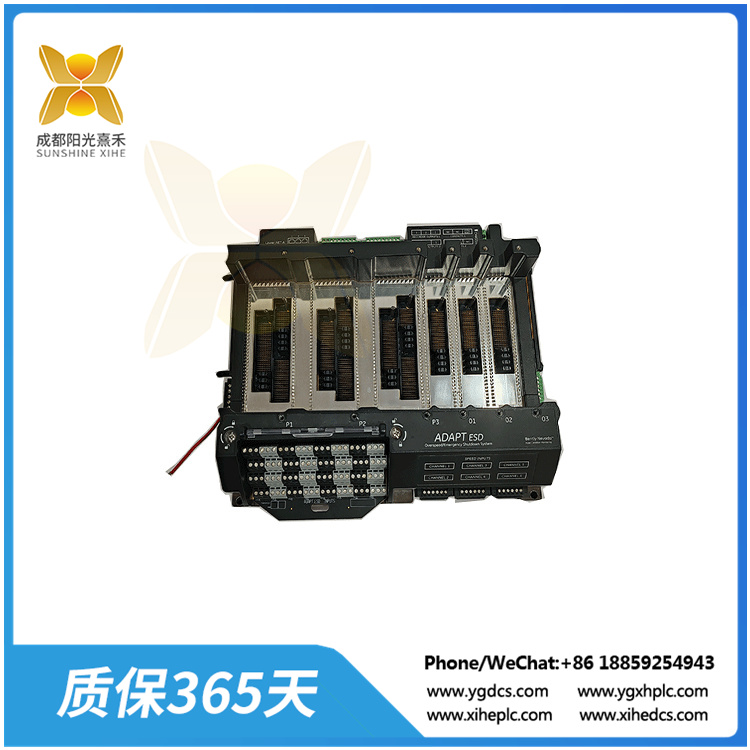

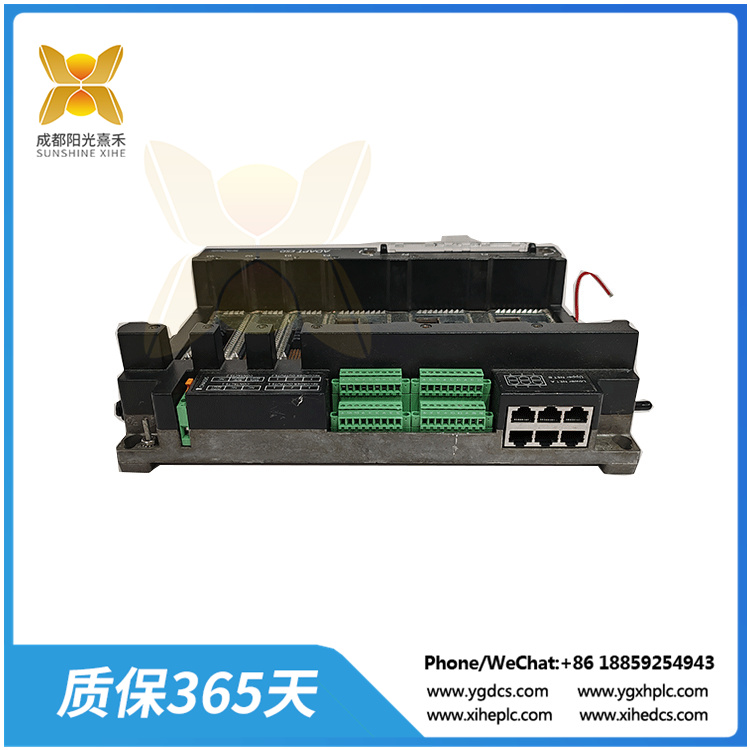

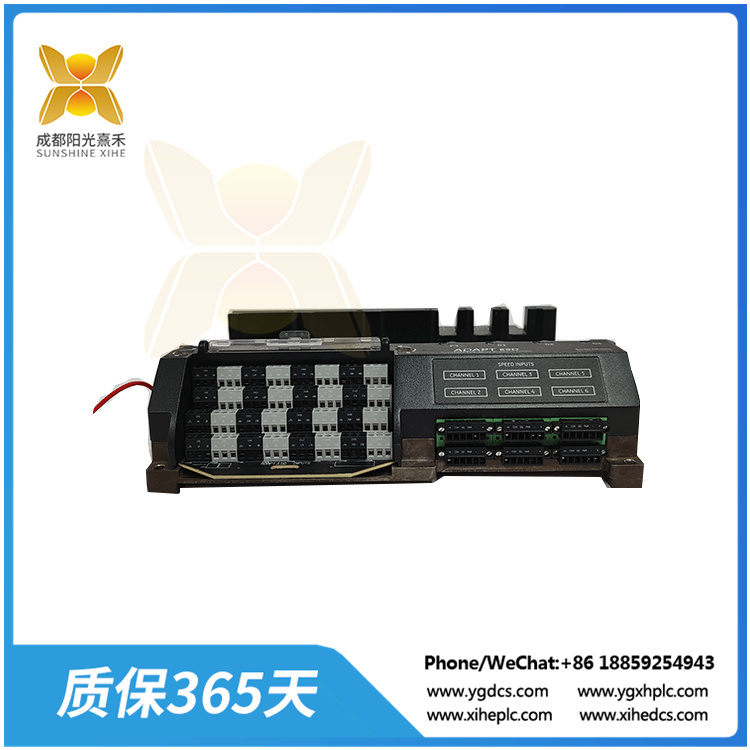

289761-01緊急停機設備(ADAPT ESD)是一款安全PLC，具有圖形邏輯編程界面和集成超速檢測。ADAPT ESD設計用于緊急關閉旋轉機械，如蒸汽、燃?xì)?、水輪機、膨脹器和其他工藝設備。
ADAPT ESD是一種緊湊、獨立、三冗余的安全關斷裝置，可滿足廣泛的用戶場景和應用。該設計提供了一個電氣和機械包，注重可靠性和可用性，以及廣泛的自我診斷和符合行業標準。

系統輸入使用三個CPU模塊處理，提供三重模塊冗余(TMR)。每個CPU處理模塊處理兩個獨特的速度輸入通道，為系統提供總共6個速度通道。處理模塊還監控32個離散(DI)和過程變量(PV)信號輸入陣列。該輸入信號陣列的12個通道可以配置為離散輸入或4- 20ma模擬輸入。陣列中剩余的通道僅為離散輸入信號保留。

輸出
289761-01? ADAPT ESD系統的機器關機功能由TMR繼電器輸出模塊驅動。每個繼電器輸出模塊有五個繼電器與可配置性的水平，以適應各種應用和要求。每個模塊中五個繼電器中的四個用于發出系統邏輯。剩余的繼電器反映關聯保護路徑的OK/NOTOK狀態。

289761-01 圖形邏輯編程界面和集成超速檢測

The 289761-01Emergency Shutdown Device, (ADAPT ESD) is a safety PLC with a graphical logic programming interface and integrated overspeed detection. ADAPT ESD is designed for emergency shutdown of rotating machinery such as steam, gas, and hydro turbines, expanders, and other process equipment.
ADAPT ESD is a compact, standalone, triple-redundant, safety shutdown device that is designed to meet a broad range of user scenarios and applications. The design offers an electrical and mechanical package with attention to reliability and availability as well as extensive self-diagnostics and compliance to industry standards.

Inputs to the system are processed using three CPU modules to provide triple modular redundancy (TMR). Each CPU processing module processes two unique speed input channels, for a total of six speed channels for the system. The processing modules also monitor an array of 32 discrete (DI) and process variable (PV) signal inputs. Twelve channels of this input signal array may be configured either as discrete inputs or 4-20 mA analog inputs. Remaining channels in the array are reserved for discrete input signals only.

Outputs
Machinery shutdown functionality of the 3701/55 ADAPT ESD system is actuated by TMR relay output modules. Each relay output module has five relays with a level of configurability that accommodates a variety of applications and requirements. Four of the five relays in each module are used to annunciate system logic. The remaining relay reflects the OK/NOTOK status of the associated protection path.
