描述

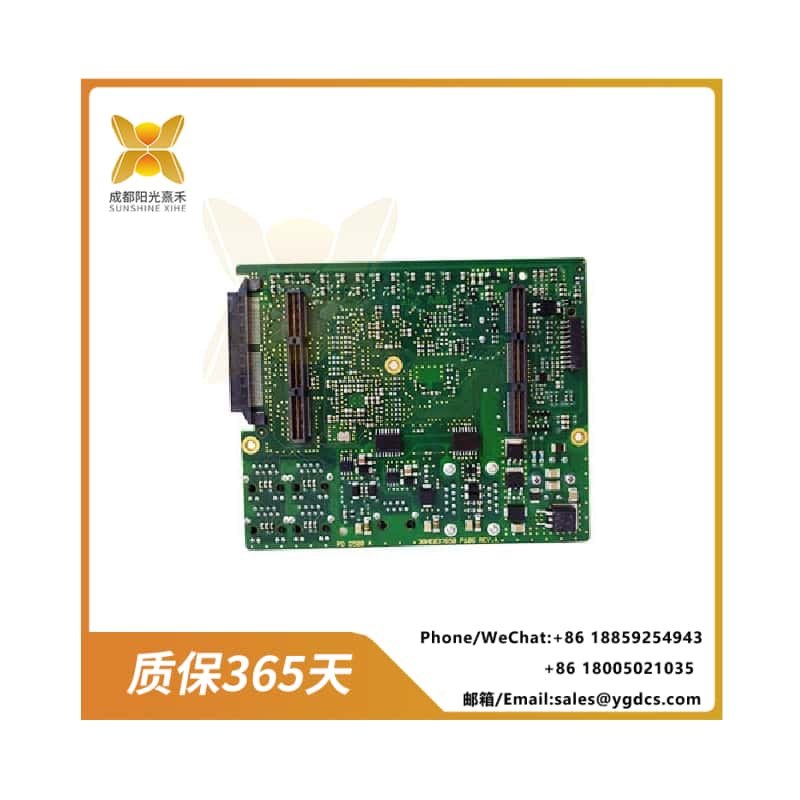

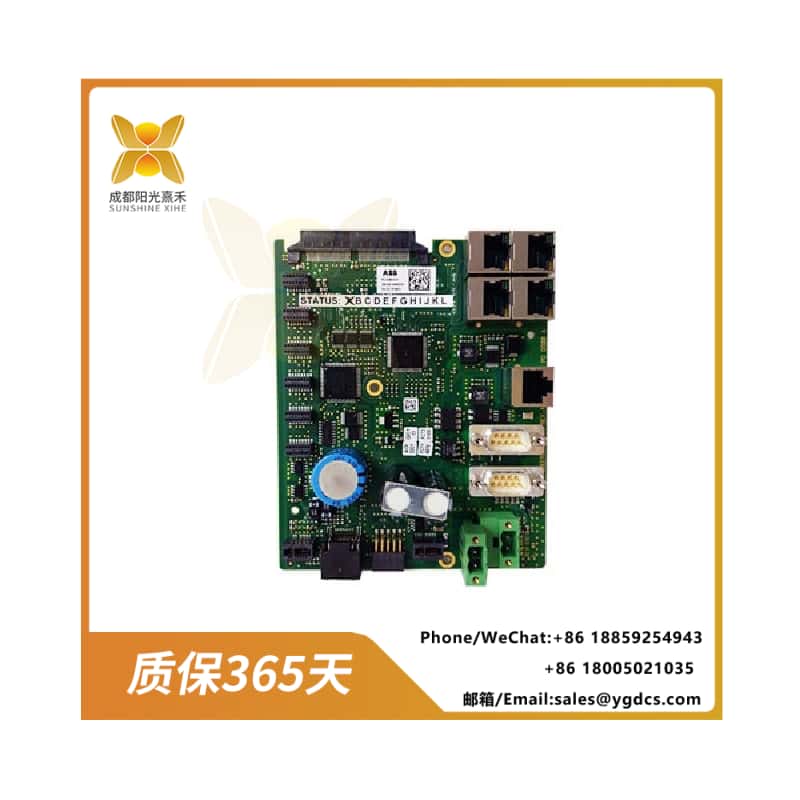

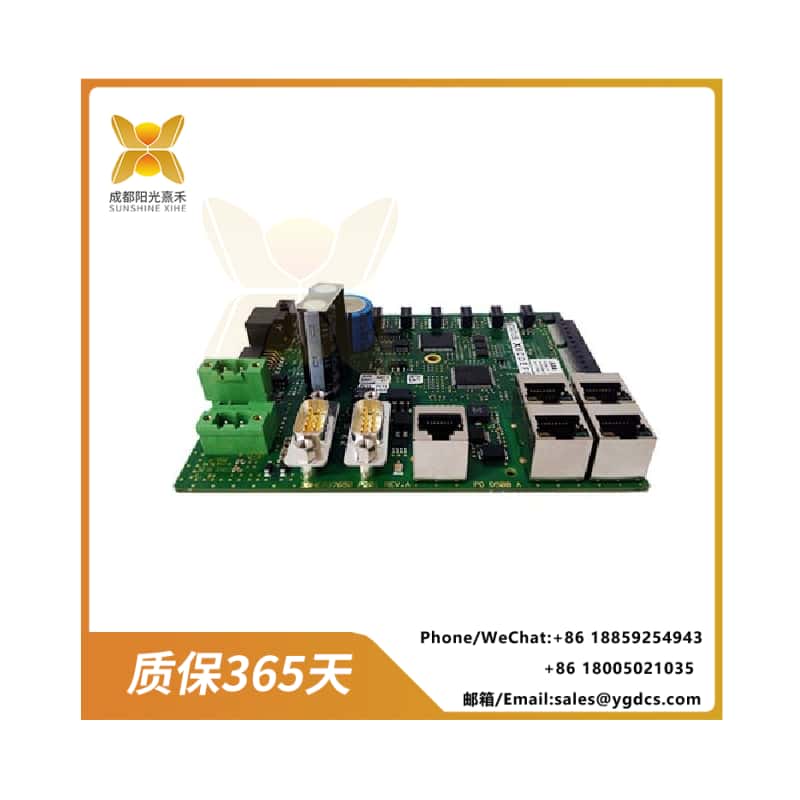

ABB PDD500A101 工業自動化模塊

The ABB PDD500A101 is a multifunctional industrial automation module, widely used in drive control, data communication, signal processing and other fields.
ABB PDD500A101 是一款多功能工業自動化模塊，廣泛應用于驅動控制、數據通信和信號處理等領域。

This module is part of ABB’s product line, featuring a variety of functions and configuration options, and is suitable for various industrial automation scenarios.
該模塊是 ABB 公司產品線中的一部分，具有多種功能和配置選項，適用于各種工業自動化場景。

Product Overview
產品概述

The ABB PDD500A101 is an industrial automation module, mainly used for drive control, data communication and signal processing.
ABB PDD500A101 是一款工業自動化模塊，主要用于驅動控制、數據通信和信號處理。

It supports multiple functions, including analog output, digital input/output, communication protocol support, etc.
它支持多種功能，包括模擬量輸出、數字輸入/輸出、通信協議支持等。

This module is designed to provide efficient industrial control solutions, applicable to multiple industries such as manufacturing, automotive, food processing and pharmaceuticals.
該模塊的設計旨在提供高效的工業控制解決方案，適用于制造業、汽車、食品加工和制藥等多個行業 。

Technical parameters
技術參數

1. Power supply and power consumption
1. 供電與功耗

Power supply voltage: 24VDC
供電電壓：24VDC

Power consumption: Approximately 5W to 6W
功耗：約5W至6W

2. Working and storage temperature
2. 工作與存儲溫度

Operating temperature range: -40℃ to +70℃
工作溫度范圍：-40℃至+70℃

Storage temperature range: -40℃ to +85℃
存儲溫度范圍：-40℃至+85℃

3. Input and output voltages
3. 輸入與輸出電壓

Input voltage range: 100-240VAC
輸入電壓范圍：100-240VAC

Output voltage range: 0-500VAC
輸出電壓范圍：0-500VAC

4. Communication protocol
4. 通信協議

Communication protocols: Modbus, Ethernet /IP, PROFIBUS DP, CAN, RS-485, etc
通信協議：Modbus、以太網/IP、PROFIBUS DP、CAN、RS-485 等

5. I/O configuration
5. I/O 配置

Digital input/output: Up to 64 digital inputs/outputs
數字輸入/輸出：多達64個數字輸入/輸出

Analog output: High-performance dual-channel analog output module, suitable for ABB PXI systems
模擬輸出：高性能雙通道模擬輸出模塊，適用于ABB PXI系統

6. Processor and Memory
6. 處理器與內存

Processor: ARM Cortex-A8 600 MHz
處理器：ARM Cortex-A8 600 MHz

Memory: 512 MB RAM / 512 MB Flash
內存：512 MB RAM / 512 MB Flash

7. Protection grade
7. 防護等級

Protection grade: IP67
防護等級：IP67

8. Dimensions and Weight
8. 尺寸與重量

Dimensions: 120 x 100 x 35 mm (4.72 x 3.94 x 1.38 inches)
尺寸：120 x 100 x 35 mm（4.72 x 3.94 x 1.38英寸）

Weight: 0.4 kg (0.88 pounds)
重量：0.4 kg（0.88磅）

9. Application fields
9. 應用領域

Manufacturing industry: Used in robot assembly lines, automated production lines, etc.
制造業：用于機器人裝配線、自動化生產線等。

Automobiles: Used in robot assembly lines to enhance production efficiency.
汽車：用于機器人裝配線，提高生產效率。

Food processing: Used in packaging production lines to ensure product safety and compliance.
食品加工：用于包裝生產線，確保產品安全性和合規性。

Electricity and energy: Used for the control of equipment such as pumps, fans, and compressors.
電力與能源：用于泵、風機、壓縮機等設備的控制。

Transportation: Used for the control of equipment such as elevators and cranes
交通：用于電梯、起重機等設備的控制

Functional features
功能特點

Multi-protocol communication: Supports multiple communication protocols, such as Modbus, Profibus, Ethernet/IP, etc., facilitating integration with existing systems.
多協議通信：支持多種通信協議，如 Modbus、Profibus、Ethernet/IP 等，便于與現有系統集成 。

High reliability: Adopting industrial-grade design, it features overload protection, short-circuit protection and other functions to ensure long-term stable operation.
高可靠性：采用工業級設計，具備過載保護、短路保護等功能，確保長期穩定運行 。

Modular design: Supports hot-swappable design, facilitating online maintenance and reducing system downtime.
模塊化設計：支持熱插拔設計，便于在線維護，減少系統停機時間 。

Remote management: Supports functions such as remote parameter setting and program upgrade, enhancing the flexibility and maintainability of the system.
遠程管理：支持遠程參數設置、程序升級等功能，提高系統的靈活性和可維護性 。

High-precision control: It offers precise analog and digital outputs, suitable for high-precision control requirements.
高精度控制：提供精確的模擬輸出和數字輸出，適用于高精度控制需求 。

Application Case
應用案例

Automobile manufacturing: A leading automaker has adopted the PDD500A101 management robot assembly line, which has increased production efficiency by 20%.
汽車制造：某領先汽車制造商使用 PDD500A101 管理機器人裝配線，使生產效率提高了20% 。

Food processing: A certain food processing plant has adopted PDD200A101 on its packaging production line, simplifying the process while ensuring the safety and compliance of the products.
食品加工：某食品加工廠在其包裝生產線上采用 PDD200A101，簡化了流程，同時確保了產品的安全性和合規性 。

Summary
總結

The ABB PDD500A101 is a high-performance and multi-functional industrial automation module, suitable for a variety of industrial application scenarios.
ABB PDD500A101 是一款高性能、多功能的工業自動化模塊，適用于多種工業應用場景。

Its rich functions and flexible configuration make it an ideal choice in the field of industrial automation.
其豐富的功能和靈活的配置使其成為工業自動化領域的理想選擇。

Whether for drive control, data communication or signal processing, the PDD500A101 can provide reliable and efficient solutions.
無論是用于驅動控制、數據通信還是信號處理，PDD500A101 都能提供可靠、高效的解決方案。
