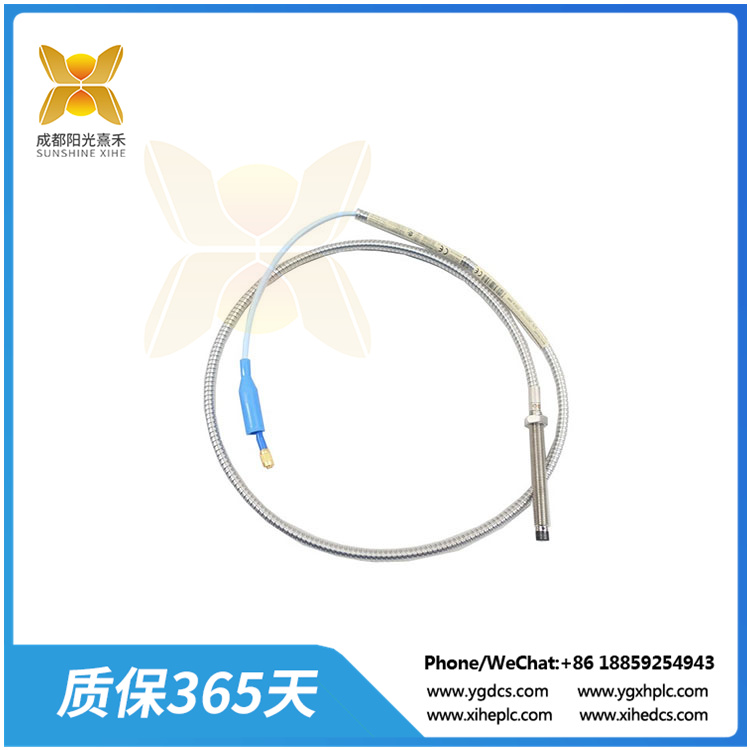

330102-00-28-05-02-05 接近傳感器系統
該系統提供的輸出電壓與探頭尖端和觀察到的導電表面之間的距離成正比，可以測量靜態(位置)和動態(振動)值。該系統的主要應用是振動和位置測量的流體膜軸承機器，以及關鍵相量參考和速度測量3。3300 XL 8毫米系統在我們的渦流接近傳感器系統中提供了最先進的性能。
標準的3300 XL 8毫米5米系統在機械配置、線性范圍、精度和溫度穩定性方面也完全符合美國石油協會(API)670標準。所有8mmproximity傳感器系統都提供了這種性能水平，并支持探頭，延長電纜和Proximitor傳感器的完全互換性，無需匹配或臺式校準單個組件。
每個330102-00-28-05-02-05 8mm傳感器系統組件向后兼容和可互換4與其他非xl 3300系列5mm和8mm傳感器系統組件5。這種兼容性包括3300 5毫米探頭，適用于8毫米探頭對可用安裝空間太大的應用6,7。
擴展的溫度范圍應用
擴展溫度范圍(ETR)探頭和ETR延伸電纜可用于探頭引線或延伸電纜可能超過標準177?C(350?F)溫度規范的應用。ETRprobe的額定溫度可達218?C(425?F)。ETR擴展電纜的溫度可達260?C(500?F)。ETR探頭和電纜都與標準溫度探頭和電纜兼容，例如，您可以使用ETR探頭與330130延長電纜。ETR系統使用標準的3300 XL Proximitor傳感器。請注意，當您使用任何ETR組件作為系統的一部分時，ETR組件將系統精度限制為etrs系統的精度。
330102-00-28-05-02-05 接近傳感器系統
The system provides an output voltage that is directlyproportional to the distance between the probe tip and theobserved conductive surface and can measure both static(position) and dynamic (vibration) values. The system’sprimary applications are vibration and positionmeasurements on fluid-film bearing machines, as well asKeyphasor reference and speed measurements3. The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems.
The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute’s (API)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 330102-00-28-05-02-05 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.
Each 330102-00-28-05-02-05 8 mm Transducer System component isbackward compatible and interchangeable4 with other nonXL 3300 series 5 mm and 8 mm transducer systemcomponents5. This compatibility includes the 3300 5 mmprobe, for applications in which an 8 mm probe is too largefor the available mounting space6,7.
Extended Temperature RangeApplications
An extended temperature range (ETR) probeand ETR extension cable are available forapplications in which either the probe lead orextension cable may exceed the standard 177?C(350?F) temperature specification. The ETRprobe has an extended temperature rating forup to 218?C (425?F). The ETR extension cablerating is up to 260?C (500?F). Both the ETR probeand cable are compatible with standardtemperature probes and cables, for example,you can utilize an ETR probe with the 330130extension cable. The ETR system uses thestandard 3300 XL Proximitor Sensor. Note thatwhen you use any ETR component as part ofyour system, the ETR component limits thesystem accuracy to the accuracy of the ETRsystem.
