描述

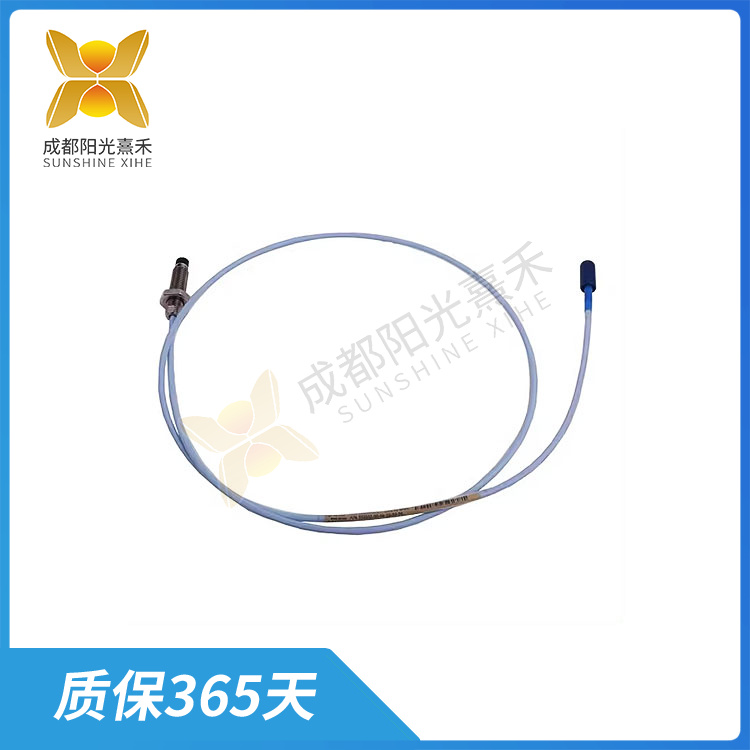

330103-00-03-10-02-CN 基于電渦流效應工作的傳感器探頭

電渦流探頭是一種基于電渦流效應工作的傳感器探頭，330103-00-03-10-02-CN利用金屬導體置于變化的磁場中時產生的電渦流來檢測物體的位移、振動等參數。電渦流探頭廣泛應用于工業測量和控制系統中，特別是在旋轉機械、振動監測和位移測量等領域。

電渦流探頭的工作原理是，當探頭靠近金屬導體時，會在金屬導體表面產生電渦流。這個電渦流會產生反向的電磁場，與探頭的原始磁場相互作用。通過測量這個反向電磁場的強度，可以確定探頭與金屬導體之間的距離。電渦流探頭通常與前置放大器一起使用，將測量到的電渦流信號轉換成標準電壓或電流信號，以供后續的數據處理和分析。

電渦流探頭的優點是測量精度高、響應速度快、抗干擾能力強等。它可以非接觸式地測量金屬導體的位移和振動，不需要與被測物體直接接觸，因此減少了測量誤差和磨損。此外，電渦流探頭還具有較好的線性度和穩定性，適用于長期監測和控制應用。

需要注意的是，電渦流探頭330103-00-03-10-02-CN對被測物體的材料、形狀、大小等因素都有一定的要求。例如，被測物體必須是金屬導體，且表面應平整、光滑、無油污等雜質。此外，探頭與被測物體之間的距離也會影響測量精度和穩定性，因此需要進行合適的安裝和調試。

總的來說，電渦流探頭330103-00-03-10-02-CN是一種重要的工業測量和控制傳感器，具有廣泛的應用前景和市場需求。在使用電渦流探頭時，需要了解其工作原理、特點和使用方法，以確保正確、可靠地測量和控制被測物體的位移和振動等參數。

330103-00-03-10-02-CN 基于電渦流效應工作的傳感器探頭

The eddy current probe is a sensor probe that works based on the eddy current effect. 330103-00-03-10-02-CN uses the eddy current generated when the metal conductor is placed in a changing magnetic field to detect the displacement, vibration and other parameters of the object. Eddy current probes are widely used in industrial measurement and control systems, especially in rotating machinery, vibration monitoring and displacement measurement.

The eddy current probe works by creating eddy currents on the surface of a metal conductor when the probe is close to the conductor. This eddy creates a reverse electromagnetic field that interacts with the probe’s original magnetic field. By measuring the strength of this reversed electromagnetic field, the distance between the probe and the metal conductor can be determined. The eddy current probe is usually used with a preamplifier to convert the measured eddy current signal into a standard voltage or current signal for subsequent data processing and analysis.

The eddy current probe has the advantages of high measurement accuracy, fast response speed and strong anti-interference ability. It can measure the displacement and vibration of metal conductors without contact, without the need for direct contact with the object to be measured, thus reducing measurement errors and wear. In addition, the eddy current probe has good linearity and stability, suitable for long-term monitoring and control applications.

It should be noted that the eddy current probe 330103-00-03-10-02-CN has certain requirements for the material, shape, size and other factors of the object to be measured. For example, the object to be measured must be a metal conductor, and the surface should be smooth, smooth, and free of impurities such as oil. In addition, the distance between the probe and the object to be measured also affects the measurement accuracy and stability, so proper installation and commissioning is required.

In general, the eddy current probe 330103-00-03-10-02-CN is an important industrial measurement and control sensor with a wide range of application prospects and market demands. When using the eddy current probe, it is necessary to understand its working principle, characteristics and use methods to ensure correct and reliable measurement and control of the displacement and vibration parameters of the measured object.
