描述

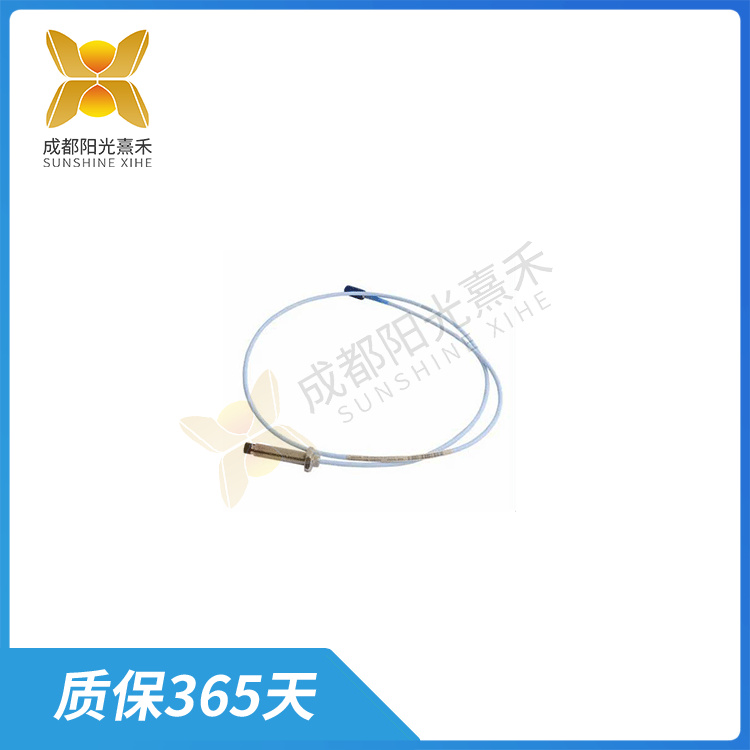

330103-00-17-10-02-00 振動位移傳感器探頭

330103-00-17-10-02-00是一款振動位移傳感器探頭，是一種用于測量物體振動位移的關鍵部件。其核心原理基于電渦量效應，通過非接觸式、高線性度、高分辨力的方式測量被測金屬導體距探頭表面的距離。這種傳感器在實時監測離心泵葉輪的振動位移、捕捉水力激振位移軌跡等應用中發揮著重要作用。

具體來說，330103-00-17-10-02-00能夠靜態或動態地測量位移，其前置器中的高頻振蕩電流通過延伸電纜流入探頭線圈，在探頭頭部的線圈中產生交變的磁場。當被測金屬導體置于這個磁場中或在其中作切割磁力線運動時，導體內將產生呈渦旋狀的感應電流，即電渦量。這個電渦量與被測導體距探頭的距離有關，從而實現了對振動位移的測量。

此外，振動位移傳感器探頭還常用于工業自動化系統中的位移、轉速和鍵相等測量。在位移安裝時，需要依據軸的位置確定測量電壓，并根據公式計算出安裝間隙電壓。對于轉速安裝，需要確保安裝間隙和位置正確，固定線要拉緊，不能有余量。

總的來說，330103-00-17-10-02-00是一種高精度、高可靠性的測量工具，廣泛應用于各種需要精確測量物體振動位移的場合。如需更多關于振動位移傳感器探頭的信息，建議查閱相關領域的專業書籍或咨詢相關技術人員。

330103-00-17-10-02-00 振動位移傳感器探頭

330103-00-17-10-02-00 is a vibration displacement sensor probe, which is a key component for measuring the vibration displacement of objects. The core principle is to measure the distance between the measured metal conductor and the probe surface by means of non-contact, high linearity and high resolution based on the electric vorticity effect. This kind of sensor plays an important role in real-time monitoring the vibration displacement of centrifugal pump impeller and capturing the displacement track of hydraulic excitation.

Specifically, the 330103-00-17-10-02-00 is capable of measuring displacement either statically or dynamically, with a high-frequency oscillating current in its preserver flowing through an extension cable into the probe coil, creating an alternating magnetic field in the coil at the head of the probe. When the measured metal conductor is placed in this magnetic field or the magnetic field line is cut in it, the induced current in the shape of a vortex will be generated in the conductor, that is, the vorticity. This vorticity is related to the distance between the measured conductor and the probe, so that the vibration displacement can be measured.

In addition, vibration displacement sensor probes are commonly used to measure displacement, rotational speed and key equality in industrial automation systems. In displacement installation, it is necessary to determine the measurement voltage according to the position of the shaft, and calculate the installation gap voltage according to the formula. For rotational speed installation, it is necessary to ensure that the installation gap and position are correct, and the fixed line should be tightened without a margin.

In general, 330103-00-17-10-02-00 is a high-precision, high-reliability measurement tool, widely used in a variety of occasions requiring accurate measurement of object vibration displacement. For more information about vibration displacement sensor probes, it is recommended to consult professional books in the relevant field or consult relevant technicians.
