描述

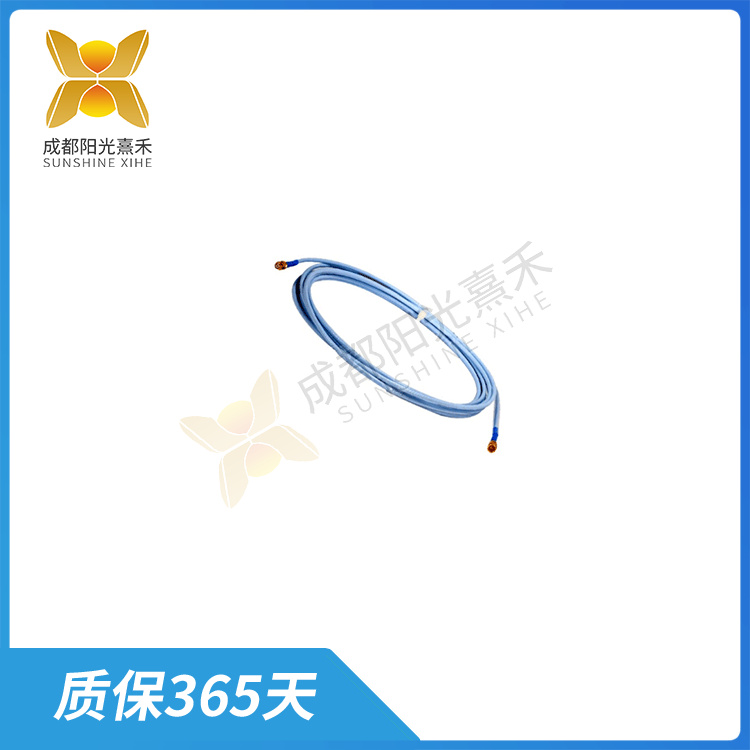

330103-040-00-00 電渦流傳感器配套延伸電纜

330103-040-00-00是一款電渦流傳感器配套，延伸電纜主要用于連接和擴展探頭與前置器之間的距離。這種電纜的選擇和使用對于確保電渦流傳感器的正常工作和精確測量至關重要。

首先，330103-040-00-00的長度應根據實際需求進行選擇，確保延伸電纜長度加上探頭電纜長度與前置器所要求的長度一致。這有助于避免電纜過長或過短導致的測量誤差或其他問題。

其次，對于是否需要采用帶鎧裝的延伸電纜，應根據實際使用環境進行判斷。如果電纜鋪設在無管道保護的環境中，建議選擇帶鎧裝的延伸電纜，以增強電纜的抗折彎和耐磨性能，防止電纜損壞。而在有管道保護的情況下，可以采用不帶鎧裝的延伸電纜。

此外，延伸電纜的鋪設和固定也需要注意。過長的電纜應避免隨意剪斷或加長，而應盤成直徑不小于50mm的圓形并用綁帶扎緊，然后用壓片固定。這樣可以防止電纜因過長而導致的傳感器系統特性變化。

最后，330103-040-00-00的轉接頭防護與絕緣也是不可忽視的。延伸電纜的外表皮和探頭內部結構應已絕緣，但轉接頭金屬表面通常是裸露的。為了避免轉接頭與機殼接觸以及加強其防護性，延伸電纜與探頭電纜相聯的一端應帶有絕緣保護套。

綜上所述，正確選擇和使用電渦流傳感器配套的延伸電纜，對于確保傳感器的正常工作和精確測量具有重要意義。如需更多關于電渦流傳感器延伸電纜的信息，建議查閱相關領域的專業書籍或咨詢相關技術人員。

330103-040-00-00 電渦流傳感器配套延伸電纜

The 330103-040-00-00 is an eddy current sensor package with an extension cable primarily used to connect and extend the distance between the probe and the preprocessor. The selection and use of this cable is essential to ensure the proper operation and accurate measurement of the eddy current sensor.

First of all, the length of 330103-040-00-00 should be selected according to the actual needs to ensure that the extension cable length plus the probe cable length is consistent with the length required by the preprocessor. This helps to avoid measurement errors or other problems caused by too long or too short a cable.

Secondly, for the need to use armored extension cables, should be judged according to the actual use of the environment. If the cables are laid in an environment without pipe protection, it is recommended to use armored extension cables to enhance the bending and wear resistance of the cables and prevent cable damage. In the case of pipeline protection, extension cables without armor can be used.

In addition, the laying and fixing of extension cables also need attention. The excessively long cable should not be cut or extended at will, but should be coiled into a circle with a diameter of not less than 50mm and tied tightly with a binding tape, and then fixed with a press sheet. This prevents changes in the characteristics of the sensor system caused by excessive length of the cable.

Finally, the adapter protection and insulation of 330103-040-00-00 can not be ignored. The outer skin of the extension cable and the internal structure of the probe should be insulated, but the metal surface of the adapter is usually exposed. In order to avoid contact between the adapter and the housing and enhance its protection, the end of the extension cable connected to the probe cable should be equipped with an insulating protective sleeve.

To sum up, the correct selection and use of the extension cable supporting the eddy current sensor is of great significance to ensure the normal operation and accurate measurement of the sensor. For more information about eddy current sensor extension cables, it is recommended to consult professional books in the relevant field or consult relevant technicians.
