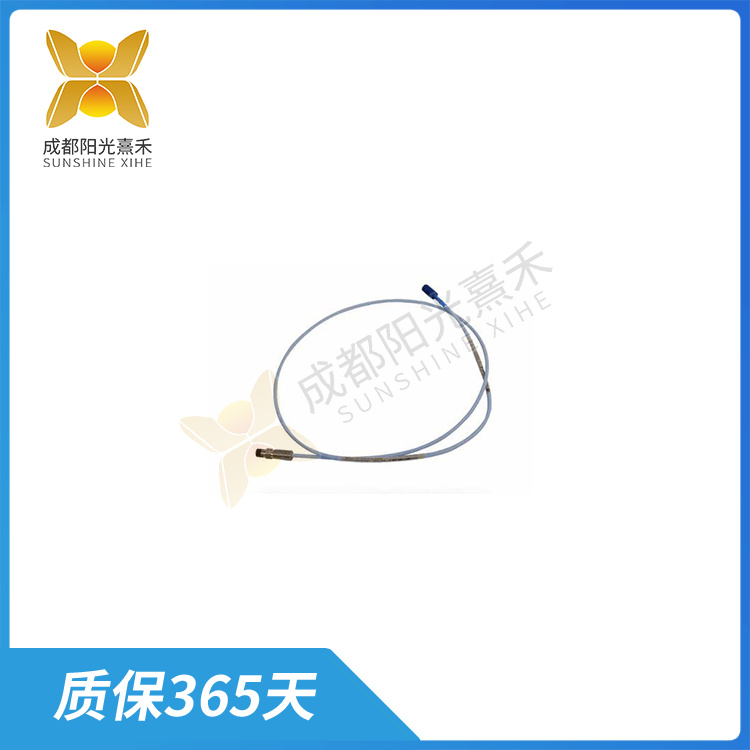

330106-05-30-05-02-00 基于電渦流效應工作的位移測量裝置

330106-05-30-05-02-00是一種基于電渦流效應工作的位移測量裝置。它利用金屬導體在變化的磁場中產生感應電流（即電渦流）的原理，測量金屬導體與探頭之間的距離變化。電渦流探頭廣泛應用于振動監測、位移測量、轉速測量等領域。

電渦流探頭通常由探頭線圈、前置放大器、電纜和信號處理模塊等組成。探頭線圈是電渦流傳感器的核心部件，它產生高頻磁場并檢測由被測金屬導體產生的電渦流。前置放大器用于放大探頭線圈檢測到的電渦流信號，并將其轉換為標準電壓或電流信號。電纜用于將前置放大器與信號處理模塊連接起來，傳輸測量信號。

電渦流探頭的測量精度和穩定性受多種因素影響，330106-05-30-05-02-00包括被測金屬導體的電導率、磁導率、幾何形狀和尺寸，以及探頭線圈的幾何形狀、尺寸和電流頻率等。因此，在選擇和使用電渦流探頭時，需要根據具體的應用需求和被測對象的特性進行綜合考慮。

此外，電渦流探頭的安裝和校準也是保證測量精度的關鍵步驟。正確的安裝位置和方式可以確保探頭與被測對象之間的間隙穩定且可重復，從而提高測量結果的準確性和可靠性。同時，定期的校準和維護也是保證探頭長期穩定運行的重要措施。

330106-05-30-05-02-00 基于電渦流效應工作的位移測量裝置

330106-05-30-05-02-00 is a displacement measuring device based on eddy current effect. It uses the principle that a metal conductor generates an induced current (i.e. eddy current) in a changing magnetic field to measure the change in distance between the metal conductor and the probe. Eddy current probes are widely used in vibration monitoring, displacement measurement, speed measurement and other fields.

The eddy current probe is usually composed of probe coil, preamplifier, cable and signal processing module. The probe coil is the core component of eddy current sensor, which generates high-frequency magnetic field and detects eddy current generated by the metal conductor under test. The preamplifier is used to amplify the eddy current signal detected by the probe coil and convert it into a standard voltage or current signal. The cable is used to connect the preamplifier to the signal processing module to transmit the measurement signal.

The measurement accuracy and stability of eddy current probes are affected by a variety of factors, 330106-05-30-05-02-00 including the conductivity, permeability, geometry and size of the metal conductor being measured, as well as the geometry, size and current frequency of the probe coil. Therefore, when selecting and using the eddy current probe, it is necessary to comprehensively consider the specific application requirements and the characteristics of the tested object.

In addition, the installation and calibration of the eddy current probe is also a key step to ensure the measurement accuracy. The correct installation position and method ensures that the gap between the probe and the measured object is stable and repeatable, thus improving the accuracy and reliability of the measurement results. At the same time, regular calibration and maintenance is also an important measure to ensure the long-term stable operation of the probe.
