330130-045-00-00? ? XL標準加長電纜
配置:
?電纜長度:4.5米(14.8英尺)
?連接器保護和電纜選項:標準電纜
?機構批準選項:不需要
特點:
理想的壓縮系統，速度測量，和流體膜軸承機
擴展溫度范圍應用
單元和布線的完全互換性
向后兼容其他非3300 XL系列傳感器系統組件
Bently Nevada 3300 XL 8mm接近傳感器系統由一個3300 XL 8mm探頭，一個3300 XL延長電纜和一個3300 XL Proximitor傳感器組成。該系統提供的輸出電壓與探頭尖端與觀察到的導電表面之間的距離成正比，可以測量靜態(位置)和動態(振動)值。該系統的主要應用是流體膜軸承機械的振動和位置測量，以及Keyphasor參考和速度測量。標準的3300 XL 8毫米5米系統在機械配置、線性范圍、精度和溫度穩定性方面也完全符合美國石油協會(API) 670標準(第4版)。所有3300 XL 8mm近距離傳感器系統都提供這種級別的性能，并支持探頭，延長電纜和Proximitor傳感器的完全互換性，無需匹配或臺架校準單個組件。
每個3300 XL 8毫米傳感器系統組件向后兼容，可與其他非XL 3300系列5毫米和8毫米傳感器系統組件互換。這種兼容性包括3300 5毫米探頭，用于8毫米探頭對可用安裝空間太大的應用。
3300 XL Proximitor傳感器部件編號細目(不包括在從Artisan出售時，除非指定)

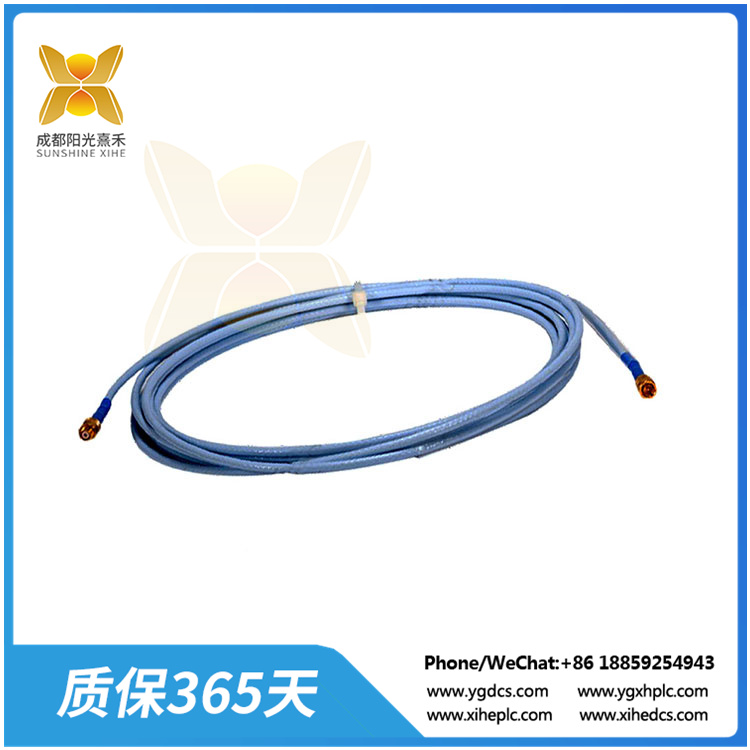

330130-045-00-00? ? XL標準加長電纜
Configuration:
? Cable Length: 4.5 metres (14.8 feet)
? Connector Protector and Cable Option: Standard Cable
? Agency Approval Option: Not Required
Features:
Ideal for Compression Systems, Speed Measurements, and Fluid-Film Bearing Machines
Extended Temperature Range Applications
Complete Interchangeability of Units and Cabling
Backwards Compatible with Other Non-3300 XL Series Transducer System Components
The Bently Nevada 3300 XL 8mm Proximity Transducer System consists of one 3300 XL 8mm probe, one 3300 XL extension cable, and one 3300 XL Proximitor Sensor. The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard (4th Edition) for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
Each 3300 XL 8 mm Transducer System component is backward-compatible and interchangeable with other non-XL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.
3300 XL Proximitor Sensor Part Number Breakdown (Not included when sold from Artisan unless specified)
| F3YD32-1P橫河晶體管輸出模塊 | Bently內華達兩線速度地震探測傳感器 |
| F3YD64-1P橫河晶體管輸出模塊 | Bently內華達州兩線速度地震探測傳感器 |
| F3YP12-0V橫河晶體管輸出模塊 | Bently內華達兩線速度地震探測傳感器 |
| 20P41AD330RA0NNN | VT2000-52-A力士樂電子放大器 |
| 1769-SDN Allen-Bradley DeviceNet通信模塊 | VT-VSPA1-11-B力士樂電子放大器 |
| 1734-CTM艾倫-布拉德利點I/O終端模塊 | 力士樂CKK & CKR緊湊型模塊 |
| 1769-L18ER-BB1B艾倫布拉德利CompactLogix 5370 L1控制器 | 力士樂CKK & CKR緊湊型模塊 |
| Allen-Bradley十六(16)通道24VDC分立輸入模塊 | 330703- 050-10-02-00 Bently內華達州3300 XL 11毫米接近探頭 |
| HD22010-3 EMERSON系列充電模塊 | 330103-00-10-02-00 Bently內華達州3300 XL 8毫米接近探頭 |
| 1794-PS13 Allen-Bradley Flex I/O電源 | Bently Nevada 3300 XL 8毫米接近探頭，公制 |
| PPD539A102 ABB AC 800PEC控制裝置 | 33086-10-01 00 Bently Nevada 3300 XL 50毫米近距離探頭 |
