描述

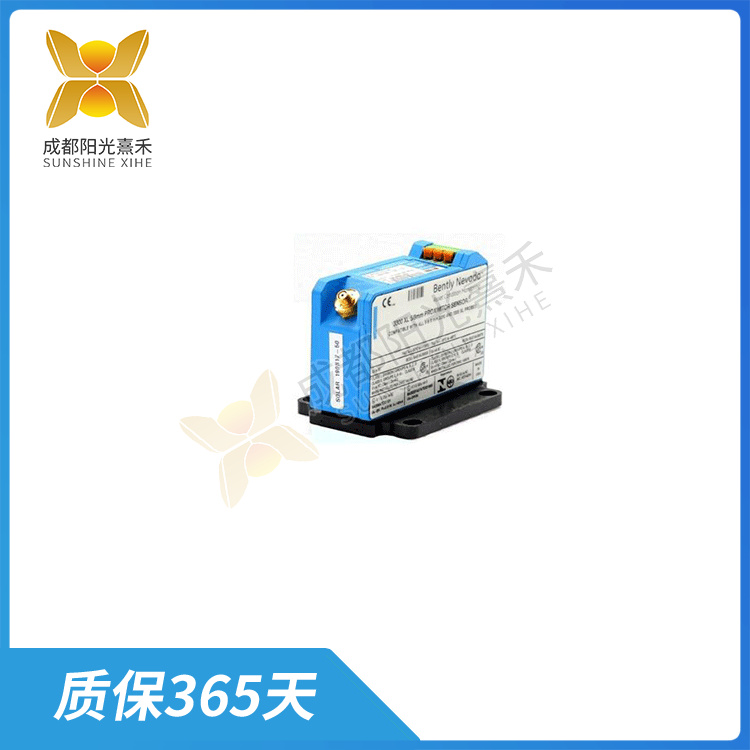

330196-05-30-50-05 基于電渦流效應進行非接觸測量的傳感器

電渦流傳感器是一種基于電渦流效應進行非接觸測量的傳感器。330196-05-30-50-05通常由探頭和測量電路組成，探頭部分包含一個或多個電渦流線圈，用于在被測金屬導體上產生渦流并感應其變化。

電渦流傳感器的工作原理是，當探頭靠近金屬導體時，會在金屬導體表面產生渦流。這個渦流與探頭中的電渦流線圈產生交互作用，導致線圈的電感量、阻抗等參數發生變化。通過測量這些參數的變化，可以推斷出金屬導體與探頭之間的距離、位移、振動等信息。

電渦流傳感器具有非接觸測量、高靈敏度、高分辨率、長期工作可靠性好、抗干擾能力強等優點。因此，330196-05-30-50-05廣泛應用于各種工業領域，如大型旋轉機械的軸位移、軸振動、軸轉速等參數的長期實時監測，以及材料表面缺陷、厚度、硬度等特性的無損檢測。

需要注意的是，330196-05-30-50-05電渦流傳感器只能用于測量金屬導體，且受金屬導體的電導率、磁導率、線圈的幾何形狀和尺寸、電流頻率等參數的影響。此外，在安裝和使用電渦流傳感器時，需要保證探頭與金屬導體之間的距離適當，以避免因距離過近或過遠而導致的測量誤差。

總的來說，電渦流傳感器330196-05-30-50-05是一種非常重要的非接觸測量工具，它在許多工業領域中都有廣泛的應用。通過了解電渦流傳感器的工作原理和優缺點，可以更好地選擇和使用它，從而實現對各種工業參數的精確測量和監測。

330196-05-30-50-05 基于電渦流效應進行非接觸測量的傳感器

Eddy current sensor is a kind of non-contact measurement sensor based on eddy current effect. 330196-05-30-50-05 Usually consists of a probe and a measurement circuit, the probe part contains one or more eddy current coils for generating eddy current on the metal conductor under test and sensing its changes.

Eddy current sensors work by creating eddy currents on the surface of a metal conductor when the probe is near the conductor. The eddy current interacts with the eddy current coil in the probe, causing the inductance and impedance of the coil to change. By measuring the change of these parameters, the distance, displacement, vibration and other information between the metal conductor and the probe can be inferred.

Eddy current sensor has the advantages of non-contact measurement, high sensitivity, high resolution, good long-term reliability and strong anti-interference ability. Therefore, 330196-05-30-50-05 is widely used in various industrial fields, such as long-term real-time monitoring of parameters such as axial displacement, axial vibration, and axial speed of large rotating machinery, as well as non-destructive testing of material surface defects, thickness, hardness and other characteristics.

It should be noted that the 330196-05-30-50-05 eddy current sensor can only be used to measure metal conductors, and is affected by the conductivity, permeability, coil geometry and size, current frequency and other parameters of the metal conductor. In addition, when installing and using the eddy current sensor, it is necessary to ensure that the distance between the probe and the metal conductor is appropriate to avoid measurement errors caused by too close or too far.

In general, eddy current sensor 330196-05-30-50-05 is a very important non-contact measurement tool, which has a wide range of applications in many industrial fields. By understanding the working principle and advantages and disadvantages of eddy current sensor, it can be better selected and used, so as to achieve accurate measurement and monitoring of various industrial parameters.
