330780-91-00 8mm接近傳感器系統
330780-91-00 8mm接近傳感器系統包括:
一個330780-91-00毫米探頭，一個330780-91-00延長線1，和一個330780-91-00近端*傳感器2。
該系統提供的輸出電壓與探頭尖端與觀察到的導電表面之間的距離成正比，可以測量靜態(位置)和動態(振動)值。該系統的主要應用是振動和位置測量的流體膜軸承機器，以及關鍵相量*參考和速度測量3。
330780-91-00 8毫米系統在我們的渦流接近傳感器系統中提供了最先進的性能。標準3300 XL 8毫米5米系統也完全符合美國石油協會(API) 670標準(第4版)的機械配置，線性范圍，精度和溫度穩定性。所有3300 XL 8毫米近距離傳感器系統都提供這種性能水平，并支持探頭、延長電纜和Proximitor傳感器的完全互換性，無需匹配或工作臺校準單個組件。
每個330780-91-00 8mm傳感器系統組件向后兼容和可互換4與其他非xl 3300系列5mm和8mm傳感器系統組件5。這種兼容性包括3300 5毫米探頭，適用于8毫米探頭對可用安裝空間太大的應用6,7。
比鄰器傳感器330780-91-00比鄰器傳感器與以前的設計相比有許多改進。它的物理包裝允許您在高密度的DINrail安裝中使用它。您還可以將傳感器安裝在傳統的面板安裝配置中，其中它與舊的proximitor傳感器設計共享相同的4孔安裝“足跡”。安裝基地的任何一個選項提供電氣隔離，并消除了需要單獨的隔離板。3300XL Proximitor傳感器對射頻干擾具有高度免疫力，可以將其安裝在玻璃纖維外殼中，而不會對附近的射頻信號產生不利影響。330780-91-00 Proximitor Sensor改進的RFI/EMI抗擾性滿足歐洲CE標志認證，無需特殊屏蔽導體金屬外殼，從而降低了安裝成本和復雜性。
330780-91-00 SpringLoc端子條不需要特殊的安裝工具，通過消除可以松動的螺桿式夾緊機構，可以實現更快，更堅固的現場接線連接。
330780-91-00 8mm接近傳感器系統
DescriptionThe 330780-91-00 8 mm Proximity Transducer System consists of:
? One 330780-91-00 mm probe,? One 330780-91-00 extension cable1, and? One 330780-91-00 Proximitor* Sensor2.
The system provides an output voltage that is directly proportional to thedistance between the probe tip and the observed conductive surface and canmeasure both static (position) and dynamic (vibration) values. The system’sprimary applications are vibration and position measurements on fluid-filmbearing machines, as well as Keyphasor* reference and speed measurements3.
The 330780-91-00 8 mm system delivers the most advanced performance in our eddycurrent proximity transducer systems. The standard 3300 XL 8 mm 5-metresystem also fully complies with the American Petroleum Institute’s (API) 670Standard (4th Edition) for mechanical configuration, linear range, accuracy, andtemperature stability. All 3300 XL 8 mm proximity transducer systems providethis level of performance and support complete interchangeability of probes,extension cables, and Proximitor sensors, eliminating the need to match orbench calibrate individual components.
Each 330780-91-00 8 mm Transducer System component is backward-compatible andinterchangeable4 with other non-XL 3300 series 5 mm and 8 mm transducersystem components5. This compatibility includes the 3300 5 mm probe, forapplications in which an 8 mm probe is too large for the available mountingspace6,7.

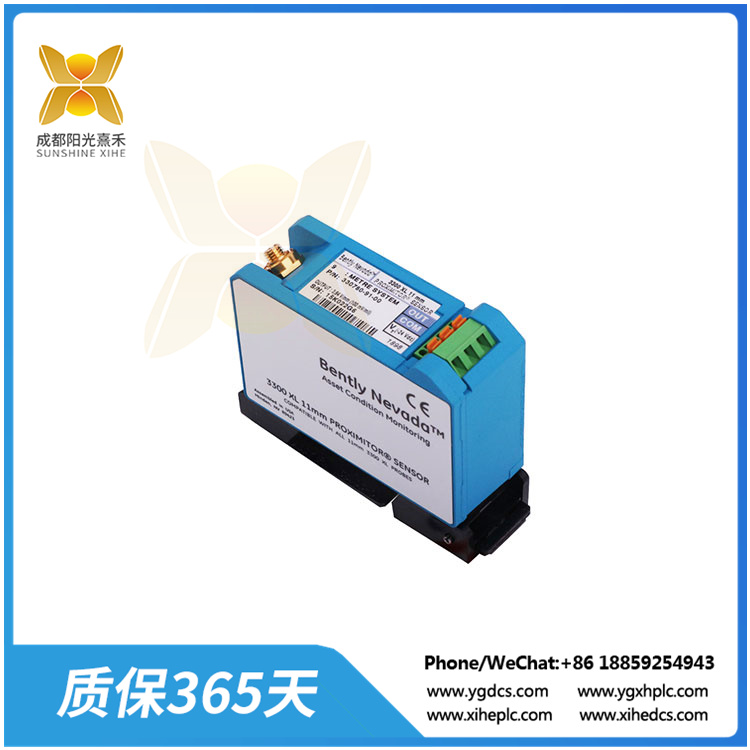

Proximitor SensorThe 330780-91-00 Proximitor Sensor incorporates numerous improvements overprevious designs. Its physical packaging allows you to use it in high-density DINrail installations. You can also mount the sensor in a traditional panel mountconfiguration, where it shares an identical 4-hole mounting “footprint” with olderProximitor Sensor designs. The mounting base for either option provideselectrical isolation and eliminates the need for separate isolator plates. The 3300XL Proximitor Sensor is highly immune to radio frequency interference, allowingyou to install it in fiberglass housings without adverse effects from nearby radiofrequency signals. The 330780-91-00 Proximitor Sensor’s improved RFI/EMI immunitysatisfies European CE mark approvals without requiring special shielded conduitor metallic housings, resulting in lower installation costs and complexity.
The 330780-91-00 SpringLoc terminal strips require no special installation tools andfacilitate faster, more robust field wiring connections by eliminating screw-typeclamping mechanisms that can loosen.
