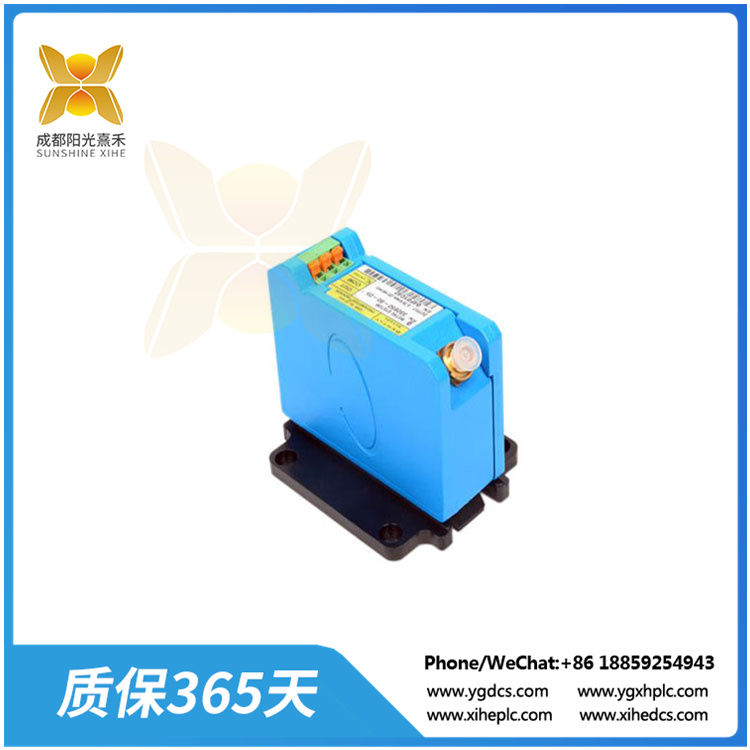

330850-90-05 25毫米傳感器系統
330850-90-05 25毫米傳感器系統由一個單獨的25毫米探頭，一根延長電纜和一個330850-90-05 25毫米proximitor傳感器組成。0.787 V/mm (20 mV/mil)輸出使該系統的線性范圍為12.7 mm (500 mil)。基于此線性范圍，330850-90-05 25毫米傳感器系統適用于測量由渦輪轉子和機器定子(殼體)之間的增長率差異引起的中型到大型蒸汽渦輪發電機的微分膨脹(DE)。
差速膨脹測量是由兩個接近傳感器觀察距推力軸承一定距離的環或斜坡進行的。典型的傳感器安裝方式有:
兩個傳感器觀察一個項圈的同一側。
兩個互補的輸入傳感器觀察一個項圈的相對兩側，有效地加倍可測量DE范圍。
兩個換能器，至少有一個換能器觀察轉子上的斜坡，第二個換能器觀察單獨的斜坡或轉子上的不同位置，以補償徑向運動。這種安排給測量增加了一些誤差，但可以測量比互補測量更長的總DE距離。
選擇安裝方法的標準是可用目標的大小，轉子軸向運動的預期量和機器中存在的DE目標的類型(領與坡道)。如果有足夠的接箍高度，兩個傳感器觀察一個接箍的同一側是首選配置。這兩個傳感器提供冗余測量。
330850-90-05 25毫米傳感器系統
The 330850-90-05 25 mm Transducer System consists of a separate25 mm probe, an extension cable, and a 330850-90-05 25 mmProximitor Sensor.? The 0.787 V/mm (20 mV/mil) output givesthis system a linear range of 12.7 mm (500 mils).? Based onthis linear range, the 330850-90-05 25 mm Transducer System issuitable for measuring differential expansion (DE) on midsize to large steam turbine generators caused by thedifference in growth rates between the turbine rotor and themachine stator (casing).
The Differential Expansion measurement is made by twoproximity transducers observing a collar or ramp somedistance from the thrust bearing.? Typical transducermounting arrangements are:
l Two transducers observing the same side of a collar.
l Two complementary input transducers observingopposite sides of a collar, effectively doubling themeasurable DE range.
Two transducers with at least one transducer viewing a rampon a rotor and the second transducer viewing either aseparate ramp or a different location on the rotor tocompensate for radial movement.? This arrangement addssome error to the measurement, but can measure a longertotal DE distance than the complementary measurement.
The criteria for selecting a mounting method are the size ofthe available target, the expected amount of rotor axialmovement and the type of DE target that exists in themachine (collar versus ramp).? If sufficient collar height isavailable, two transducers observing the same side of a collar is the preferred configuration.? These twotransducers provide redundant measurements.
