描述

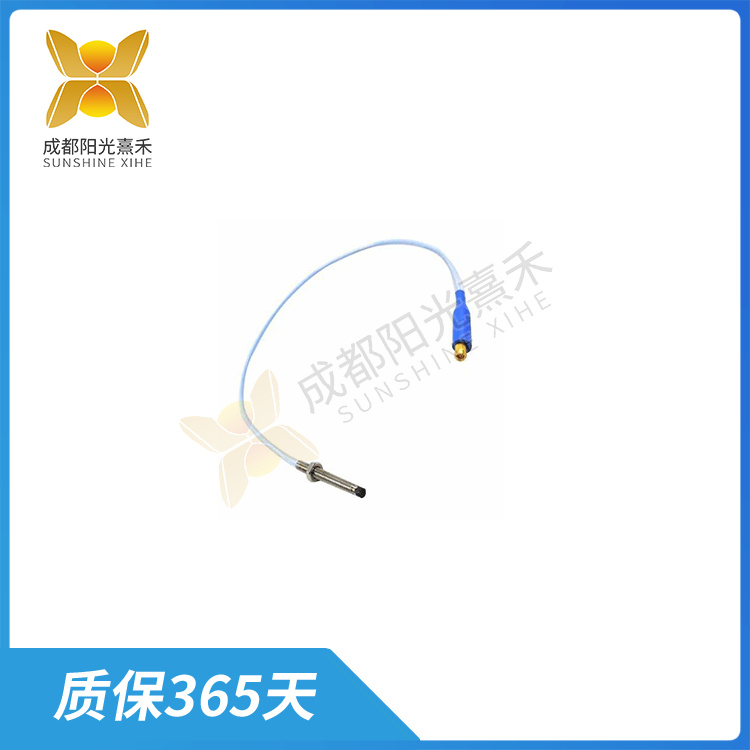

330901-00-90-10-02-05 前置器則是一個信號轉換裝置

電渦流探頭是一種基于電渦流效應工作的傳感器探頭。330901-00-90-10-02-05的工作原理是：當探頭的頭部靠近導體時，會在導體表面產生電渦流。這個電渦流會產生一個反向的磁場，這個反向磁場與探頭的原始磁場相互作用，從而改變探頭頭部的線圈阻抗。通過測量這個阻抗的變化，就可以非接觸地測量導體與探頭之間的距離。

電渦流探頭通常用于測量位移、振動等參數，也可以用于金屬材料的無損檢測。它的優點包括非接觸測量、高靈敏度、高分辨率、快速響應等。然而，電渦流探頭也有一些限制，例如它只能用于測量金屬導體，且受溫度、電導率、磁導率等因素的影響。

電渦流探頭通常由傳感器、前置器和電纜三部分組成。傳感器是探頭的核心部分，330901-00-90-10-02-05由繞在非金屬骨架上的矩形截面線圈組成。 ，它將傳感器產生的電渦流信號轉換為標準電壓信號。電纜則用于連接傳感器和前置器，傳輸測量信號。

在安裝電渦流探頭時，需要注意探頭與被測物體之間的距離和角度，以及探頭的固定方式。一般來說，探頭與被測物體之間的距離應該在線性范圍內，以保證測量的準確性和穩定性。同時，探頭應該固定在一個穩定的位置，避免由于振動或溫度變化等因素引起的誤差。

總之，電渦流探頭是一種基于電渦流效應工作的傳感器探頭，330901-00-90-10-02-05具有非接觸測量、高靈敏度、高分辨率等優點，廣泛應用于位移、振動等參數的測量以及金屬材料的無損檢測。

330901-00-90-10-02-05 前置器則是一個信號轉換裝置

Eddy current probe is a kind of sensor probe based on eddy current effect. The 330901-00-90-10-02-05 works by creating an electrical eddy on the surface of the conductor when the head of the probe is close to the conductor. This eddy creates a reverse magnetic field that interacts with the probe’s original magnetic field to change the coil impedance at the probe head. By measuring this impedance change, the distance between the conductor and the probe can be measured contactless.

Eddy current probes are usually used to measure displacement, vibration and other parameters, and can also be used for non-destructive testing of metal materials. Its advantages include non-contact measurement, high sensitivity, high resolution, fast response, etc. However, the eddy current probe also has some limitations, such as it can only be used to measure metallic conductors and is affected by temperature, conductivity, permeability and other factors.

The eddy current probe is usually composed of a sensor, a preprocessor and a cable. The sensor is the core part of the probe, 330901-00-90-10-02-05 consists of a rectangular coil wound around a non-metal skeleton. The preprocessor is a signal conversion device, which converts the eddy current signal generated by the sensor into a standard voltage signal. Cables are used to connect sensors and precursors to transmit measurement signals.

When installing the eddy current probe, it is necessary to pay attention to the distance and Angle between the probe and the object to be measured, as well as the way the probe is fixed. In general, the distance between the probe and the object to be measured should be in a linear range to ensure the accuracy and stability of the measurement. At the same time, the probe should be fixed in a stable position to avoid errors caused by factors such as vibration or temperature changes.

In short, the eddy current probe is a sensor probe based on the eddy current effect, 330901-00-90-10-02-05 has the advantages of non-contact measurement, high sensitivity, high resolution, etc., widely used in displacement, vibration and other parameters measurement and non-destructive testing of metal materials.
