描述

330930-065-01-05 NSv延長線(6.5米)

特點:
適用于有嚴格安裝要求的場合
取代3300 RAM傳感器系統和3000系列或7000系列190傳感器系統
平均比例系數7.87 V/mm (200mv /mil)
Bently Nevada 3300 XL NSv接近傳感器系統適用于離心式空氣壓縮機，制冷壓縮機，過程氣體壓縮機和其他安裝要求嚴格的機器。3300 XL NSv接近傳感器系統包括:
3300 NSv探頭
?3300 NSv延長線
?3300 XL NSv Proximitor傳感器

3300 XL NSv換能器系統的主要用途是用于反孔，側視或后視鏡限制使用標準本利內華達3300和3300 XL 5和8毫米換能器系統的區域。它也是小型目標應用的理想選擇，例如測量小于51毫米(2英寸)的軸上的徑向振動或小于15毫米(0.6英寸)的平面目標上的軸向位置。它主要用于以下應用在流體膜軸承機上，其中存在小軸或縮小的側視圖:
?徑向振動和徑向位置測量
?軸向(推力)位置測量
?轉速表和零速度測量
?相位參考(Keyphasor)信號。

3300 XL NSv換能器系統的設計使其能夠取代3300 RAM換能器系統和3000系列或7000系列190換能器系統。從3300 RAM系統升級到3300 XL NSv系統可以使用現有的探頭、延長電纜和帶有3300 XL NSv Proximitor傳感器的監控系統。從3000系列或7000系列傳感器系統升級，必須用NSv組件替換探頭、延長線和Proximitor傳感器。

3300 XL NSv換能器系統的平均比例系數為7.87 V/mm (200 mV/mil)，這是渦流換能器最常見的輸出。其增強的側視圖和小目標特性使其比Bently Nevada 3300 xl系列5和8毫米傳感器系統具有更短的線性范圍。1.5 mm (60 mils)的線性范圍超過了3000系列190傳感器系統的線性范圍。

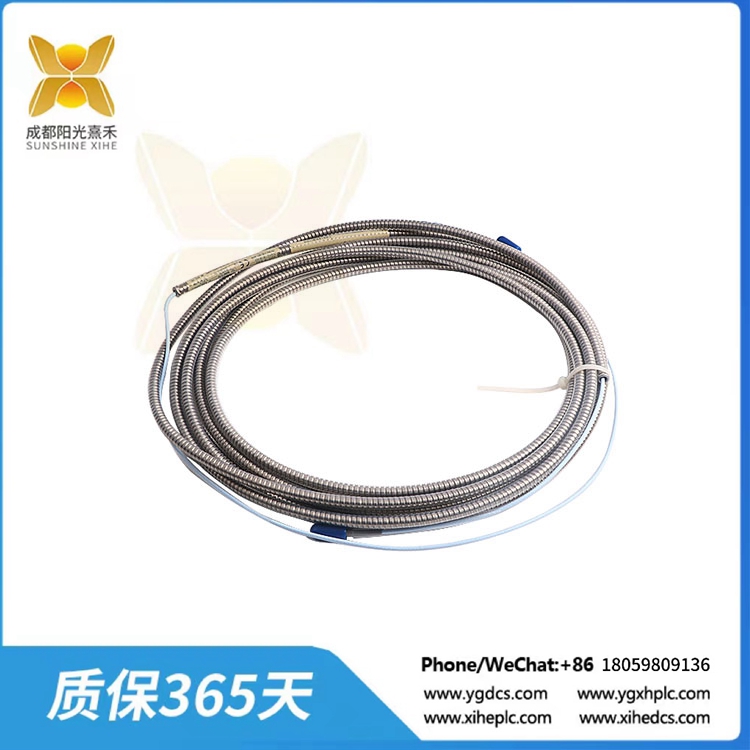

330930-065-01-05 NSv延長線(6.5米)

Features:
For use in Tight Installation Requirements
Replaces 3300 RAM Transducer Systems and 3000-Series or 7000-Series 190 Transducer System
Average Scale Factor of 7.87 V/mm (200 mV/mil)
The Bently Nevada 3300 XL NSv Proximity Transducer System is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors and other machines with tight installation requirements. The 3300 XL NSv Proximity Transducer System consists of:
? a 3300 NSv probe
? a 3300 NSv extension cable
? a 3300 XL NSv Proximitor Sensor.

The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). It is primarily used in the following applications on fluid-filmed bearing machines where a small shaft or reduced side-view is present:
? Radial vibration and radial position measurements
? Axial (thrust) position measurements
? Tachometer and zero speed measurements
? Phase reference (Keyphasor) signals.

The 3300 XL NSv Transducer System design allows it to replace both the 3300 RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer System. Upgrades from the 3300 RAM system to the 3300 XL NSv system may use the existing probe, extension cable, and monitoring system with 3300 XL NSv Proximitor Sensor. Upgrades from the 3000-series or 7000-series Transducer System must replace the probe, extension cable and Proximitor Sensor with NSv components.

The 3300 XL NSv Transducer System has an Average Scale Factor of 7.87 V/mm (200 mV/mil), which is the most common output for eddy current transducers. Its enhanced side-view and small target characteristics give it a shorter linear range than the Bently Nevada 3300 XL-series 5 and 8 mm Transducer System. With The 1.5 mm (60 mils) of linear range exceeds the linear range of the 3000-series 190 Transducer System.
