描述

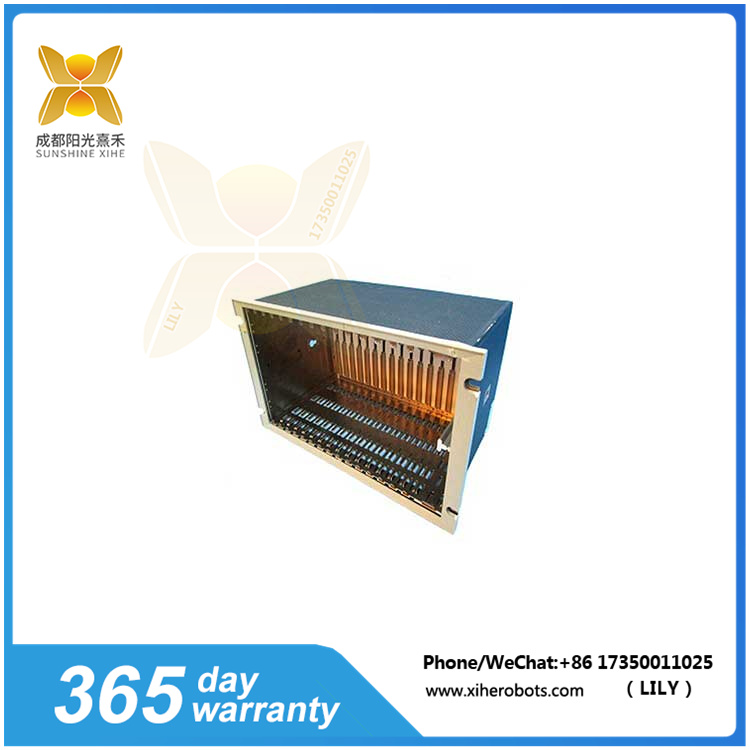

產品細節說明：3500/05-02-04-00-00-00 BENTLY 儀表框架

1. 模塊化設計：
   • 該儀表框架具有高度模塊化的設計，包括儀表框架、電源、框架接口模塊、鍵相器模塊、監測器模塊等多種模塊。
   • 這種設計使得產品易于安裝、配置和維護。
2. 監測功能：
   • 主要用于監測旋轉機械的振動、溫度、速度和其他關鍵參數。
   • 通過振動監測模塊、溫度監測模塊和速度監測模塊，可以實時監測設備的運行狀態，及時發現潛在的故障和異常情況。
3. 數據處理與傳輸：
   • 具備數據采集和傳輸功能，可以將振動、溫度、速度等數據傳輸?shù)街醒霐?shù)據采集系統。
   • 通過改進集成到工廠控制計算機的通信網關，支持多個協議時間同步振動和過程信息，提高數據傳輸?shù)男屎蜏?zhǔn)確性。
4. 報警和通知：
   • 當檢測到異常時，會觸發報警功能，并向運維人員發送通知，以便及時采取措施，避免設備故障和停機。
5. 節省成本：
   • 系統提供了多種節省成本的功能，如降低布線成本、提高空間利用、方便配置、減少備件和提高可服務性等。
6. 靈敏度與頻率響應：
   • 具有較高的靈敏度和頻率響應范圍，能夠準確監測設備的運行狀態。例如，在100 Hz(6,000 cpm)時，其靈敏度為20mV/mm/s(500 mV/in/s)±5%，頻率響應范圍從小工作頻率到1 kHz(60,000 cpm)。

產品詳情參數 ：3500/05-02-04-00-00-00 BENTLY 儀表框架

• 框架尺寸：
  • 全尺寸框架：19英寸EIA框架，有14個可用模塊插槽。
  • 迷你型框架：12英寸框架，有7個可用模塊插槽。
• 安裝選項：
  • 面板安裝：將框架安裝于面板上的矩形開孔中。
  • 框架安裝：將框架安裝于19英寸EIA導軌中。
  • 壁板安裝（僅限全尺寸框架）：將框架安裝于墻壁或無法從背面連接的面板中。

3500/05-02-04-00-00-00 BENTLY應用領域：

Bently 3500/05-02-04-00-00-00 儀表框架廣泛應用于各種行業中旋轉設備的機械狀態監控，如石油和天然氣生產、水力發電、風能、碳?xì)浠衔锾幚怼l(fā)電、紙漿和造紙、采礦、水和廢水處理等。它可以在需要連續、在線監測的機械保護應用中發揮重要作用，如油膜軸承機械的振動和位移測量，以及鍵相位和轉速測量等。Bently 3500/05-02-04-00-00-00 儀表框架是一款功能強大、易于安裝和維護的振動監測系統組件，廣泛應用于各種工業領域的旋轉設備監測中。

Product Details: 3500/05-02-04-00-00-00 BENTLY Instrument Frame
Modular design:
This instrument framework has a highly modular design, including various modules such as instrument framework, power supply, framework interface module, Keyphasor module, monitor module, etc.
This design makes the product easy to install, configure, and maintain.
Monitoring function:
Mainly used to monitor the vibration, temperature, speed, and other key parameters of rotating machinery.
By using vibration monitoring module, temperature monitoring module, and speed monitoring module, the operating status of the equipment can be monitored in real time, and potential faults and abnormal situations can be detected in a timely manner.
Data processing and transmission:
Equipped with data acquisition and transmission functions, it can transmit vibration, temperature, speed and other data to the central data acquisition system.
By improving the communication gateway integrated into the factory control computer, it supports multiple protocol time synchronization of vibration and process information, improving the efficiency and accuracy of data transmission.
Alarm and notification:
When an abnormality is detected, the alarm function will be triggered and a notification will be sent to the operation and maintenance personnel to take timely measures to avoid equipment failure and shutdown.
Cost savings:
The system provides various cost saving features, such as reducing wiring costs, improving space utilization, facilitating configuration, reducing spare parts, and enhancing serviceability.
Sensitivity and frequency response:
It has high sensitivity and frequency response range, and can accurately monitor the operating status of equipment. For example, at 100 Hz (6000 cpm), its sensitivity is 20mV/mm/s (500 mV/in/s) ± 5%, and the frequency response range is from the operating frequency to 1 kHz (60000 cpm).
Product details and parameters: 3500/05-02-04-00-00-00 BENTLY instrument frame
Frame size:
Full size frame: 19 inch EIA frame with 14 available module slots.
Mini frame: 12 inch frame with 7 available module slots.
Installation options:
Panel installation: Install the frame into the rectangular opening on the panel.
Frame installation: Install the frame into a 19 inch EIA rail.
Wall panel installation (full-size frame only): Install the frame into a wall or panel that cannot be connected from the back.

3500/05-02-04-00-00-00 BENTLY Application Fields:

The Bently 3500/05-02-04-00-00 instrument framework is widely used for mechanical condition monitoring of rotating equipment in various industries, such as oil and gas production, hydropower, wind energy, hydrocarbon treatment, power generation, pulp and paper, mining, water and wastewater treatment, etc. It can play an important role in mechanical protection applications that require continuous and online monitoring, such as vibration and displacement measurement of oil film bearing machinery, as well as key phase and speed measurement. Bently 3500/05-02-04-00-00 Instrument Frame is a powerful, easy to install and maintain vibration monitoring system component widely used in rotating equipment monitoring in various industrial fields.
