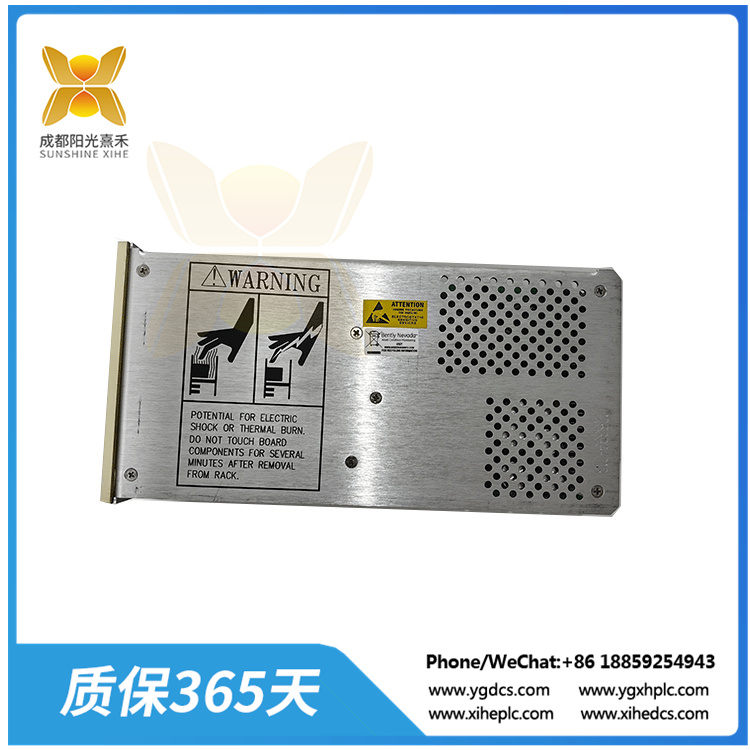

3500/15 127610-01 BENTLY 交流電源模塊和直流電源模塊

3500/15 127610-01 BENTLY 交流電源模塊和直流電源模塊

  • 直流輸出穩定性：±1%
  • 過載保護：120%額定電流，自動保護
  • 短路保護：自動保護
  • 輸入輸出絕緣電阻：500 VDC，大于10 MΩ
分類：

描述

產品細節說明：3500/15 127610-01 BENTLY 交流電源模塊和直流電源模塊

  1. BENTLY 3500/15 127610-01交流電源模塊是Bently Nevada公司開發的一款專為3500系列組件設計的電源模塊。
  2. 它是一個半高模塊，必須安裝在機架左側專門設計的插槽中。
  3. 支持各種輸入電壓，如高壓交流電（220 Vac標稱值，175至264 Vac rms）和低壓交流電（110 Vac標稱值，85至132 Vac rms）。
  4. 輸入頻率范圍為47至63 Hz。
  5. 接受各種輸入電壓并將其轉換為其他3500模塊可以使用的電壓。
  6. 在雙電源配置中，可以作為主電源或備用電源使用。
  7. 機架可以容納一個或兩個電源（交流和/或直流的任意組合）。
  8. 當機架中安裝兩個電源時，下部電源作為主電源，上部電源作為備用電源。
  9. 移除或插入任一電源模塊都不會中斷機架運行（僅當安裝了第二個電源時）。

3500/15 127610-01

產品詳情參數 ：3500/15 127610-01 BENTLY 交流電源模塊和直流電源模塊

  1. 電源輸入：
    • 電壓范圍：100-240 VAC
    • 頻率：50/60 Hz
    • 電流：2 A
  2. 電源輸出：
    • 直流電壓：24 VDC
    • 直流電流：5.5 A
  3. 尺寸與重量：
    • 尺寸（毫米）：168mm x 98mm x 36mm
    • 尺寸（英寸）：3.35 x 9.5 x 10.25 英寸
    • 重量：約1kg（或4.0磅）
  4. 工作環境：
    • 工作溫度：0℃到60℃

3500/15 127610-01? 應用領域：

  • 該模塊廣泛應用于石油、化工、電力、制藥、食品等行業的工業控制系統中，滿足各種振動監測系統中傳感器和監測設備的電源需求。

BENTLY 3500/15 127610-01交流電源模塊和直流電源模塊共同構成了3500系列組件的電源解決方案。它們?yōu)橄到y(tǒng)提供穩定、可靠的電力支持，確保系統在各種工作條件下都能正常運行。通過靈活的電源配置（單電源或雙電源），這些電源模塊能夠滿足不同應用場景的需求，提高系統的可靠性和可用性。

Product details: 3500/15 127610-01 BENTLY AC power module and DC power module
BENTLY 3500/15 127610-01 AC Power Module is a power module developed by Bently Nevada specifically designed for 3500 series components.
It is a half height module that must be installed in a specially designed slot on the left side of the rack.
Supports various input voltages, such as high voltage AC (220 Vac nominal, 175 to 264 Vac rms) and low voltage AC (110 Vac nominal, 85 to 132 Vac rms).
The input frequency range is 47 to 63 Hz.
Accept various input voltages and convert them into voltages that other 3500 modules can use.
In a dual power configuration, it can be used as the main or backup power source.
The rack can accommodate one or two power supplies (any combination of AC and/or DC).
When two power supplies are installed in the rack, the lower power supply serves as the main power supply and the upper power supply serves as the backup power supply.
Removing or inserting any power module will not interrupt rack operation (only if a second power supply is installed).
3500/15 127610-01
Product details and parameters: 3500/15 127610-01 BENTLY AC power module and DC power module
Power input:
Voltage range: 100-240 VAC
Frequency: 50/60 Hz
Current: 2 A
Power output:
DC voltage: 24 VDC
DC current: 5.5 A
Size and weight:
Dimensions (millimeters): 168mm x 98mm x 36mm
Dimensions (inches): 3.35 x 9.5 x 10.25 inches
Weight: Approximately 1kg (or 4.0 pounds)
Work environment:
Working temperature: 0 ℃ to 60 ℃

3500/15 127610-01 Application areas:
This module is widely used in industrial control systems in industries such as petroleum, chemical, power, pharmaceuticals, and food, meeting the power supply needs of sensors and monitoring equipment in various vibration monitoring systems.

BENTLY 3500/15 127610-01 AC power module and DC power module together constitute the power solution for 3500 series components. They provide stable and reliable power support for the system, ensuring that it can operate normally under various working conditions. Through flexible power configuration (single or dual power), these power modules can meet the needs of different application scenarios, improving system reliability and availability.
