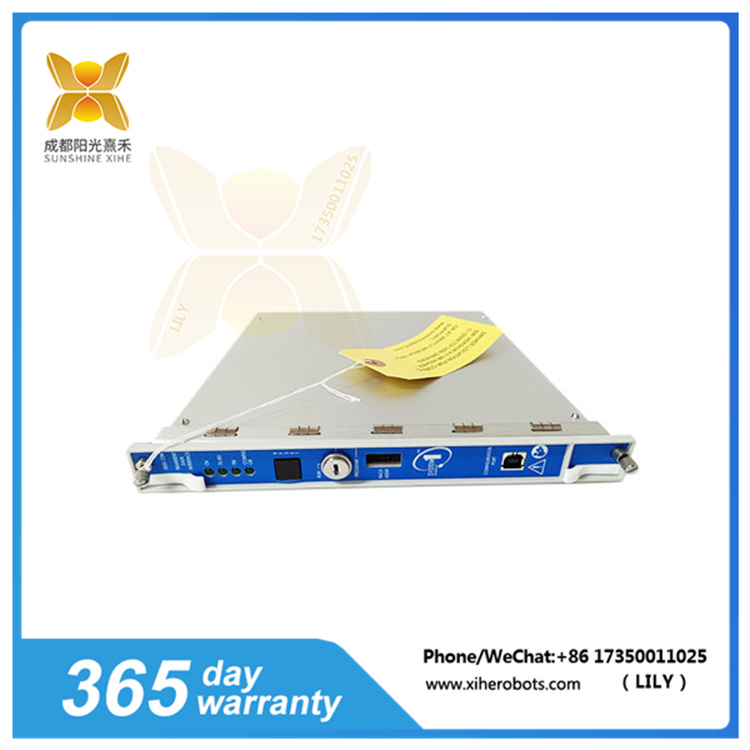

3500/22M 138607-01 BENTLY 瞬態數據接口（TDI）模塊 成都陽光熹禾

3500/22M 138607-01 BENTLY 瞬態數據接口（TDI）模塊 成都陽光熹禾

  • 每個3500機架需要一個TDI或RIM，它們始終占用插槽1（電源旁邊）。
  • 對于三重模塊冗余（TMR）應用，3500系統要求TMR形式的TDI，它除了具有所有標準TDI的功能外，還具有“監測器通道比較功能”。
  • 該模塊與3500監控系統和兼容軟件（如System 1TM 機械管理軟件）完全兼容，確保數據的有效傳輸和處理。

描述

產品細節說明：3500/22M 138607-01 BENTLY 瞬態數據接口（TDI）模塊

  • TDI結合了3500/20框架接口模塊（RIM）和通訊處理器的功能，如TDXnet。
  • TDI運行在3500框架的RIM插槽中，與M系列監測器（如3500/40M、3500/42M等）配合使用，連續采集穩態和瞬態波形數據。
  • TDI通過以太網鏈路將數據傳遞給主機軟件，支持10Base-T或100Base-TX以太網，以及100Base-FX光纖以太網。
  • TDI具有標準的靜態數據采集能力，但通過使用可選的通道使能磁盤，還可以捕獲動態和高分辨率瞬態數據。
  • TDI雖然為全部框架提供通用功能，但并不是關鍵監測通道的組成部分，不影響整個監測系統的正確和常規運行。

3500/22M 138607-01

產品詳情參數 ：3500/22M 138607-01 BENTLY 瞬態數據接口（TDI）模塊

  • 型號：3500/22M 138607-01
  • 功耗：10.5瓦
  • 接口：USB-B，以太網（10Base-T或100Base-TX，100Base-FX光纖）
  • 特性：機架復位按鈕，報警前和報警后數據捕獲
  • 插槽位置：必須位于3500機架的第一個插槽中（緊鄰電源模塊）

3500/22M 138607-01 BENTLY 應用領域：

BENTLY 3500/22M 138607-01適用于需要高精度、連續數據采集和監控的工業環境，特別是在振動監測、機械保護以及狀態監控和診斷領域。

Product details: 3500/22M 138607-01 BENTLY Transient Data Interface (TDI) module
TDI combines the functions of 3500/20 Framework Interface Module (RIM) and Communication Processor, such as TDXnet.
TDI runs in the RIM slot of the 3500 rack and is used in conjunction with M-series monitors (such as 3500/40M, 3500/42M, etc.) to continuously collect steady-state and transient waveform data.
TDI transmits data to host software through Ethernet links, supporting 10Base-T or 100Base-TX Ethernet, as well as 100Base-FX fiber optic Ethernet.
TDI has standard static data acquisition capabilities, but by using optional channel enabled disks, it can also capture dynamic and high-resolution transient data.
Although TDI provides universal functionality for all frameworks, it is not a critical component of monitoring channels and does not affect the correct and routine operation of the entire monitoring system.
Product details parameters: 3500/22M 138607-01 BENTLY Transient Data Interface (TDI) module
Model: 3500/22M 138607-01
Power consumption: 10.5 watts
Interface: USB-B, Ethernet (10Base-T or 100Base-TX, 100Base-FX fiber)
Features: Rack reset button, data capture before and after alarm
Slot location: must be located in the first slot of the 3500 rack (adjacent to the power module)

3500/22M 138607-01 BENTLY Application areas:

BENTLY 3500/22M 138607-01 is suitable for industrial environments that require high-precision, continuous data acquisition and monitoring, especially in the fields of vibration monitoring, mechanical protection, and condition monitoring and diagnosis.
