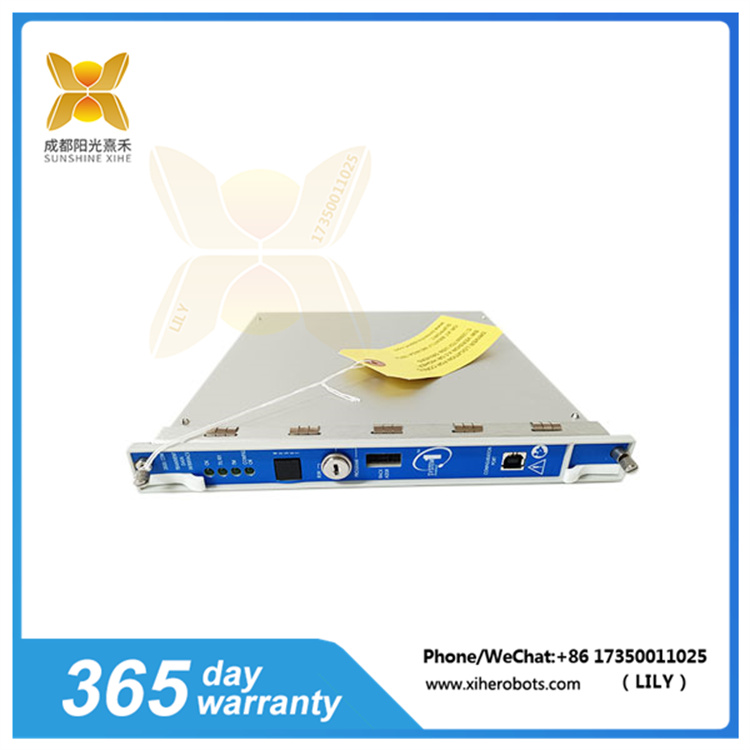

3500/22M 146031-01 BENTLY 瞬態數據接口模塊（TDI） 成都陽光熹禾

3500/22M 146031-01 BENTLY 瞬態數據接口模塊（TDI） 成都陽光熹禾

  1. 型號：3500/22M 146031-01
  2. 類型：瞬態數據接口模塊（TDI）
  3. 制造商：Bently Nevada（現為GE Measurement & Control Solutions）
分類： ,

描述

產品細節說明：3500/22M 146031-01 BENTLY 瞬態數據接口模塊（TDI）

  1. 數據接口：作為3500監測系統與兼容軟件之間的接口，TDI模塊負責收集穩態和瞬態動態（波形）數據，并通過以太網鏈路將這些數據傳遞到主機軟件。
  2. 通信處理：結合了3500/20機架接口模塊（RIM）的功能和通信處理器（如TDXnet）的數據收集能力，TDI在3500機架中集成了通信處理器功能。
  3. 狀態監控：與M系列監視器（如3500/40M、3500/42M等）連接，以連續收集數據，并支持靜態數據捕獲以及可選的動態和高分辨率瞬態數據捕獲。

3500/22M 146031-01

產品詳情參數 ：3500/22M 146031-01 BENTLY 瞬態數據接口模塊（TDI）

  1. 功耗：10.5瓦
  2. 接口：
    • USB-B：前面板提供USB-B接口
    • 以太網：支持10Base-T或100Base-TX自適應以太網，以及100Base-FX光纖以太網
  3. 其他特性：
    • 機架復位按鈕：用于重置模塊或機架
    • 報警前后數據捕獲：能夠捕獲報警前后的數據，以便進行故障分析和診斷

3500/22M 146031-01 BENTLY? 應用領域：

3500/22M 146031-01 TDI模塊廣泛應用于各種需要高精度、高可靠性數據監測的工業自動化和控制系統中，如石油和天然氣行業的旋轉設備監測、電力和能源管理系統的狀態監控等。3500/22M 146031-01是一款功能強大、穩定可靠的瞬態數據接口模塊，適用于各種需要高精度數據監測的工業自動化和控制系統。

Product details: 3500/22M 146031-01 BENTLY Transient Data Interface Module (TDI)
Data Interface: As an interface between the 3500 monitoring system and compatible software, the TDI module is responsible for collecting steady-state and transient dynamic (waveform) data, and transmitting this data to the host software through an Ethernet link.
Communication processing: Combining the functionality of the 3500/20 Rack Interface Module (RIM) with the data collection capabilities of communication processors (such as TDXnet), TDI integrates communication processor functionality in the 3500 rack.
Status monitoring: Connected to M-series monitors (such as 3500/40M, 3500/42M, etc.) to continuously collect data and support static data capture as well as optional dynamic and high-resolution transient data capture.
Product details and parameters: 3500/22M 146031-01 BENTLY Transient Data Interface Module (TDI)
Power consumption: 10.5 watts
Interface:
USB-B: The front panel provides a USB-B interface
Ethernet: Supports 10Base-T or 100Base-TX adaptive Ethernet, as well as 100Base-FX fiber optic Ethernet
Other features:
Rack reset button: used to reset modules or racks
Pre – and post alarm data capture: capable of capturing pre – and post alarm data for fault analysis and diagnosis
3500/22M 146031-01 BENTLY Application areas:

The 3500/22M 146031-01 TDI module is widely used in various industrial automation and control systems that require high-precision and high reliability data monitoring, such as rotating equipment monitoring in the oil and gas industry, and status monitoring in power and energy management systems. 3500/22M 146031-01 is a powerful, stable and reliable transient data interface module suitable for various industrial automation and control systems that require high-precision data monitoring.
