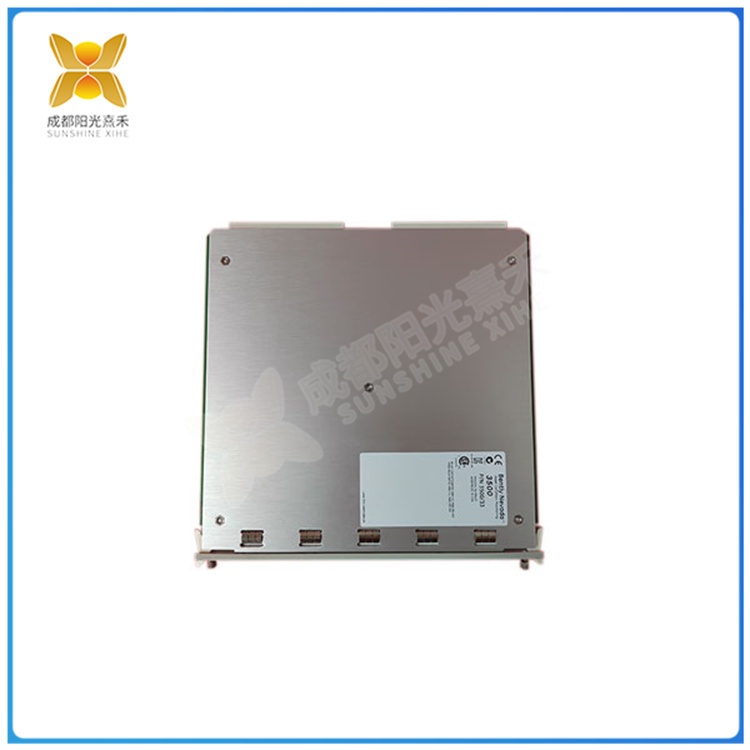

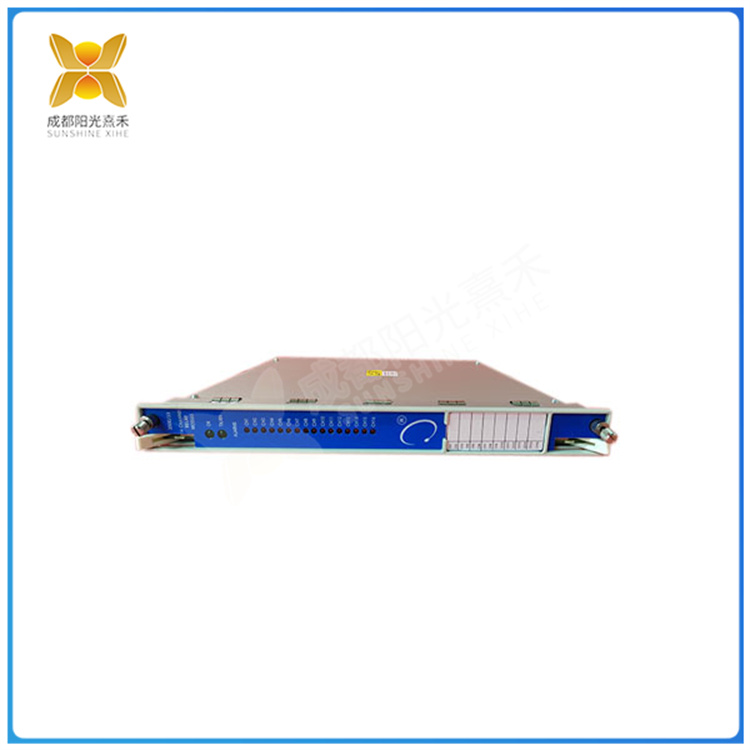

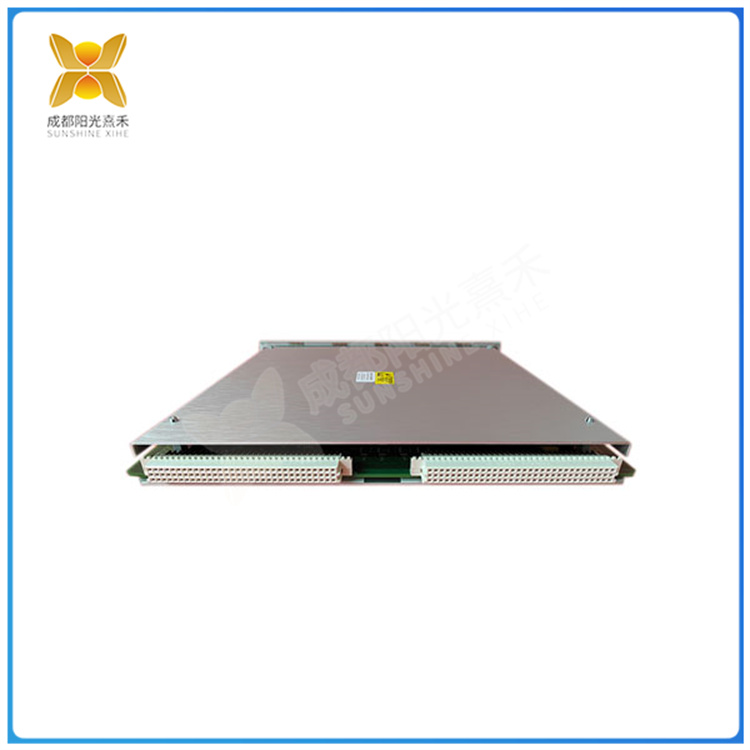

3500/33 Bently Nevada technical specifications
The 6-channel relay module is a full-height module that provides 16 relay outputs. You can place any number of 16- on the right of any slot in the channel relay module transient data interface module. The per-person output of the 16-head relay module can be independently programmed to execute voting logic, and the per-person relays of the module include alarm area logic, Programming use of Alarm logic AND and Logic can use the following :n Alarm inputs (alarm and danger states) are not good n individual measurement variables from any monitor channel or any combination of monitor channels in the rack You can program the most fetch using the 3500 frame configuration flexibility. 1 16 channel relay module requires 3500 bay configuration, version 3.3 or higher, 16 channel relay module requires 3500 data acquisition soft, version 2.40 or higher, 16 channel relay module requires 3500 data display software, version =1.40 or higher, n in multiples when ordering authentication options (02), The 3500 monitor is certified to Zone 2 standards, including ATEX and North America, and the Zone n2 standard specifies increased pitch requirements at higher voltages. 16-channel relay modules do not meet these pitch requirements, so the module approval options ordered with multiples are limited to lower levels
Funle compares those with other approved options. n The use of higher electronic music violates the Hazardous Area Certificate Multiple release option, the North American Part 2 standard associated with the approval of the CSA only option /-01 to be downgraded to 30Vrms to meet the 61010-1 type test requirements, n such as the 16-channel relay module is a functional safety (SIL) system with a functional safety certificate requiring limited voltage, Higher voltages will not be allowed for functional safety (SIL) systems.
