描述

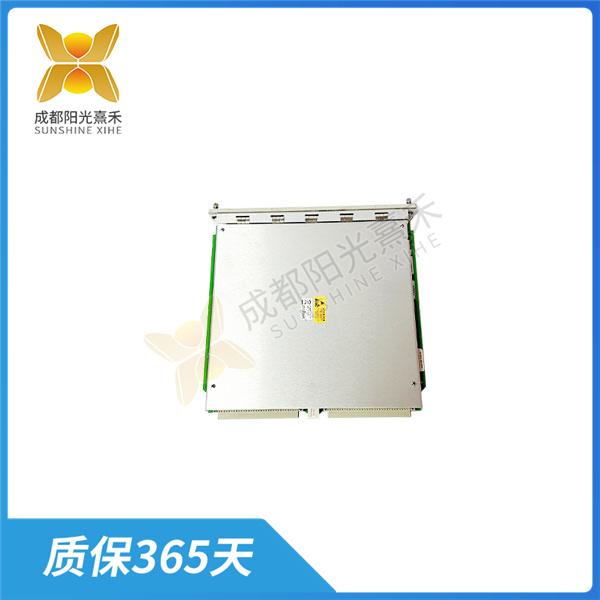

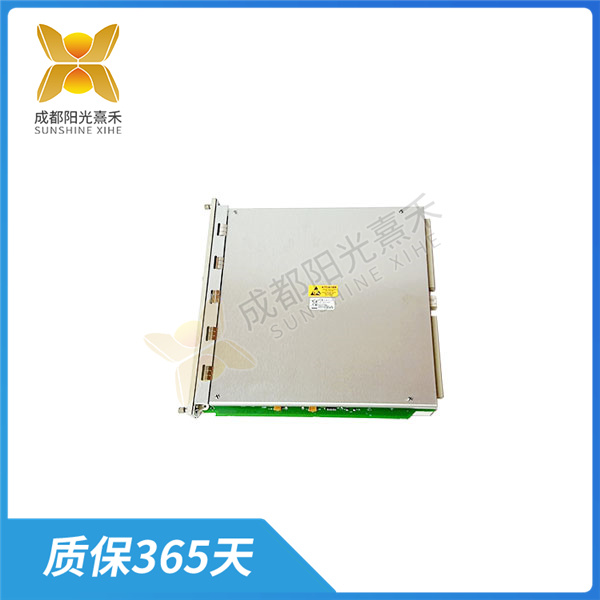

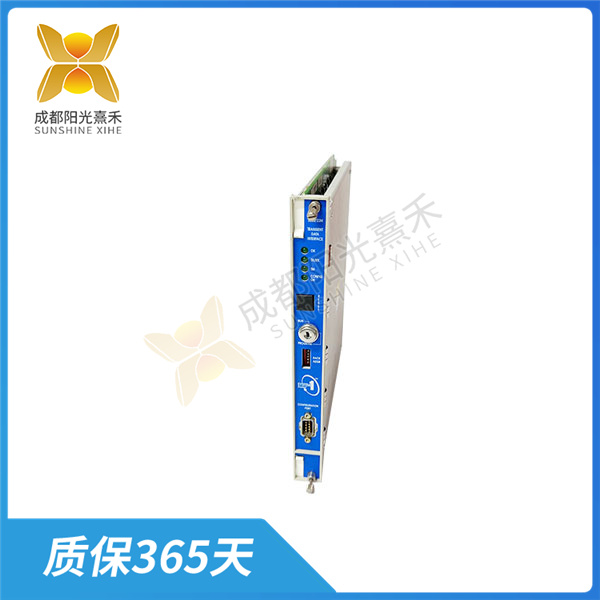

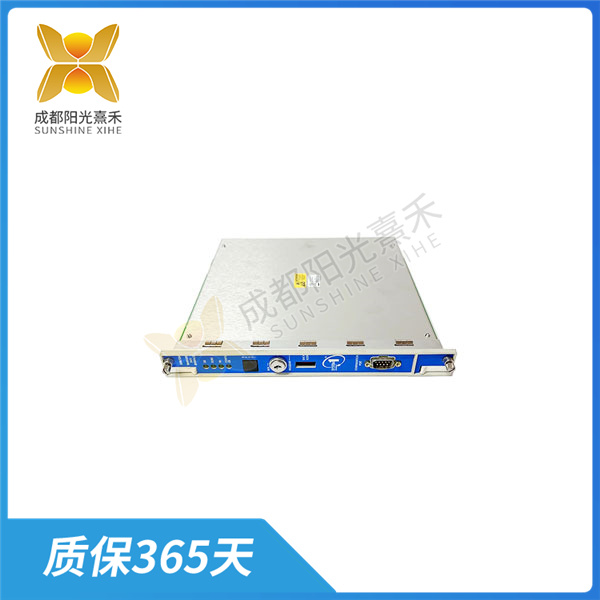

?3500/42M?176449-02?? 軸振動模塊會輸出相應的報警信號或控制信號

軸振動模塊是用于汽輪機安全監測保護裝置的一種設備。?3500/42M?176449-02這種模塊可以監測軸的振動情況，從而確保汽輪機的安全運行。軸振動模塊有單通道和雙通道兩種類型，可以根據不同的需求進行選擇。

此外，軸振動模塊還常常應用于旋轉機械監視保護系統中，通過對軸振動的實時監測和分析，可以及時發現機械故障，防止設備損壞和事故發生。

軸振動模塊的工作原理基于振動傳感器和信號處理技術。

首先，振動傳感器（如加速度計）被安裝在需要監測的軸上，用于檢測軸的振動信號。這些傳感器能夠感知軸的微小振動，并將其轉換為電信號。

接下來，這些電信號被傳輸?shù)捷S振動模塊中。在模塊內部，信號經過放大、濾波和數字化等處理步驟，以提取出有用的振動信息。這些信息可以包括振動的幅度、頻率和相位等。

然后，通過對比預設的閾值或與其他傳感器數據進行比較，軸振動模塊可以判斷軸的振動是否超出安全范圍或是否存在異常情況。

最后，根據判斷結果，軸振動模塊會輸出相應的報警信號或控制信號，以便進行進一步的處理或采取措施，如停機檢查、調整參數等，以確保旋轉機械的安全運行。

需要注意的是，?3500/42M?176449-02軸振動模塊的性能和準確性受到多種因素的影響，如傳感器的靈敏度、安裝位置、環境因素等。因此，在使用軸振動模塊時，需要綜合考慮這些因素，并進行適當?shù)男?zhǔn)和維護，以確保其可靠性和有效性。

?3500/42M?176449-02?? 軸振動模塊會輸出相應的報警信號或控制信號

Shaft vibration module is a kind of equipment used in turbine safety monitoring and protection device. 3500/42M 176449-02 This module monitors shaft vibration to ensure the safe operation of the turbine. There are two types of shaft vibration modules, single channel and double channel, which can be selected according to different needs.

In addition, shaft vibration module is often used in rotating machinery monitoring and protection system, through real-time monitoring and analysis of shaft vibration, mechanical failures can be found in time to prevent equipment damage and accidents.

The working principle of shaft vibration module is based on vibration sensor and signal processing technology.

First, a vibration sensor (such as an accelerometer) is installed on the shaft that needs to be monitored to detect the vibration signal of the shaft. These sensors are able to sense tiny vibrations in the shaft and convert them into electrical signals.

Next, these electrical signals are transmitted to the shaft vibration module. Inside the module, the signal is amplified, filtered and digitized to extract useful vibration information. This information can include the amplitude, frequency and phase of the vibration.

The shaft vibration module can then determine if the shaft is vibrating outside the safe range or if there is an abnormal condition by comparing it to a preset threshold or other sensor data.

Finally, according to the judgment result, the shaft vibration module will output the corresponding alarm signal or control signal for further processing or to take measures, such as stopping inspection, adjusting parameters, etc., to ensure the safe operation of the rotating machinery.

It should be noted that the performance and accuracy of the 3500/42M 176449-02 shaft vibration module is affected by a variety of factors, such as the sensitivity of the sensor, the installation position, environmental factors, etc. Therefore, when using the shaft vibration module, it is necessary to take these factors into account, and carry out proper calibration and maintenance to ensure its reliability and effectiveness.
