描述

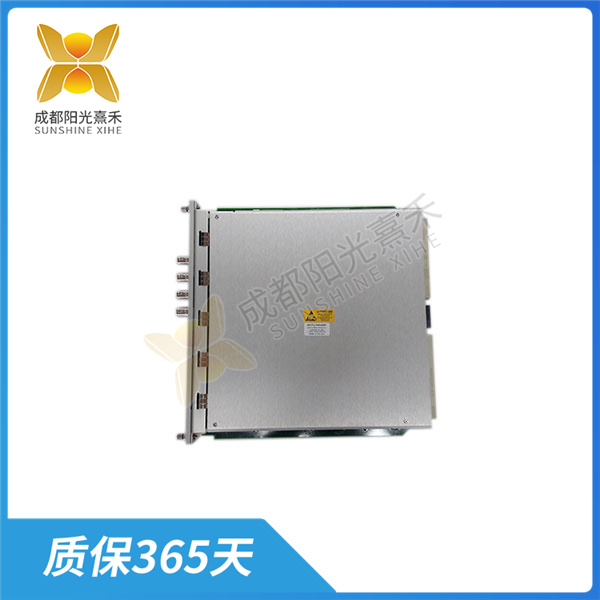

3500-42M-176449-02 BENTLY 振動監測模塊或位移/速度加速度監測模塊

3500-42M-176449-02是Bently Nevada 3500機械保護系統中的一個特定模塊，稱為振動監測模塊或位移/速度加速度監測模塊。這個模塊主要用于監測大型旋轉機械的振動情況，例如汽輪機、壓縮機、水泵等設備的軸振、瓦振、脹差、擺度、偏心、軸向位移以及機殼膨脹等參數。

具體來說，3500-42M-176449-02是一個四通道監測器，它可以接收來自接近傳感器和地震傳感器的輸入信號，并對這些信號進行調節和處理，以提供各種振動和位置測量。用戶可以使用3500框架組態軟件對每個通道進行編程，以實現如徑向振動、推力位置、膨脹差、偏心率、加速度、速度、絕對軸和圓形接受區域等功能的監測。

此外，這個模塊還具有報警功能，通過持續比較監測參數和配置的報警設定值，當參數超過設定值時，會觸發報警，從而提供機械保護。這些報警信息對于操作和維護人員來說非常重要，因?yàn)樗鼈兛梢詭椭皶r(shí)發現并解決機械問題，防止設備損壞和生產中斷。

需要注意的是，為了正常運行，3500-42M-176449-02模塊通常需要與其他3500系列模塊一起使用，如3500/01軟件模塊、3500/05系統框架模塊、3500/15電源模塊等。這些模塊共同組成一個完整的監測系統，為工業設備提供全面的振動和機械保護。

3500-42M-176449-02 BENTLY 振動監測模塊或位移/速度加速度監測模塊

The 3500-42M-176449-02 is a specific module in the Bently Nevada 3500 mechanical protection system called the Vibration Monitoring module or the Displacement/Velocity Acceleration Monitoring module. This module is mainly used to monitor the vibration of large rotating machinery, such as turbine, compressor, water pump and other equipment axial vibration, tile vibration, expansion, swing, eccentricity, axial displacement and housing expansion parameters.

Specifically, the 3500-42M-176449-02 is a four-channel monitor that receives input signals from proximity sensors and seismic sensors, and adjusts and processes these signals to provide a variety of vibration and position measurements. Each channel can be programmed using the 3500 frame configuration software to monitor functions such as radial vibration, thrust position, differential expansion, eccentricity, acceleration, speed, absolute axis, and circular acceptance area.

In addition, this module also has an alarm function, which provides mechanical protection by continuously comparing the alarm Settings of the monitoring parameters and configurations, and triggering an alarm when the parameters exceed the set values. These alarms are very important for operations and maintenance personnel because they can help detect and resolve mechanical problems in a timely manner, preventing equipment damage and production disruptions.

It should be noted that in order to operate properly, the 3500-42M-176449-02 module usually needs to be used with other 3500series modules, such as 3500/01 software module, 3500/05 system frame module, 3500/15 power module, etc. Together, these modules form a complete monitoring system that provides comprehensive vibration and mechanical protection for industrial equipment.
