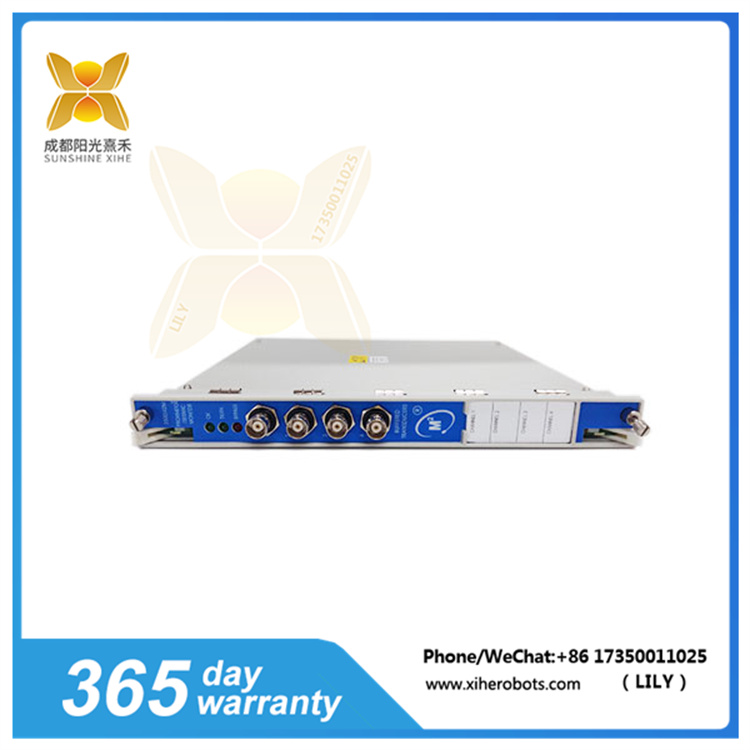

3500/42M 176449-02 BENTLY 軸振動模塊 成都陽光熹禾

3500/42M 176449-02 BENTLY 軸振動模塊 成都陽光熹禾

  • 分辨率：0.3662A / bit
  • 靈敏度：在100 Hz (6,000 cpm)時為20mV/mm/s (500 mV/in/s) ±5%
  • 頻率響應：從小工作頻率到1 kHz (60,000 cpm)
  • 引線長度：在Bently 9200和3300監測器之間長305米(1,000英尺)

描述

產品細節說明：3500/42M 176449-02 BENTLY 軸振動模塊

  • 多通道監測：作為一個可組態的4通道監測器模塊，它可以同時監測多個參數，提高了測試和測量的效率。
  • 輸入類型多樣：除了接收電渦流傳感器輸入類型，該模塊還可以接收速度、加速度和雙探頭（速度和位移）輸入類型及其相關的信號調節，如濾波和積分。
  • 微分信號處理：能夠從軸相對振動中提取機殼振動信號，為某些大型燃?xì)夂驼羝啓C(jī)的軸絕對測量提供關鍵信息。
  • 高精度測量：模塊提供了高達24位的分辨率和低噪聲水平，實現精確的模擬信號測量。其優異的線性度和低漂移性能確保了寬動態范圍內的準確測量結果。
  • 靈活的輸入范圍：支持多種可調的輸入范圍，以適應不同信號源的幅度要求，增強了測量的靈活性和準確性。
  • 內置校準功能：具有內置的自動校準功能，可以確保測量過程中各通道的精度和可靠性。此外，它還支持標準校準程序，進一步保證測量結果的一致性和準確性。
  • 高速數據傳輸：采用PXIe總線接口，該模塊能夠?qū)崿F(xiàn)高速數據傳輸，確保采集的數據能夠快速傳輸?shù)接?jì)算機進行處理和分析。

3500/42M 176449-02

產品詳情參數 ：3500/42M 176449-02 BENTLY 軸振動模塊

  • 制造商：內華達州本特利（Bently Nevada）
  • 型號：3500/42M
  • 序列號：176449-02
  • 產品類型：軸振動監測模塊
  • 輸入信號：-10vdc ~ +10vdc
  • 功耗：7.7瓦
  • 軸電源：-24vdc
  • 變頻器電源：-24vdc

3500/42M 176449-02 BENTLY應用領域：

本特利 3500/42M 176449-02 軸振動模塊憑借其高性能、高精度和靈活性，在大型燃?xì)夂驼羝啓C(jī)的軸振動監測中發揮著關鍵作用。

Product details: 3500/42M 176449-02 BENTLY shaft vibration module
Multi channel monitoring: As a configurable 4-channel monitoring module, it can simultaneously monitor multiple parameters, improving the efficiency of testing and measurement.
Diverse input types: In addition to receiving eddy current sensor input types, this module can also receive velocity, acceleration, and dual probe (velocity and displacement) input types and their related signal adjustments, such as filtering and integration.
Differential signal processing: capable of extracting casing vibration signals from relative shaft vibrations, providing critical information for absolute shaft measurements of certain large gas and steam turbines.
High precision measurement: The module provides up to 24 bit resolution and low noise levels, enabling precise analog signal measurement. Its excellent linearity and low drift performance ensure accurate measurement results over a wide dynamic range.
Flexible input range: Supports multiple adjustable input ranges to adapt to the amplitude requirements of different signal sources, enhancing measurement flexibility and accuracy.
Built in calibration function: With built-in automatic calibration function, it can ensure the accuracy and reliability of each channel during the measurement process. In addition, it also supports standard calibration procedures to further ensure the consistency and accuracy of measurement results.
High speed data transmission: Using PXIE bus interface, this module can achieve high-speed data transmission, ensuring that the collected data can be quickly transmitted to the computer for processing and analysis.
Product details and parameters: 3500/42M 176449-02 BENTLY axis vibration module
Manufacturer: Bently Nevada, Nevada
Model: 3500/42M
Serial number: 176449-02
Product type: Shaft vibration monitoring module
Input signal: -10vdc~+10vdc
Power consumption: 7.7 watts
Axis power supply: -24vdc
Inverter power supply: -24vdc
3500/42M 176449-02 BENTLY Application areas:

The Bentley 3500/42M 176449-02 shaft vibration module plays a crucial role in shaft vibration monitoring of large gas and steam turbines due to its high performance, precision, and flexibility.
