描述

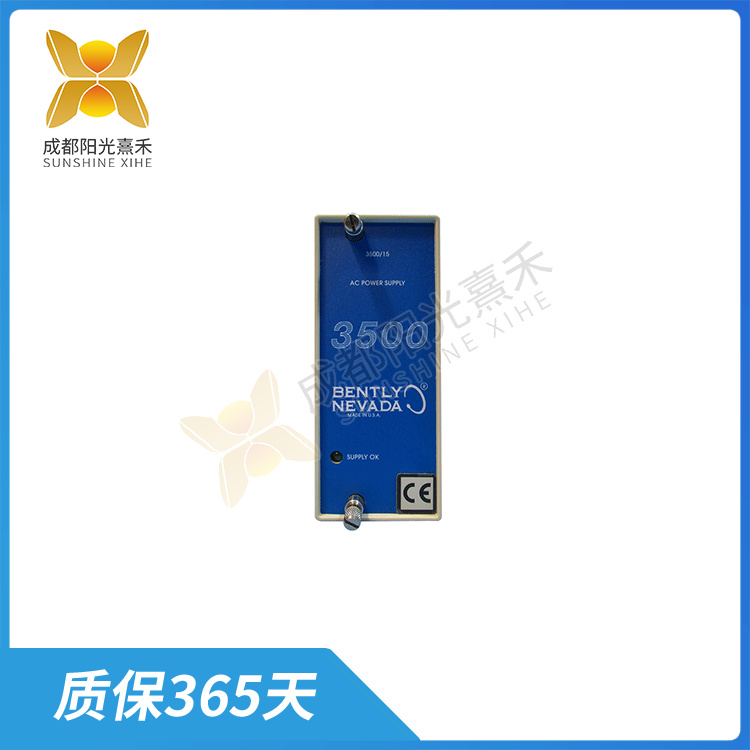

350015-07 半高模塊

350015-07是一款半高模塊，是一種特定類型的模塊，其高度只有標準模塊的一半。這種設計有助于節省空間，特別是在空間有限的機架或系統中。半高模塊通常具有與全高模塊相似的功能和性能，但尺寸更小，使得用戶可以在有限的空間內安裝更多的模塊。

半高模塊可以應用于各種領域，特別是在需要高密度集成的應用中，如服務器、數據存儲系統、通信設備等。這些模塊可能包括電源模塊、通信模塊、控制模塊等，具體取決于系統的需求和設計。

不過，需要注意的是，雖然半高模塊節省了空間，但在某些情況下，它們可能具有更復雜的散熱設計需求，因為更緊湊的布局可能使得散熱成為一個挑戰。此外，由于尺寸限制，半高模塊的接口和連接器可能也與全高模塊有所不同。

在選擇和使用半高模塊時，需要仔細考慮系統的整體設計、散熱需求、電源供應以及與其他模塊的兼容性等因素。此外，還需要遵循制造商的指導和建議，以確保系統的穩定性和可靠性。

例如，350015-07交流和DC電源是一個半高模塊，必須安裝在機架左側的指定插槽中。當兩個電源安裝在一個機架中時，下面插槽中的一個充當主電源，上面插槽中的另一個充當備用電源。只要安裝了第二個電源，移除或插入任一電源模塊都不會中斷機架的運行。

另一個例子是350015-075半高雙通道模塊，它是一個機械保護系統，用于向3500機架的監控模塊提供Keyphasor信號。該模塊接收來自接近探測器或磁性拾音器的輸入信號，并將信號轉換為數字關鍵相位信號。

350015-07 半高模塊

The 350015-07 is a half-height module, a specific type of module that is only half the height of a standard module. This design helps to save space, especially in racks or systems where space is limited. Half-height modules typically have similar features and performance as full-height modules, but are smaller in size, allowing users to fit more modules into a limited space.

Half-height modules can be used in a variety of fields, especially in applications that require high-density integration, such as servers, data storage systems, communication devices, etc. These modules may include power modules, communication modules, control modules, etc., depending on the requirements and design of the system.

However, it is important to note that while half-height modules save space, in some cases they may have more complex thermal design needs, as a more compact layout can make heat dissipation a challenge. In addition, the interfaces and connectors of half-height modules may also differ from those of full-height modules due to size limitations.

When selecting and using half-height modules, you need to carefully consider the overall design of the system, heat dissipation requirements, power supply, and compatibility with other modules. In addition, it is necessary to follow the manufacturer’s guidance and recommendations to ensure the stability and reliability of the system.

For example, the 350015-07 AC and DC power supplies are semi-tall modules that must be installed in a designated slot on the left side of the rack. When two power supplies are installed in a rack, one of the lower slots acts as the primary power supply and the other in the upper slot acts as the backup power supply. As long as a second power supply is installed, removing or inserting either power module will not interrupt the operation of the rack.

Another example is the 350015-075 half-height dual-channel module, which is a mechanical protection system used to provide Keyphasor signals to the monitoring module of the 3500 rack. The module receives input signals from proximity detectors or magnetic pickups and converts the signals into digital critical phase signals.
