350020-125744-02 機架的主接口

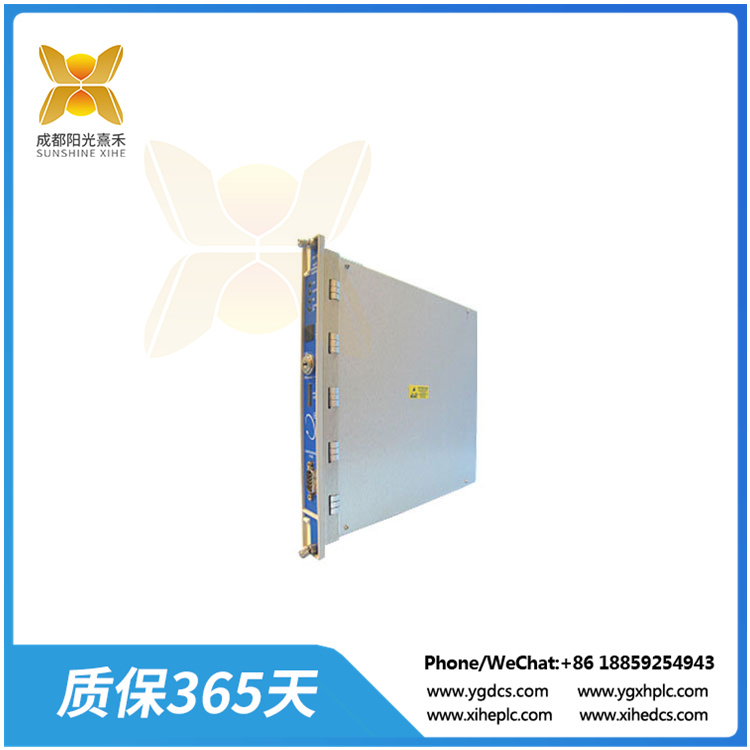

RIM (Rack Interface Module)是3500機架的主接口。它支持用于配置機架和檢索機械信息的專有協議。該im必須位于機柜的1號槽位(靠近電源)。

RIM支持兼容的Bently Nevada外部通信處理器，如TDXnet、TDIX和DDIX。雖然RIM提供了整個機架的一些通用功能，但它不是關鍵監控路徑的一部分，對整個監控系統的正常運行沒有影響。每個機架需要一個RIM。

對于三模冗余(TMR)應用，3500系統需要一個TMR版本的RIM。除了所有標準的RIM功能外，TMR RIM還執行“監視器通道比較”。3500 TMR配置使用監視器選項中指定的設置實現監視器投票。使用這種方法，TMR RIM不斷比較三(3)冗余監視器的輸出。如果TMR RIM檢測到來自其中一個監視器的信息不再在其他兩個監視器信息的配置百分比內，它將標記監視器出錯，并在系統事件列表中放置一個事件。

350020-125744-02 機架的主接口

The Rack Interface Module (RIM) is the primary interface to the 3500 rack. It supports a proprietary protocol used toconfigure the rack and retrieve machinery information. TheRIM must be located in slot 1 of the rack (next to the powersupplies).

The RIM supports compatible Bently Nevada external communications processors such as TDXnet, TDIX, and DDIX. While the RIM provides certain functions common to the entire rack, the RIM is not part of the critical monitoring path and has no effect on the proper, normal operation of the overall monitoring system. One RIM is required per rack.

For Triple Modular Redundant (TMR) applications, the 3500 System requires a TMR version of the RIM. In addition to all the standard RIM functions, the TMR RIM also performs “monitor channel comparison.” The 3500 TMR configuration implements monitor voting using the setup specified in the monitor options. Using this method, the TMR RIM continually compares the outputs from three (3) redundant monitors. If the TMR RIM detects that the information from one of those monitors is no longer within a configured percentof the information of the other two monitors, it will flag that the monitor is in error and place an event in the System Event List.
