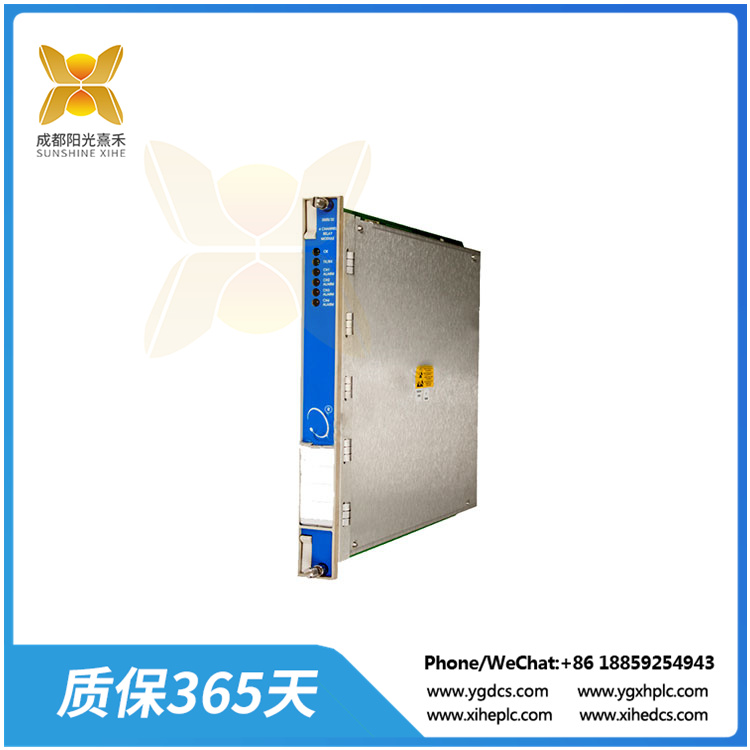

350032-01-01? ?500? 4通道繼電器模塊
本特利的350032-01-01系列機械檢測系統的電子超速檢測系統是高度可靠、快速響應的冗余轉速表系統，專門用于機械的超速保護。350032-01-01?模塊可用于組成2?選2?或3?選2(推薦)表決系統。安裝超速檢測系統的3500框架要求配備冗余電源。
每一個超速檢測模塊接收一個渦流傳感器或磁傳感器的信號，輸入信號的范圍是＋10.0V?至?-24.0V。信號超出此范圍，在模塊內受限。適用于本特利3300?8mm?渦流傳感器，3300?16mm?高溫渦流傳感器（HTPS），7200?5mm、8mm、11mm和14mm?渦流傳感器，350032-01-01?RAM渦流傳感器，或磁傳感器。
本特利350032-01-01超速保護模塊，其設計是一個通道模塊，它適用于兩模塊或三模塊組的超速保護應用。模塊接收來自趨近式傳感器或磁電式傳感器的轉速脈沖輸入信號，并使用這個輸入信號驅動報警。為了實現機器保護目的，模塊提供四種快速響應報警繼電器輸出。3500超速保護系統組態成兩模塊二選一表塊或三模塊三選二表決設置。
3500超速保護系統的最基本目的是提供1)通過連續比較當前機器轉速與組態的報警設置點去驅動報警來實現機器保護和2)提供重要的機器轉速信息給運行人員和維修人員。使用350032-01-01框架組態軟件設置報警設置點。
350032-01-01? ?500? 4通道繼電器模塊
The electronic overspeed detection system of Bentley’s 350032-01-01 Series Mechanical inspection system is a highly reliable, fast responding redundant tachometer system specifically designed for overspeed protection of machinery. The 350032-01-01 module can be used to compose a 2 ? 2 or 3 ? 2(recommended) voting system. The 3500 frame with the overspeed detection system requires a redundant power supply.
Each overspeed detection module receives a signal from an eddy current sensor or magnetic sensor, with the input signal ranging from +10.0V to -24.0V. Signals outside this range are limited within the module. For Bentley 3300 8mm eddy current sensor, 3300 16mm High temperature Eddy current sensor (HTPS), 7200 5mm, 8mm, 11mm and 14mm eddy current sensor, 350032-01-01 RAM Eddy current sensor, or magnetic sensor.
The Bentley 350032-01-01 overspeed protection module is designed as a channel module, which is suitable for overspeed protection applications in two or three module groups. The module receives a speed pulse input signal from the proximity sensor or magnetoelectric sensor and uses this input signal to drive the alarm. For machine protection purposes, the module offers four fast response alarm relay outputs. 3500 overspeed protection system is configured into two modules, one table block or three modules, two out of three voting Settings.
The most basic purpose of the 3500 overspeed protection system is to provide 1) drive the alarm by continuously comparing the current machine speed with the alarm setting point of the configuration to achieve machine protection and 2) provide important machine speed information to the operator and maintenance personnel. Use the 350032-01-01 framework configuration software to set the alarm setup point.
