描述

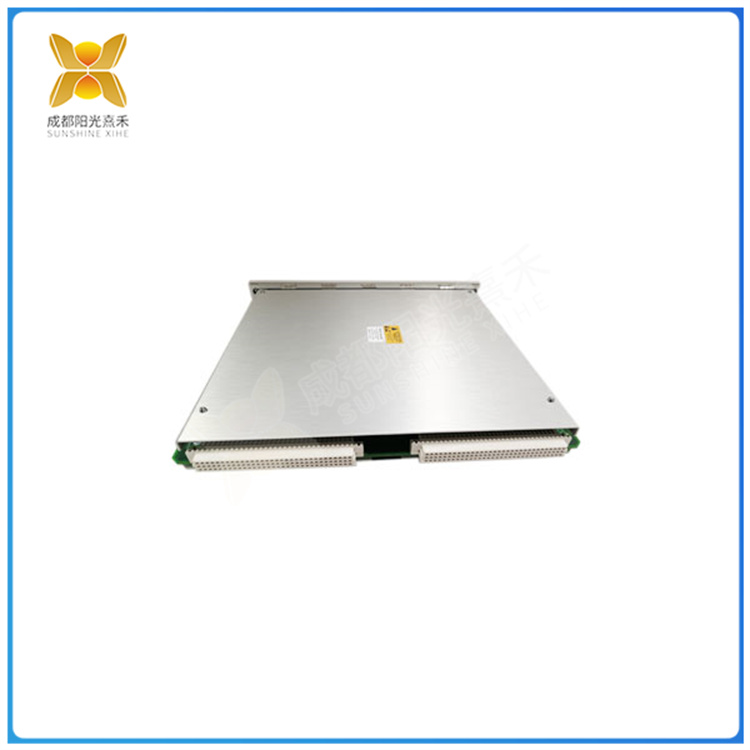

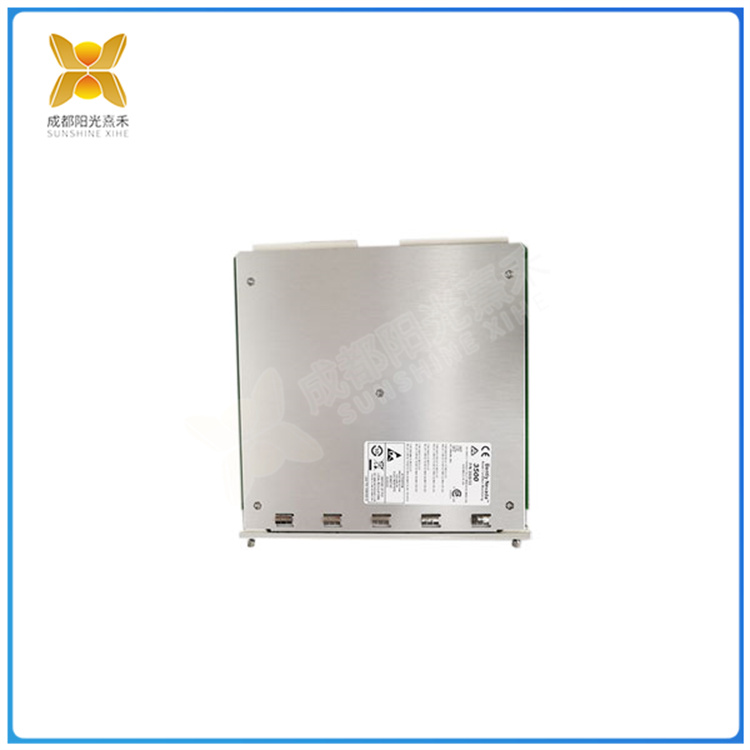

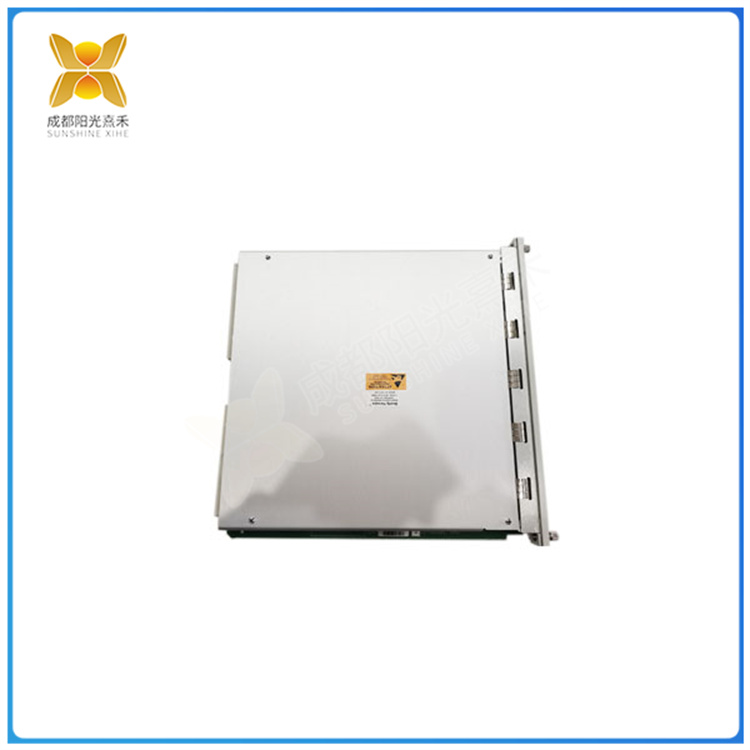

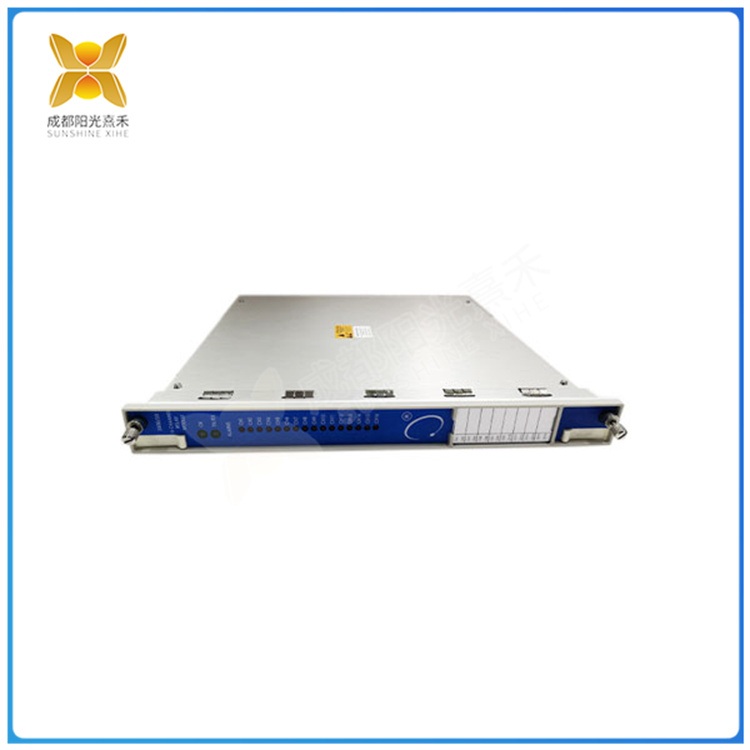

350033-01-00 全高度的16通道模塊

3500/33-01-00繼電器模塊是一個全高度的16通道模塊，它可提供16個繼電器的輸出量。任何數量的16通道繼電器模塊，都可放置在框架接口模塊右邊的任一個槽位里。16通道繼電器模塊的每個輸出，都可以獨立編程，以執行所需要的表決邏輯。

本特利3500/33每個繼電器模塊上的繼電器，都具有“報警驅動邏輯”。該報警驅動邏輯可用“與門”和“或門”邏輯編程，并可利用框架中的任何監測器通道或任何監測器通道的組合所提供的報警輸入(警告或危險)。該報警驅動邏輯應用框架組態軟件編程，可滿足應用中的特殊需要。

繼電器模塊的輸入電源通常為直流電源，常用的電壓有5V、9V、12V和24V等。選擇輸入電源的電壓時，需要考慮繼電器模塊的規格和需要控制繼電器的負載要求。例如，一些繼電器模塊要求輸入電壓為直流24V，而其他模塊可能需要更高的電壓或電流來控制繼電器。

在連接繼電器模塊的輸入電源時，需要確保電源的電壓和電流符合繼電器模塊的要求，并且電源的正負極正確連接。此外，還需要考慮電源的穩定性，以避免電源波動對繼電器模塊的工作產生影響。

需要注意的是，不同的繼電器模塊可能具有不同的輸入電源要求，因此建議在選擇和使用繼電器模塊時，仔細閱讀模塊的技術規格和用戶手冊，以確保正確連接和使用輸入電源。

350033-01-00 全高度的16通道模塊

The 3500/33-01-00 relay module is a full-height 16-channel module that provides the output of 16 relays. Any number of 16-channel relay modules can be placed in any slot on the right of the frame interface module. Each output of the 16-channel relay module can be programmed independently to perform the required voting logic.

The Bentley 3500/33 relays on each relay module have “alarm drive logic”. The alarm driver logic can be programmed with and Gate and or Gate logic and can take advantage of the alarm inputs (warning or danger) provided by any monitor channel in the frame or a combination of any monitor channel. The alarm driver logic application framework configuration software programming can meet the special needs of applications.

The input power supply of the relay module is usually DC power supply, and the commonly used voltages are 5V, 9V, 12V and 24V. When selecting the voltage of the input power supply, you need to consider the specifications of the relay module and the load requirements that need to control the relay. For example, some relay modules require an input voltage of 24V DC, while others may require a higher voltage or current to control the relay.

When connecting the input power supply of the relay module, ensure that the voltage and current of the power supply meet the requirements of the relay module, and that the positive and negative terminals of the power supply are correctly connected. In addition, it is also necessary to consider the stability of the power supply to avoid power fluctuations affecting the work of the relay module.

It should be noted that different relay modules may have different input power requirements, so it is recommended to carefully read the technical specifications and user manual of the module when selecting and using the relay module to ensure the correct connection and use of the input power supply.
