描述

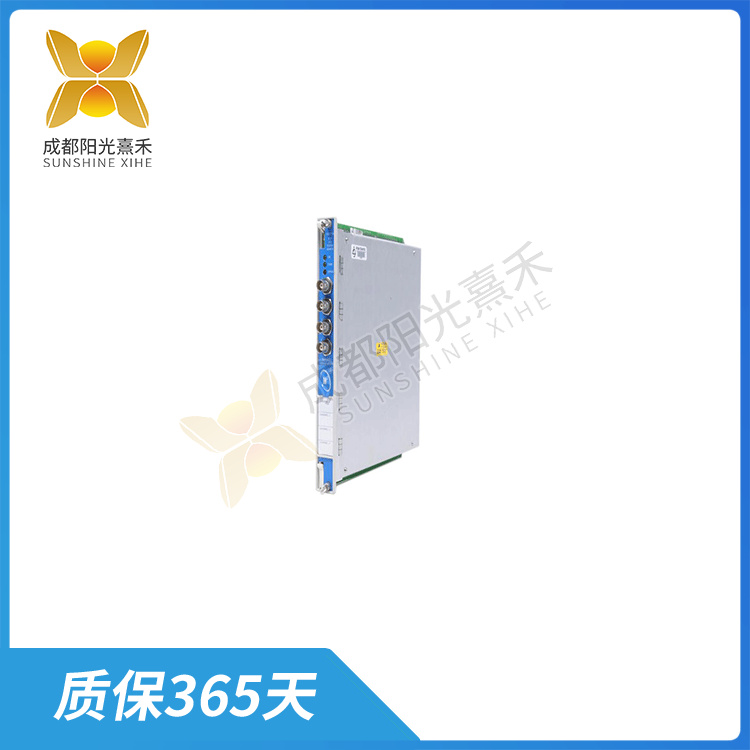

350072M 復式活塞桿位置監控器

3500/72M?是本特利（Bently Nevada）3500系列機械保護系統中的一個重要組件，通常被用作桿位置監控器。這款模塊具有4通道輸入，可以接受來自接近傳感器的信號，并對這些信號進行調理，以獲取關于設備動態的各種測量值。

這款監控器的主要功能是為往復式壓縮機提供機械保護。通過比較監控參數與配置的報警設定值，一旦達到或超過設定的閾值，監控器就會驅動警報系統發出警告。這有助于操作人員及時發現并處理潛在的機械問題，從而避免設備損壞或生產中斷。

此外，3500/72M還能夠提供關于往復式壓縮機的基本機器信息，這對于操作和維護人員來說非常有價值。這些信息可以幫助他們更好地了解設備的運行狀態，從而進行更有效的維護和管理。

在配置過程中，每個通道通常都會根據需要進行信號調理，并將調理后的信號轉換成各種參數，這些參數被稱為“比例值”。通過這種方式，監控器能夠更準確地反映設備的實際運行狀態。

總的來說，3500/72M是一款功能強大、性能穩定的桿位置監控器，它能夠為往復式壓縮機的安全運行提供有力的保障。然而，為了確保其最佳性能和長期穩定性，建議用戶遵循制造商的安裝指南和操作手冊進行正確的安裝、配置和維護。

350072M 復式活塞桿位置監控器

The 3500/72M is an important component in Bently Nevada’s 3500 series mechanical protection systems and is commonly used as a rod position monitor. The module has 4 channels of input and can receive signals from proximity sensors and condition these signals to obtain various measurements about device dynamics.

The main function of this monitor is to provide mechanical protection for reciprocating compressors. By comparing the monitoring parameters with the configured alarm Settings, once the set threshold is reached or exceeded, the monitor drives the alarm system to issue a warning. This helps operators identify and deal with potential mechanical problems in a timely manner, thereby avoiding equipment damage or production disruptions.

In addition, the 3500/72M is able to provide basic machine information about reciprocating compressors, which is very valuable to operators and maintenance personnel. This information can help them better understand the operating status of the equipment for more effective maintenance and management.

During the configuration process, each channel usually performs signal conditioning as needed, and converts the conditioned signal into various parameters, which are called “proportional values.” In this way, the monitor can more accurately reflect the actual operating status of the device.

Overall, the 3500/72M is a powerful and stable rod position monitor that provides a strong guarantee for the safe operation of the reciprocating compressor. However, to ensure optimum performance and long-term stability, users are advised to follow the manufacturer’s installation guide and operating manual for proper installation, configuration and maintenance.
