描述

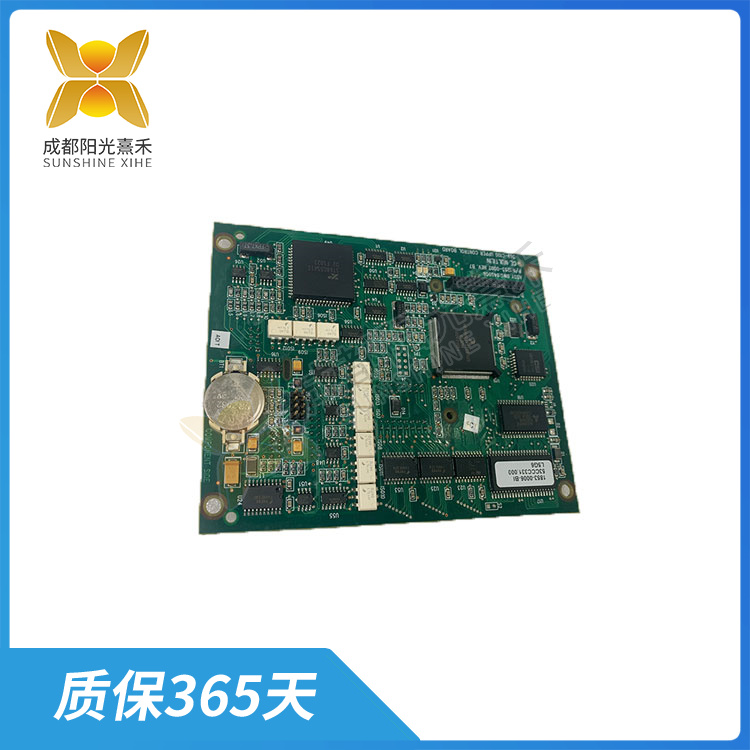

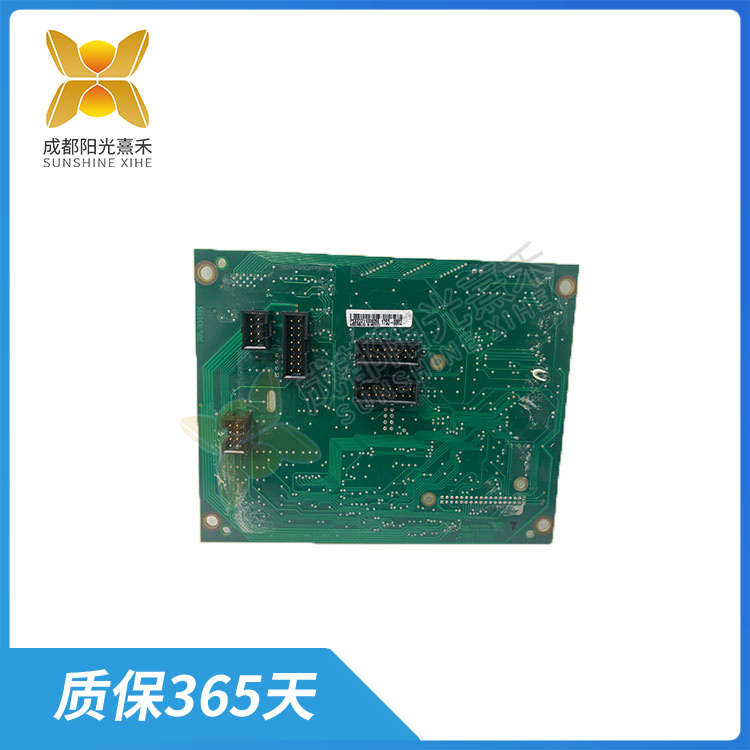

369-C100 電機保護系統

369-C100是一款電機保護系統是一種為電動機提供全面保護的系統。其主要功能是在電機出現過載、缺相、堵轉、短路、過壓、欠壓、漏電、三相不平衡、過熱、軸承磨損、定轉子偏心等故障時，進行報警或保護，從而確保電機的安全運行和延長使用壽命。

369-C100通常由電機保護器實現，這些保護器包括熱繼電器、電子式保護器和智能型保護器等多種類型。大型和重要電機一般采用智能性保護裝置，這種裝置能提供更精確、更快速的故障檢測和響應。

此外，369-C100利用先進的技術進行故障檢測。例如，利用電機氣隙磁場進行電機偏心檢測技術，可以實時在線監測電機的磨損狀態，并通過曲線顯示電機偏心程度的變化趨勢，從而早期發現軸承磨損和走內圓、走外圓等故障，做到早發現、早處理，避免掃膛事故發生。

在短路保護方面，電機保護系統會檢測電動機A、B、C三相線電流，當在一定時限內檢測到三相最大電流超過電動機額定線電流的K倍（K為短路過流倍數，一般取8~10）時，即認為電動機有短路故障，進行速斷保護。

總的來說，369-C100是一個復雜而重要的系統，它通過綜合運用多種保護技術和手段，為電機的安全運行提供了堅實的保障。如需了解更多關于電機保護系統的信息，建議查閱相關文獻資料或咨詢電機保護領域的專家。

369-C100 電機保護系統

The 369-C100 is a motor protection system that provides complete protection for electric motors. Its main function is to alarm or protect the motor when overload, lack of phase, blocking, short circuit, overvoltage, undervoltage, leakage, three-phase imbalance, overheating, bearing wear, fixed rotor eccentricity and other failures, so as to ensure the safe operation of the motor and extend the service life.

The 369-C100 is usually implemented by motor protectors, which include thermal relays, electronic protectors, and intelligent protectors. Large and important motors generally use intelligent protection devices, which can provide more accurate and faster fault detection and response.

In addition, the 369-C100 utilizes advanced technology for fault detection. For example, the use of motor air gap magnetic field for motor eccentricity detection technology can monitor the wear state of the motor online in real time, and show the change trend of the degree of motor eccentricity through the curve, so as to detect bearing wear and faults such as inner circle and outer circle early, so that early detection and early treatment can avoid the occurrence of sweeping accidents.

In terms of short-circuit protection, the motor protection system will detect the motor A, B, C three-phase line current, when the three-phase maximum current detected within a certain time limit exceeds the rated line current of the motor K times (K is the short-circuit overcurrent multiple, generally 8~10), that is, the motor has a short-circuit fault, quick break protection.

Overall, the 369-C100 is a complex and important system, which provides a solid guarantee for the safe operation of the motor by integrating a variety of protection technologies and means. For more information about motor protection systems, it is recommended to consult the relevant literature or consult experts in the field of motor protection.
