描述

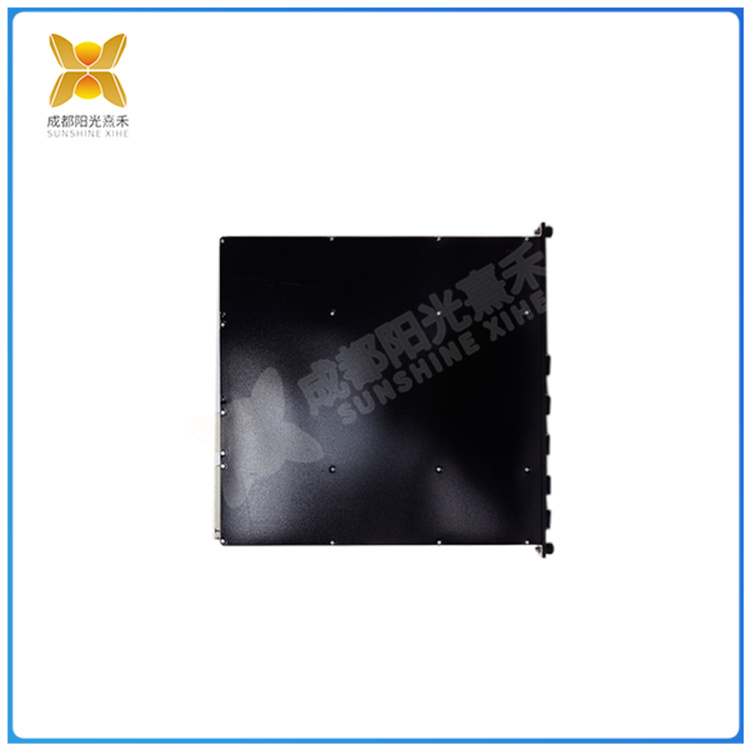

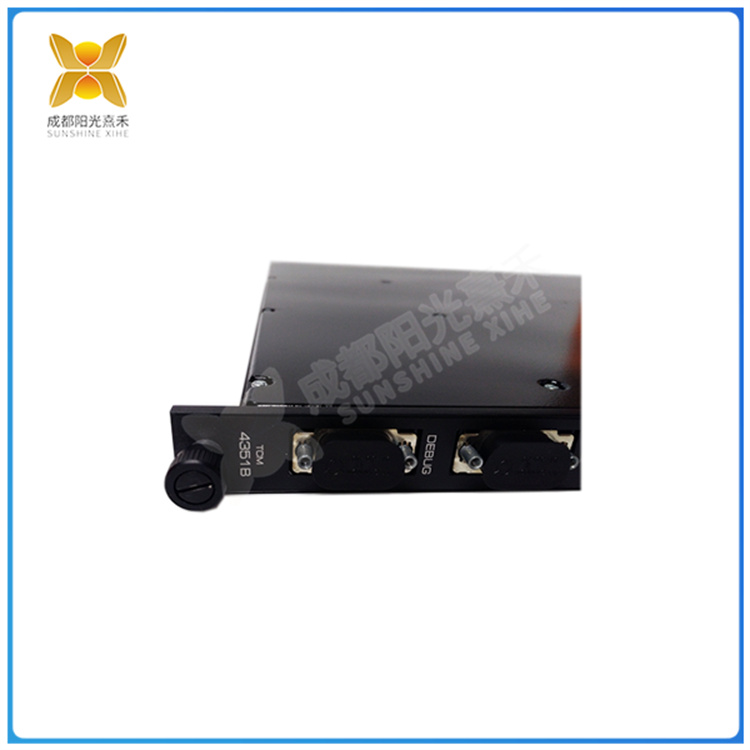

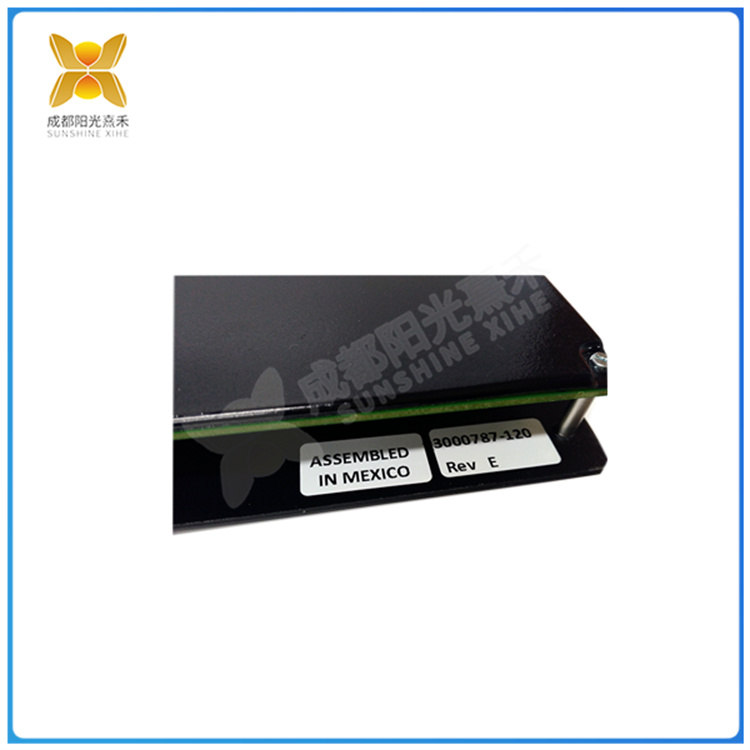

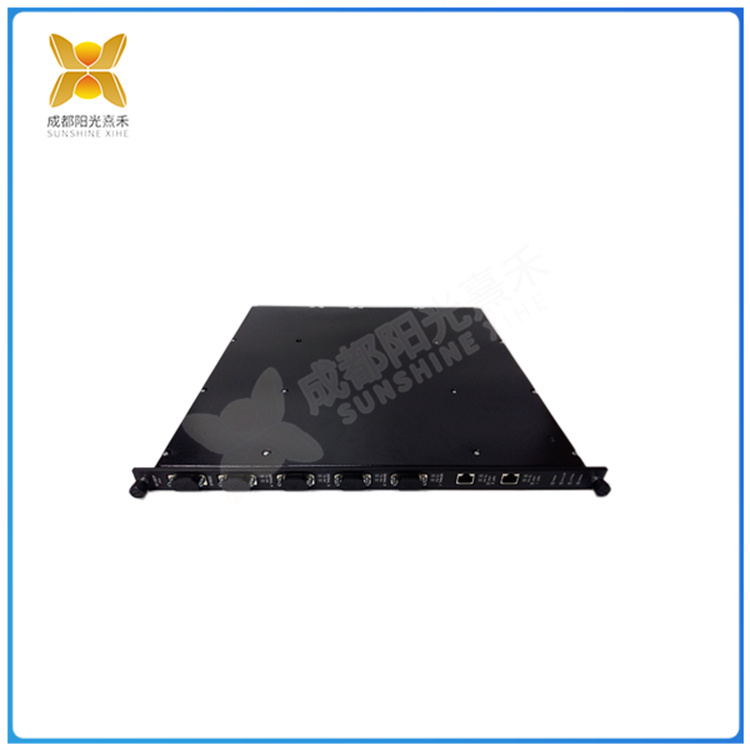

4351B? 數字量輸入模塊的工作原理主要涉及到信號采集

數字量輸入模塊是PLC（可編程邏輯控制器）系統中的一個重要組成部分，4351B主要用于接收來自工業現場的數字量信號，將這些信號轉換為PLC內部可以處理的電平信號，并傳送給CPU模塊進行進一步的處理。

數字量輸入模塊可以連接工業現場的標準開關、二線制接近開關等數字量（或開關量）輸出器件，它將這些器件的輸出狀態（如開/關）轉換為二進制的數字信號（0或1），供PLC的CPU模塊讀取和處理。在處理過程中，CPU模塊可以根據這些輸入信號的狀態來執行相應的控制邏輯，從而實現對工業過程的監控和控制。

數字量輸入模塊一般具有多個輸入通道，可以同時接收多個數字量信號。此外，為了提高信號的抗干擾能力和傳輸距離，數字量輸入模塊通常還會采用光電隔離、繼電器隔離等隔離措施。

數字量輸入模塊的工作原理主要涉及到信號采集、信號轉換和信號傳遞三個過程。

首先，當用戶使用如鍵盤、鼠標等外部設備進行操作時，這些設備會發出電信號。數字量輸入模塊的任務是對這些信號進行采集，也就是將這些電信號轉換成計算機能夠識別的數字信號。這個過程被稱為信號采集。

其次，4351B采集到的電信號并不是計算機所能直接理解和處理的信號，因此需要進行信號轉換。數字量輸入模塊會將采集到的信號進行轉換，以便計算機能夠正確地識別、處理并輸出相關的操作效果。例如，開關量的信號通常為通斷信號和無源信號，數字量輸入模塊會將其轉換為計算機能夠理解的二進制數字信號。

最后，經過信號轉換的數字信號被傳遞到計算機的處理器中，通過計算機內部的程序來對信號進行處理、解析并輸出操作結果。例如，計算機可以在屏幕上顯示出用戶在鍵盤上輸入的字符，或者根據鼠標的移動軌跡進行相應的操作。這個過程被稱為信號傳遞。

總的來說，4351B數字量輸入模塊的工作原理就是將外部設備的電信號采集并轉換成計算機能夠識別、處理的數字信號，然后將其傳遞給計算機處理器進行操作處理，從而實現用戶與計算機之間的交互操作。

4351B? 數字量輸入模塊的工作原理主要涉及到信號采集

The digital input module is an important part of the PLC (programmable logic controller) system, 4351B is mainly used to receive digital signals from the industrial site, convert these signals into the level signals that can be processed inside the PLC, and transmit to the CPU module for further processing.

The digital input module can be connected to the standard switch in the industrial field, the two-wire proximity switch and other digital (or switching) output devices, which convert the output state of these devices (such as on/off) into a binary digital signal (0 or 1) for the PLC CPU module to read and process. In the process of processing, the CPU module can execute the corresponding control logic according to the state of these input signals, so as to realize the monitoring and control of the industrial process.

The digital input module generally has multiple input channels and can receive multiple digital signals at the same time. In addition, in order to improve the anti-interference ability and transmission distance of the signal, the digital input module usually adopts photoelectric isolation, relay isolation and other isolation measures.

The working principle of the digital input module mainly involves three processes: signal acquisition, signal conversion and signal transmission.

First, when users operate with external devices such as keyboards and mice, these devices emit electrical signals. The task of the digital input module is to collect these signals, that is, to convert these electrical signals into digital signals that the computer can recognize. This process is called signal acquisition.

Secondly, the electrical signals collected by 4351B are not signals that computers can directly understand and process, so signal conversion is required. The digital input module will convert the collected signal so that the computer can correctly identify, process and output the relevant operation effect. For example, the switching signals are usually on-off signals and passive signals, and the digital input module will convert them into binary digital signals that the computer can understand.

Finally, the digital signal after signal conversion is transferred to the processor of the computer, and the signal is processed, analyzed and the operation result is output by the program inside the computer. For example, the computer can display on the screen the characters entered by the user on the keyboard, or act accordingly according to the trajectory of the mouse. This process is called signaling.

In general, the working principle of the 4351B digital input module is to collect and convert the electrical signal of the external device into a digital signal that the computer can recognize and process, and then pass it to the computer processor for operation processing, so as to realize the interactive operation between the user and the computer.
