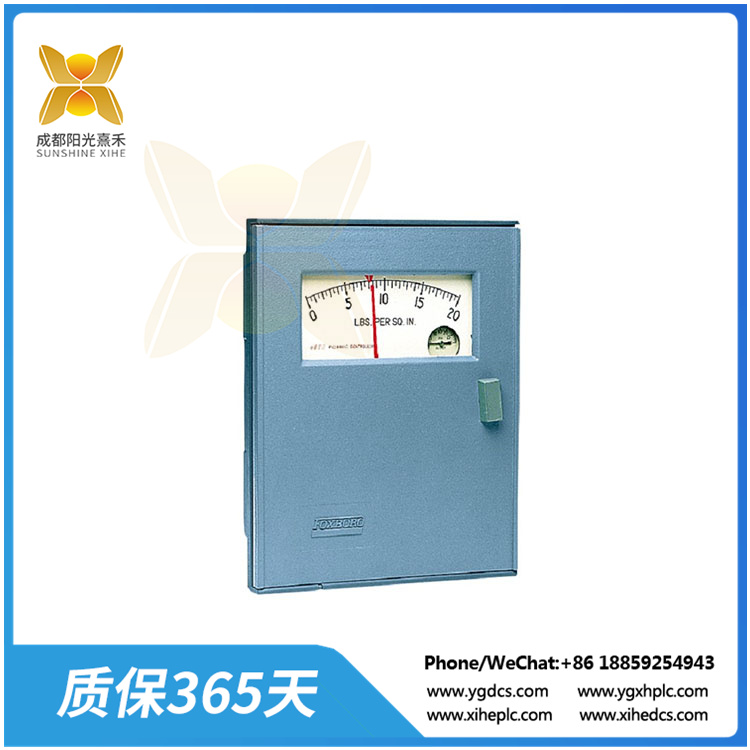

43AP-FA42CPB-CA 氣動控制器43AP系列
FOXBORO氣動控制器43AP系列描述
Foxboro 43AP氣動控制器是一種多功能過程儀表控制器， 可用于控制壓力，溫度，流量和液位。與所有過程控制器-樣， Foxboro 43AP氣動控制器可連續檢測過
程測量與其設定點之間的差異。43AP型控制器持續檢測過程測量與其設定點之間的差異，并產生輸出空氣信號,該信號是該差異和控制類型的函數。輸出信號傳
輸?shù)娇刂崎y或其他控制裝置。過程測量，設定點和輸出信號在控制器上顯示。
規格.
準確度:
輸入指針-合格元素的+0.5%跨度
輸入到輸出-取決于使用的測量元素
重復性:跨度的0.2%
死區:跨度的0.1%
輸出信號:如所指出的，20至100kPa, 3至15psi, 或0. 2至1.0bar或kg/cm2
耗氣量(正常運行) :在標準條件下0.5 m3/h (0.3 cfm)
輸出量表: 0至200 kP
環境溫度影響:在正常工作條件下，每55°C (100°F) 變化在中跨處的最大控制點位移為輸入范圍的1%
供應壓力影響:在正常操作條件下，每7 kPa (1 psi)變化在中跨處的最大控制點位移為輸入跨度的0.2%
近似質量: 4.8千克(10.6磅)，不包括元素
特征:
對于高達14 MPa (2000 psi,或140 bar或kg/cm2)的上限值:根據規定，連接為R1/4或1/4 NPT
對于14 MPa (2000 psi,或140 bar或kg/cm [sup/2])至70 MPa (10 000 psi,或700 bar或k /cm2)的上限值: R1/2螺紋連接或1/2 NPT,如指定的那樣
對于高于70 MPa (10 000 psi,或700 bar或kg/cm2)的上限值:使用9/16-18Aminco⑧接頭
數據標簽
用壓敏粘合劑固定在I J內的鋁制數據標簽。包括客戶標簽數據的空間，最多72個字符和空格。
表面處理
表殼，灰色滌綸;門，色紋理聚氨酯
43AP-FA42CPB-CA 氣動控制器43AP系列
FOXBORO Pneumatic Controller 43AP series description
The Foxboro 43AP Pneumatic controller is a versatile process instrument controller that can be used to control pressure, temperature, flow and level. Like all process controllers, the Foxboro 43AP pneumatic controller can be continuously tested
The difference between a path measurement and its set point. The Model 43AP controller continuously detects the difference between the process measurement and its set point and produces an output air signal that is a function of that difference and the type of control. Output signal transmission
To a control valve or other control device. Process measurements, set points and output signals are displayed on the controller.
The Specifications.
Accuracy:
Input pointer – +0.5% span of qualified elements
Input to output – depends on the measurement element used
Repeatability: 0.2% of span
Dead zone: 0.1% of the span
Output signal: As indicated, 20 to 100kPa, 3 to 15psi, or 0.2 to 1.0bar or kg/cm2
Air consumption (normal operation) : 0.5 m3/h (0.3 cfm) under standard conditions
Output scale: 0 to 200 kP
Ambient temperature effect: Under normal operating conditions, the maximum control point displacement at the mid-span for every 55°C (100°F) change is 1% of the input range
Supply pressure effect: Under normal operating conditions, the maximum control point displacement at the middle span for every 7 kPa (1 psi) change is 0.2% of the input span
Approximate mass: 4.8 kg (10.6 lb), excluding elements
Features:
For upper limits up to 14 MPa (2000 psi, or 140 bar or kg/cm2) : the connection is R1/4 or 1/4 NPT, as specified
For an upper limit of 14 MPa (2000 psi, or 140 bar or kg/cm [sup/2]) to 70 MPa (10,000 psi, or 700 bar or k /cm2) : R1/2 threaded connection or 1/2 NPT, as specified
For upper limits above 70 MPa (10,000 psi, or 700 bar or kg/cm2) : Use 9/16-18 AMinco ⑧ joints
Data tag
Aluminum data label secured in J with a pressure-sensitive adhesive. Includes space for customer label data, up to 72 characters and Spaces.
Surface treatment
Case, grey polyester; Door, color texture polyurethane
