469-P5-HI-A20-E-H is a motor management relay for GE Multilin. The device is a microprocessor-based relay for the protection and management of large and medium voltage motors and equipment. The 469-P5-HI-A20-E-H is an example of a multi-wire motor protection relay in the AX control inventory. There are other options.
The 469-P5-HI-A20-E-H has six output relays. These are used to start blocks, alarm, or trip. The unit can also handle fault diagnosis, power metering, motor protection and RTU functions. Diagnosis through event records, statistics, tracking memory and pre-trip data.
469-P5-HI-A20-E-H is a basic relay unit with a 5A phase CT secondary. The unit is rated for 90-300 volts DC or 70-265 volts AC @ 48-62 Hz. The output is 4-20 mah analog signal.

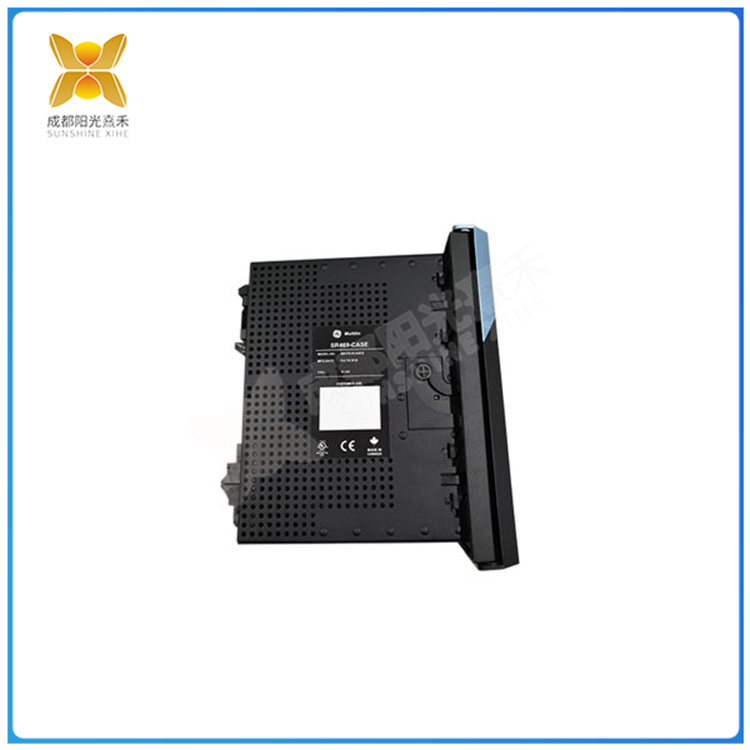

The 469-P5-HI-A20-E-H features a standard GE power management design, using a fixed housing and a drawout unit. The housing provides mechanical protection. The unit does not require any special ventilation during installation and can be cleaned with a damp cloth. The device can be used for single or two shear panels.

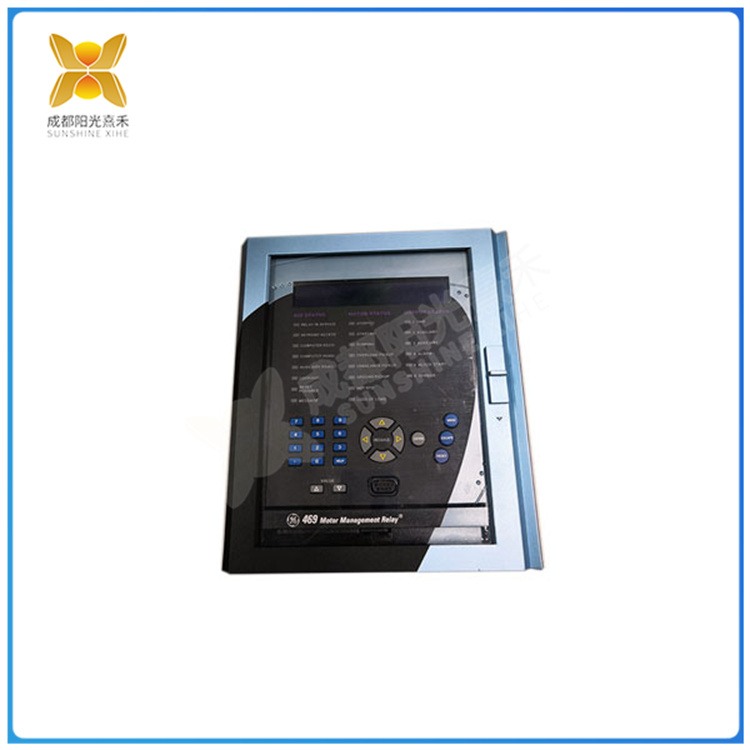

The 469-P5-HI-A20-E-H has a 40-character display on the front panel with three sets of LED indicators. These indicators are divided into 469 status indicators, motor status indicators and output relay indicators.
Underneath these, the device has a programming port, a numeric keypad, and eight additional buttons. For more details about the 469-P5-HI-A20-E-H Motor management relay, please refer to the original GE documentation. This includes a data sheet specifically for the device and a manual for the 469 motor Management relay series.
The GE relay manual will provide installation and operation instructions, which should be read and understood before unpacking. This is for your safety and to protect the life of the products you buy.
