描述

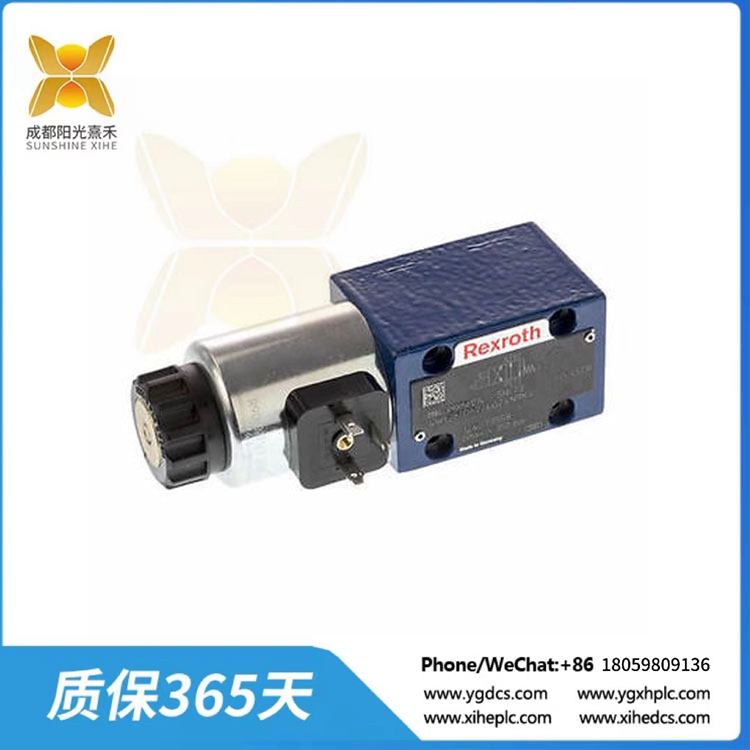

4WE6D62EG24N9K4 電磁換向閥

WE型換向閥是電磁閥操作的換向閥，可以用作電磁元件。它們控制著流的開始、停止和方向。

換向閥主要由外殼(1)、一個或兩個電磁鐵(2)、控制閥芯(3)和復位彈簧(4)組成。

在斷電狀態下，控制閥芯(3)由復位彈簧(4)保持在中間或初始位置(“O”版本除外)。

當油中的電磁鐵(2)開關通電時，控制線軸(3)從其靜止位置移動到所需的結束位置。這將根據所選符號釋放所需的流動方向。

關閉電磁鐵(2)后，將控制閥芯(3)推回中間或初始位置(帶“OF”止動閥和無“O”型彈簧閥除外)。

輔助驅動器(5)使閥門能夠在沒有磁鐵供應的情況下手動開關。

液壓系統必須適當通風，以確保正常工作。

沒有彈簧返回“O”(只可能有符號A, C和D)

這個版本是一個換向閥，有兩個開關位置和兩個沒有制動器的電磁鐵。在控制閥芯(3)上沒有彈簧復位的閥門在斷電時沒有確定的基本位置。

沒有帶“OF”扣環的彈簧返回(僅適用于符號A, C和D)

這個版本是一個換向閥，有兩個開關位置和兩個帶制動器的電磁鐵?？刂崎y芯(3)通過扣件固定在各自的開關位置。在運行過程中，可以省去對電磁鐵的永久電流供應，從而有助于節能運行。

4WE6D62EG24N9K4 電磁換向閥

Directional valves type WE are solenoid-operated directional spool valves and can be used as electromagnetic components. They control the start, stop and direction of?a flow.

The directional valves essentially consist of the housing (1), one or two electromagnets (2), the control spool (3) and the return springs (4).

In the de-energized state, the control spool (3) is held in the middle or initial position by the return springs (4) (except version “O”).

When the electromagnet (2) switching in oil is energized, the control spool (3) moves from its rest position to the desired end position. This releases the required flow direction according to the selected symbol.

After switching off the electromagnet (2), the control spool (3) is pushed back to the middle or initial position (except for valve with detent “OF” and valve without spring type “O”).

An auxiliary actuation (5) enables the valve to be switched manually without magnet supply.

The hydraulic system must be properly vented to ensure proper function.

Without spring return “O” (only possible with symbols A, C and D)

This version is?a directional valve with two switching positions and two electromagnets without detent. The valve without spring return on the control spool (3) has no defined basic position when de-energized.

Without spring return with detent “OF” (only possible for symbols A, C and D)

This version is a directional valve with two switching positions and two electromagnets with detent. The control spool (3) is fixed in the respective switching position by the detents. During operation, the permanent current supply to the electromagnet can thus be omitted, which contributes to energy-efficient operation.
