描述

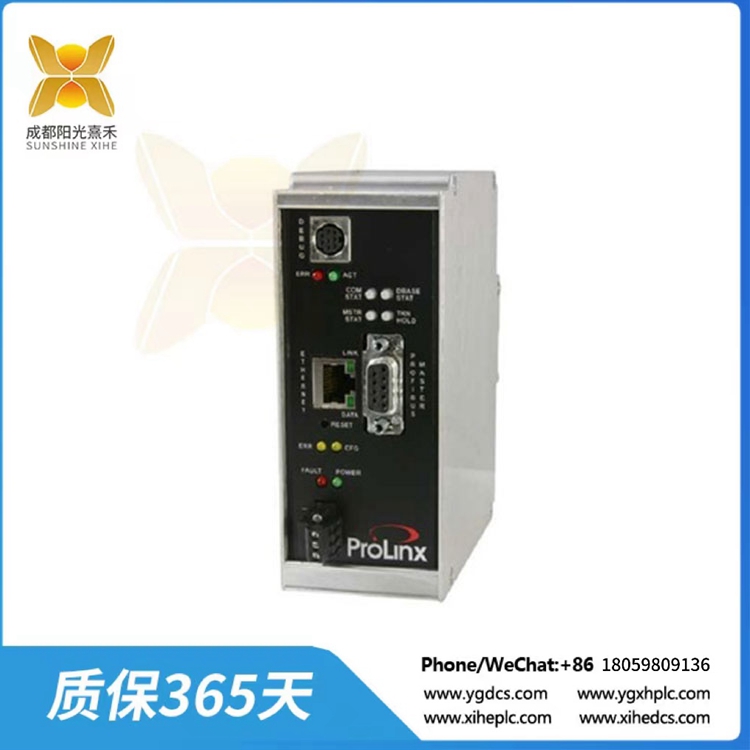

5205-DNPSNET-PDPS DNP 3.0通過以太網到PROFIBUS DP從網關

應用程序
DNPSNET-PDPS模塊是許多應用的理想解決方案，其中DNP通過以太網連接可用于將PROFIBUS DP主設備集成到系統中。以太網DNP網關是一個功能強大的模塊，同時支持客戶端和服務器，可以輕松連接到其他DNP設備。結合PROFIBUS DP Slave支持，該模塊為當今工業市場中使用的許多PROFIBUS主設備提供了非常強大的接口。該模塊應用于大多數行業，特別是制造業，石油和天然氣，電力和食品加工。

規范
內部數據庫
ProLinx模塊包含一個內部數據庫，該數據庫由應用程序數據、狀態信息和配置信息區域組成。

內部數據庫在模塊上的所有端口之間共享，并用作將信息從一個網絡上的設備傳遞到另一個網絡上的一個或多個設備的管道。

應用數據區
數據區用于協議驅動程序存儲和檢索數據，并用于協議之間的數據交換。數據庫用作向遠程設備寫入命令的源，并保存從遠程設備收集的數據。在配置文件(存儲在配置數據區域中)中定義的命令控制如何在數據庫中處理數據。

狀態數據區
該區域用于存儲每個端口的錯誤碼、計數器和端口狀態信息。

配置數據區
該區域包含模塊的配置信息，如端口配置、網絡信息和命令配置。該配置文件被下載到該區域，或從該區域上傳。

5205-DNPSNET-PDPS DNP 3.0通過以太網到PROFIBUS DP從網關

Applications
The DNPSNET-PDPS modules are the ideal solution for the many applications where DNP over Ethernet connectivity can be used to integrate a PROFIBUS DP master device into a system. The DNP over Ethernet gateway is a powerful module designed with both Client and Server support, enabling easy connection to other DNP devices. In combination with the PROFIBUS DP Slave support, the module provides a very powerful interface to the many PROFIBUS master devices which are in use in the industrial marketplace today. Applications for the module are found in most industries, especially the Manufacturing, Oil and Gas, Electrical Power and Food Processing.

Specifications
Internal Database
The ProLinx module contains an internal database that consists of areas for application data, status information, and configuration information.

The internal database is shared between all ports on the module and is used as a conduit to pass information from a device on one network to one or more devices on another network.

Application Data Area
The data area is used to store and retrieve data by the protocol drivers and for data exchange between protocols. The database is used as a source for write commands to remote devices and holds data collected from the remote devices. Commands defined in the configuration file (stored in the configuration data area) control how the data is to be handled in the database.

Status Data Area
This area is used to store error codes, counters, and port status information for each port.

Configuration Data Area
This area contains module configuration information such as port configuration, network information, and command configuration. This configuration file is downloaded to, or uploaded from, this area.
