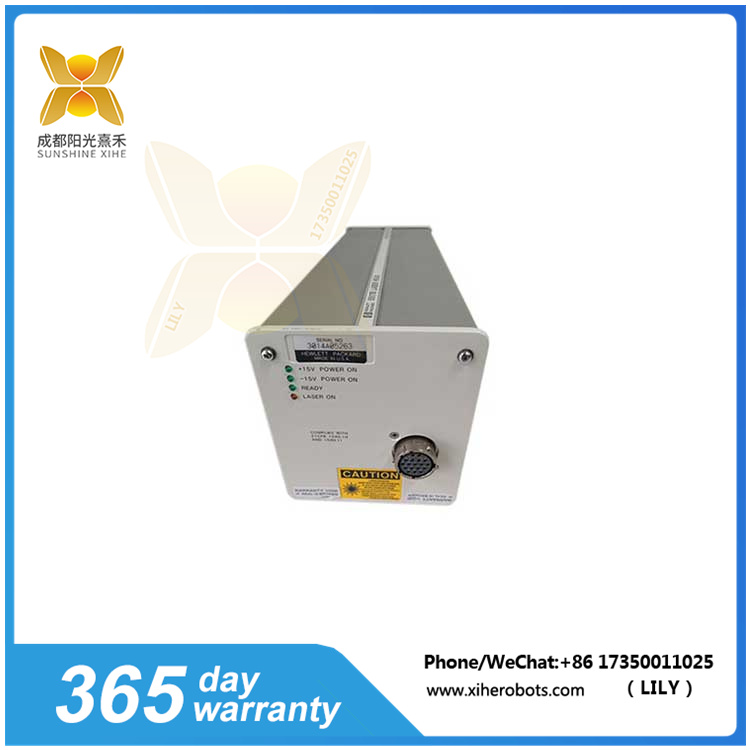

5517C AGILENT? 高性能激光頭 成都陽光熹禾

5517C AGILENT? 高性能激光頭 成都陽光熹禾

  • 激光類型：He-Ne 激光，波長為 633nm?。
  • 輸出功率穩定性：±0.02%?。
  • 束徑：標準為 6 mm，可選其他尺寸如 3 mm 或 9 mm?。
  • 束發散角：小于 0.9 mrad?。
  • 偏振：線性偏振?。
  • 相干長度：大于 15m?。
  • 最大速度：線性光學的最大速度為 711 mm/s?。

描述

產品細節說明: 5517C AGILENT? 高性能激光頭

  • 高穩定性：采用先進的溫度控制技術，確保激光輸出的長期穩定性，適用于對測量精度要求極高的應用?。
  • 低噪聲：噪聲水平極低，保證了測量的準確性?。
  • 高線性度：線性度高，適用于各種線性測量應用?。
  • 易于使用：操作簡單，便于集成到各種測量系統中?。

5517C

產品詳情參數:5517C AGILENT? 高性能激光頭

  • 激光類型：He-Ne 激光，波長為 633nm?。
  • 輸出功率穩定性：±0.02%?。
  • 束徑：標準為 6 mm，可選其他尺寸如 3 mm 或 9 mm?。
  • 束發散角：小于 0.9 mrad?。
  • 偏振：線性偏振?。
  • 相干長度：大于 15m?。
  • 最大速度：線性光學的最大速度為 711 mm/s?。
  • 參考頻率：2.4 至 3.0 MHz?。
  • 重量：3.4 kg（7.5 磅）。
  • 預熱時間：90 分鐘?。
  • 輸入功率要求：+15 V ± 0.3 V（3.0 A 最大值）和 -15 V ± 0.3 V（0.3 A 最大值）。

5517C AGILENT? 高性能激光頭? 應用領域:

Keysight 5517C 激光頭適用于基于 VME 和基于個人電腦的激光干涉儀系統等運動速度更快的應用，例如半導體光刻和平板應用 。此外，選件 009 提供了 9 mm 直徑的光束，可以與三軸干涉儀配合使用，進行更大角度范圍的測量 。

Product Details: 5517C AGILENT High Performance Laser Head
High stability: Advanced temperature control technology is adopted to ensure the long-term stability of laser output, suitable for applications that require extremely high measurement accuracy.
Low noise: The noise level is extremely low, ensuring the accuracy of the measurement.
High linearity: High linearity, suitable for various linear measurement applications.
Easy to use: Simple to operate, easy to integrate into various measurement systems.
Product details and parameters: 5517C AGILENT high-performance laser head
Laser type: He Ne laser, with a wavelength of 633nm.
Output power stability: ± 0.02%.
Beam diameter: The standard is 6 mm, and other sizes such as 3 mm or 9 mm can be selected.
Hair scattering angle: less than 0.9 mrad.
Polarization: Linear polarization.
Coherence length: greater than 15m.
Maximum speed: The maximum speed of linear optics is 711 mm/s.
Reference frequency: 2.4 to 3.0 MHz.
Weight: 3.4 kg (7.5 pounds).
Preheating time: 90 minutes.
Input power requirements:+15 V ± 0.3 V (3.0 A maximum) and -15 V ± 0.3 V (0.3 A maximum).
Application areas of 5517C AGILENT high-performance laser head:

The Keysight 5517C laser head is suitable for faster motion applications such as VME based and PC based laser interferometer systems, such as semiconductor lithography and flat panel applications. In addition, option 009 provides a beam with a diameter of 9 mm, which can be used in conjunction with a three-axis interferometer for larger angle range measurements.
