描述

可控硅是P1N1P2N2四層三端結構元件，共有三個PN結，分析原理時，可以把它看作由一個PNP管和一個NPN管所組成，其等效圖解如右圖所示。雙向可控硅：雙向可控硅是一種硅可控整流器件，也稱作雙向晶閘管。這種器件在電路中能夠?qū)崿F(xiàn)交流電的無觸點控制，以小電流控制大電流，具有無火花、動作快、壽命長、可靠性高以及簡化電路結構等優點。從外表上看，雙向可控硅和普通可控硅很相似，也有三個電極。但是，它除了其中一個電極G仍叫做控制極外，另外兩個電極通常卻不再叫做陽極和陰極，而統稱為主電極Tl和T2。它的符號也和普通可控硅不同，是把兩個可控硅反接在一起畫成的，如圖2所示。它的型號，在我國一般用“3CTS”或“KS”表示；國外的資料也有用“TRIAC”來表示的。雙向可控硅的規格、型號、外形以及電極引腳排列依生產廠家不同而有所不同，但其電極引腳多數是按T1、T2、G的顧序從左至右排列(觀察時，電極引腳向下，面對標有字符的一面)。市場上最常見的幾種塑封外形結構雙向可控硅的外形及電極引腳排列如下圖1所示。

Thyristor is a P1N1P2N2 four layer three terminal structural element with three PN junctions. When analyzing the principle, it can be regarded as composed of a PNP transistor and an NPN transistor, and its equivalent diagram is shown in the right figure. Bidirectional thyristor: Bidirectional thyristor is a silicon controlled rectifier device, also known as a bidirectional thyristor. This device can achieve contactless control of AC power in circuits, controlling large currents with small currents. It has the advantages of no sparks, fast action, long service life, high reliability, and simplified circuit structure. From the appearance, bidirectional thyristor is very similar to ordinary thyristor, with three electrodes. However, except for one electrode G, which is still called the control electrode, the other two electrodes are usually no longer called the anode and cathode, but collectively referred to as the main electrodes Tl and T2. Its symbol is also different from that of ordinary thyristors, which is drawn by reversing the connection of two thyristors together, as shown in Figure 2. Its model is generally represented by “3CTS” or “KS” in China; Foreign data can also be represented by ‘TRIAC’. The specifications, models, appearance, and electrode pin arrangement of bidirectional thyristor vary depending on the manufacturer, but most of its electrode pins are arranged from left to right in the order of T1, T2, and G (when observed, the electrode pins are facing downwards and facing the side marked with characters). The appearance and electrode pin arrangement of the most common plastic encapsulated structure bidirectional thyristor in the market are shown in Figure 1.

5SHY3545L0014

5SHY4045L0006 3BHB030310R0001 3BHE039203R0101 GVC736CE101

5SHY3545L0009 3BHB013085R0001 3BHE009681R0101 GVC750BE101

5SHY3545L0014 3BHB013085R0001 3BHE039203R0101 GVC736CE101

5SHY5055L0002 3BHE019719R0101 GVC736BE101

5SHY3545L0016 3BHB020720R0002 3BHE019719R0101 GVC736BE101

5SHY4045L0004 3BHB021400R0002 3BHE039203R0101 GVC736CE101

5SHY3545L0016 3BHB020720R0002 3BHE039203R0101 GVC736CE101

5SHY4045L0003 3BHB021400 3BHE019719R0101 GVC736BE101

5SHY3545L0010 3BHB013088R0001 3BHE009681R0101 GVC750BE101

5SHY3545

5SHY35L4503 3BHB004693R0001 3BHB004692R0002 5SXE01-0127

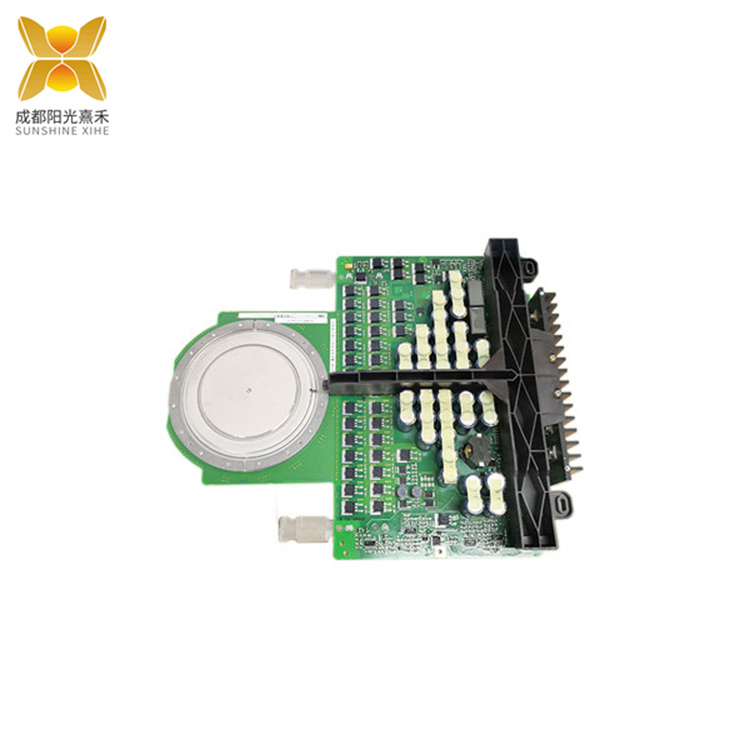

5SHY3545L0009

5SHY4045L0001 3BHB018162R0001 3BHE009681R0101 GVC750BE101

5SHY4045L0001? 3BHB018162R0001

5SHY6545L0001 AC10272001R0101 5SXE10-0181

5SHY35L4520 5SXE10-0181 AC10272001R0101

5SHY3545L0016? 3BHB019719R0101 GVC736BE101 5SXE06-0160

5SHY5045L0020

5SHY35L4512

5SHY35L4520

5SHY35L4510

5SHY3545L0005

5SHY3545L0003
