描述

6DD1642-0BC0 模擬量輸出模塊

特點:
用于SIMADYN D系統輸出模擬電壓信號
(8)渠道
輸出可以加載高達10 mA
西門子6DD1642-0BC0 EA12模擬輸出模塊用于SIMADYN D系統，用于輸出模擬電壓信號(-10至+10V，精度:14位或1mV)。

這些模擬輸出的地址由依賴于插槽的可編程地址解碼器分配。

EA12模塊有8個通道。信號輸出被路由到20路帶狀電纜連接器X5。除了8個信號外，每個信號還有一個接地端子，另外還有兩個接地和兩個屏蔽引腳。

信號也可以在雙測試插座(直徑。= 2.3 mm，每個插座用于信號和接地)，例如在系統啟動時。

輸出可負載高達10 mA，并可防止長達120秒的短路。

注意:連接器X5和相關的雙測試插座的總信號負載不得超過10ma。

可以配置各個通道的輸出格式。這是通過指定2的乘數來實現的(每個通道額外)。

50針帶狀電纜連接器X6可以忽略，如果在所有可用的前板

6DD1642-0BC0 模擬量輸出模塊

Features:
Used in the SIMADYN D System for Outputting Analog Voltage Signals
(8) Channels
Outputs Can be Loaded with Up to 10 mA

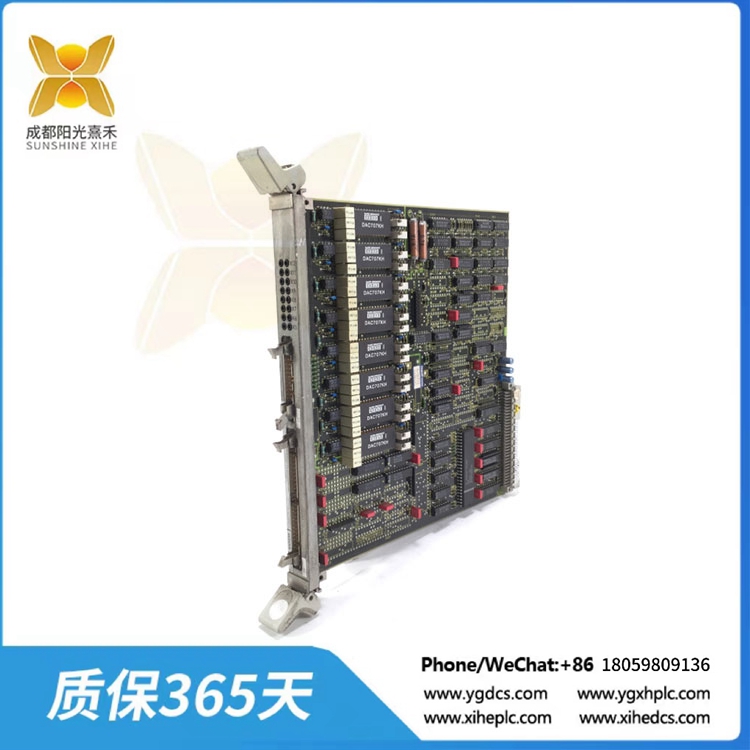

The Siemens 6DD1642-0BC0 EA12 Analog Output Module is used in the SIMADYN D system for outputting analog voltage signals (-10 to +10V, accuracy: 14 bits or 1mV).

The addresses of these analog outputs are assigned by a programmable address decoder dependent on the slot.

The EA12 module has 8 channels. The signal outputs are routed to the 20-way ribbon cable connector X5. In addition to the 8 signals there is one ground terminal for each and, in addition, two ground and two shield pins.

The signals can also be tapped at the double test sockets (dia. = 2.3 mm, one socket each for signal and ground) e.g. on system startup.

The outputs can be loaded with up to 10 mA and are proof against short circuit up to a period of 120 sec.

Caution: the total signal load at connector X5 and the associated double test socket must not exceed 10 mA.

The output format for the individual channels can be configured. This is done by specifying a multiplication factor in powers of 2 (extra for each channel).

The 50-pin ribbon cable connector X6 can be ignored, if at all available on the frontplate
