描述

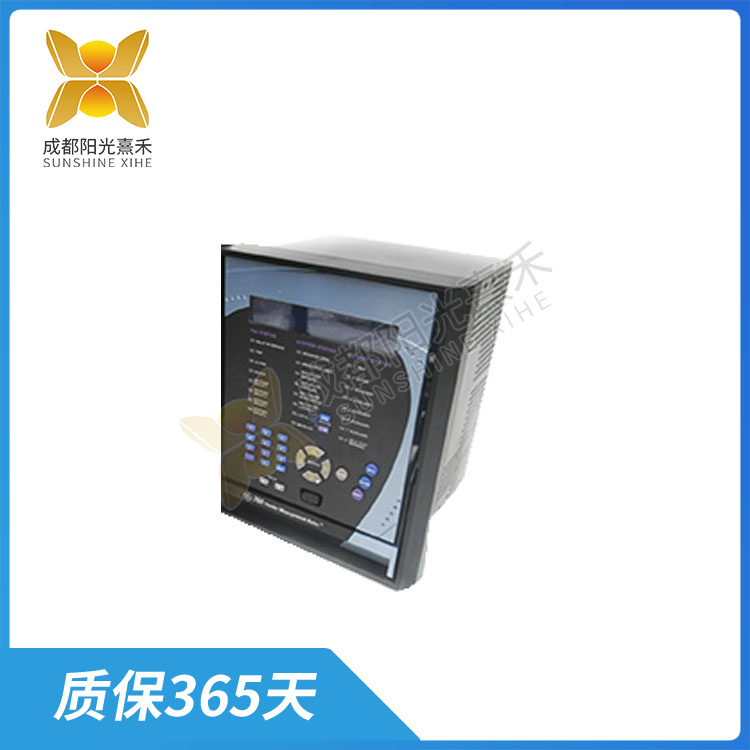

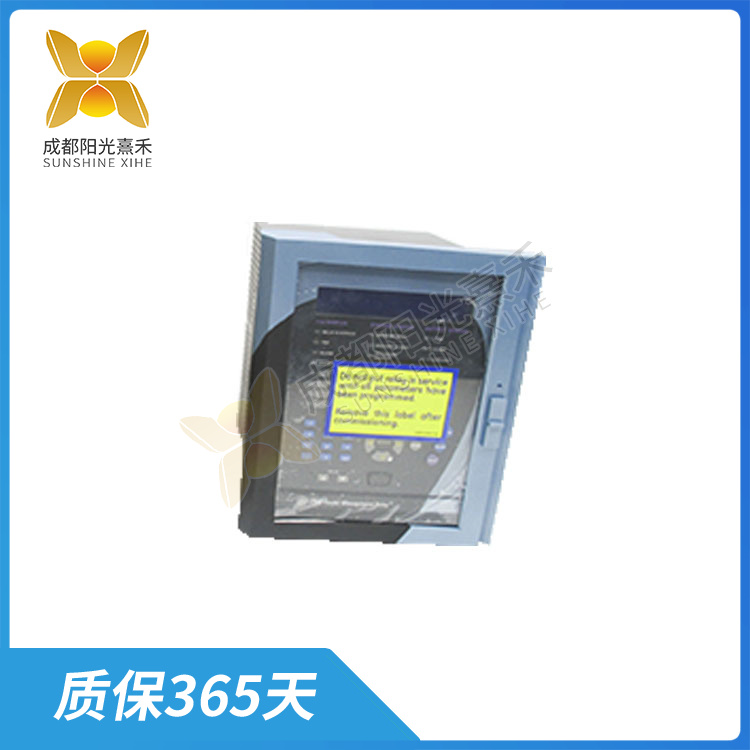

760-P5-G5-S5-HI-A20-R GE 保護繼電器

760-P5-G5-S5-HI-A20-R 是一款 GE Multilin 的保護繼電器。這款繼電器是一種饋線管理繼電器，具有以下主要特點：

輸入配置：它設計了 5 A 相電流輸入、5 A 零序電流輸入和 5 A 靈敏接地電流輸入。這種配置與系列中其他可能接受 1A、10A、20A 或某種組合輸入的裝置形成對比，因此用戶在購買時應確保所選裝置適合其系統需求。

安裝方式：這款裝置可以安裝在 19 英寸的面板上。

電源需求：它提供額定值為 88-300 VCD、70-265 VAC @ 48-62 Hz 的電源。

輸出功能：該裝置具有八個 4-20 毫安模擬輸出。

顯示與通信：它包括一個紅色斷路器閉合 LED 和一個帶以太網 10Base T 選項的增強型顯示屏。增強型面板擁有更寬的 LCD 和更簡潔的設計。以太網 10Base T 選項允許繼電器連接到更大的網絡并進行遠程交互。

監控功能：760-P5-G5-S5-HI-A20-R 具有數據記錄、示波器、波形捕獲和實際值計量等多項監控功能。用戶可以通過該裝置的 40 個字符的字母數字液晶顯示器或使用 GE Multilin 的 EnerVista 760 軟件程序來檢查其中的一些數據。該軟件程序提供了更精簡和擴展的用戶界面。繼電器記錄的數據可以進行趨勢分析、繪圖和導出以供進一步查看。

綜上，這款保護繼電器具有高度的可配置性、靈活的通信能力和強大的監控功能，適用于需要精確電流控制和監測的電力系統。在使用之前，用戶應確保其了解并遵循相關的安裝、配置和維護指南，以確保其安全、有效的運行。

760-P5-G5-S5-HI-A20-R GE 保護繼電器

The 760-P5-G5-S5-HI-A20-R is a GE Multilin protective relay. This relay is a feeder management relay with the following key features:

Input configuration: It is designed with 5 A phase current input, 5 A zero sequence current input and 5 A sensitive ground current input. This configuration is in contrast to other devices in the family that may accept 1A, 10A, 20A, or some combination of inputs, so users should make sure that the selected device is suitable for their system needs when purchasing.

How to mount: The device can be mounted on a 19-inch panel.

Power requirements: It offers power rated from 88-300 VCD, 70-265 VAC @ 48-62 Hz.

Output function: The unit has eight 4-20 mah analog outputs.

Display and communication: It includes a red circuit breaker closure LED and an enhanced display with Ethernet 10Base T option. The enhanced panel has a wider LCD and a simpler design. The Ethernet 10Base T option allows relays to connect to larger networks and interact remotely.

Monitoring function: 760-P5-G5-S5-HI-A20-R has a number of monitoring functions such as data recording, oscilloscope, waveform capture and actual value measurement. Users can examine some of this data through the device’s 40-character alphanumeric LCD display or using GE Multilin’s EnerVista 760 software program. The software program provides a more streamlined and extended user interface. Data recorded by relays can be trended, plotted, and exported for further review.

In summary, this protective relay has a high degree of configurability, flexible communication capabilities and powerful monitoring functions, suitable for power systems requiring accurate current control and monitoring. Prior to use, users should ensure that they understand and follow the relevant installation, configuration and maintenance guidelines to ensure their safe and effective operation.
