描述

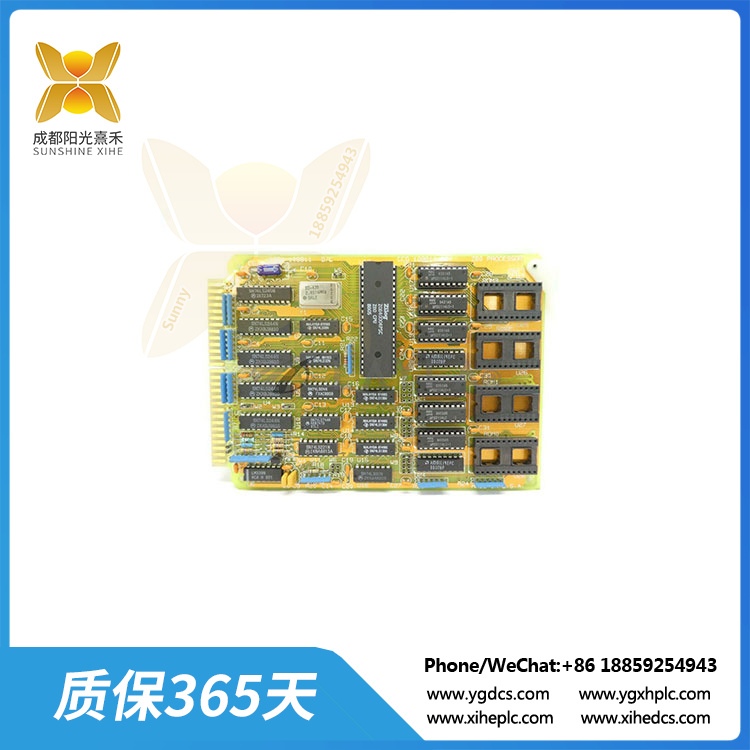

810-001316-002 電機控制器板

810-001316-002是一款電機控制器板，控制動力電源與驅動電機之間能量傳輸?shù)难b置，主要由主控板、驅動板、IGBT、電流傳感器、支撐電容、被動泄放電阻、銅排、散熱器、外殼、接插件、線束等部分組成。其主要功能包括上下電管理、扭矩控制、電機的正反轉、主動放電功能、蠕行控制、駐坡-零轉速控制、防抖、能量回收、熱管理功能等，同時也提供電機保護功能，例如過流保護、過壓保護、過熱保護等，從而保證電機運行的安全性和穩定性。

電機控制器板的核心部分是主控板，810-001316-002其電路包括主芯片電路、電源芯片電路、通訊電路、解碼器電路、存儲芯片電路、溫度采集電路、信號放大電路、PWM輸出電路等。

電機控制器板在工業自動化控制、家用電器和智能家居領域、汽車電子領域等均有廣泛的應用。例如，在新能源汽車中，電機控制器板可以將控制器發出的控制信號轉換為電機動力輸出，并可完成電機的調速、保護等功能。

此外，隨著技術的發展，810-001316-002領域也涌現出了一些新技術，如智能控制技術、高效控制技術和無感控制技術等。這些新技術通過優化控制算法、提高控制精度和效率，進一步提升了電機控制器板的性能和應用范圍。

請注意，不同的電機和控制系統可能需要不同的電機控制器板設計，因此在實際應用中，需要根據具體需求進行選擇和配置。

810-001316-002 電機控制器板

810-001316-002 is a motor controller board, which controls the energy transmission between the power supply and the drive motor. It is mainly composed of a main control board, a drive board, an IGBT, a current sensor, a support capacitor, a passive discharge resistor, a copper bar, a radiator, a shell, a connector, and a wire harness. Its main functions include power-on and power-off management, torque control, positive and negative motor rotation, active discharge function, creep control, slop-zero speed control, anti-shake, energy recovery, thermal management function, etc., but also provide motor protection functions, such as overcurrent protection, overvoltage protection, overheating protection, etc., so as to ensure the safety and stability of the motor operation.

The core part of the motor controller board is the main control board, 810-001316-002 its circuit includes the main chip circuit, power chip circuit, communication circuit, decoder circuit, memory chip circuit, temperature acquisition circuit, signal amplification circuit, PWM output circuit, etc.

Motor controller board is widely used in industrial automation control, household appliances and smart home fields, automotive electronics and so on. For example, in new energy vehicles, the motor controller board can convert the control signal sent by the controller into the motor power output, and can complete the motor speed regulation, protection and other functions.

In addition, with the development of technology, some new technologies have also emerged in the field of 810-001316-002, such as intelligent control technology, efficient control technology and non-inductive control technology. These new technologies further improve the performance and application range of motor controller boards by optimizing control algorithms, improving control accuracy and efficiency.

Please note that different motors and control systems may require different motor controller board designs, so in practical applications, it is necessary to select and configure according to specific needs.
