描述

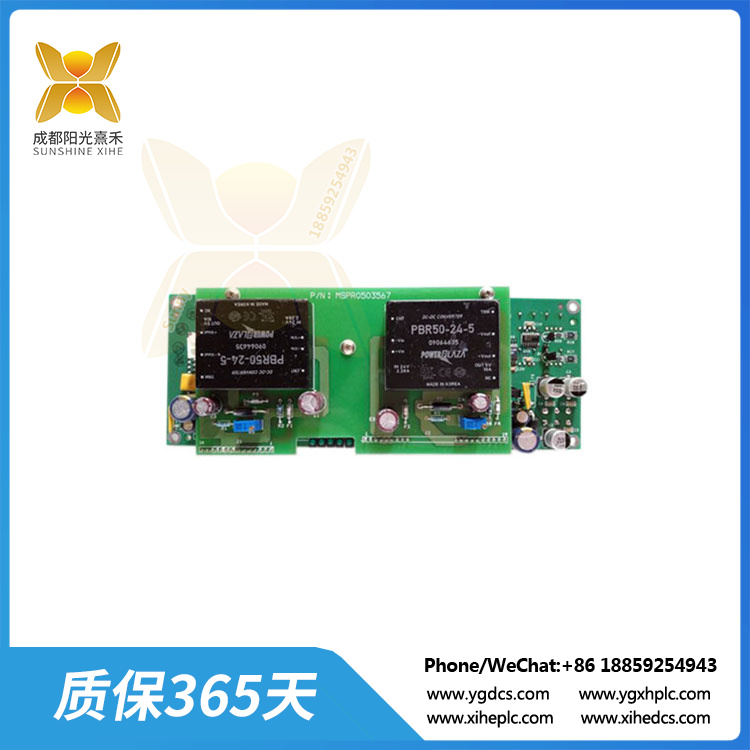

810-010473-401 分度器接口板

810-010473-401是一款分度器接口板，是一種專用的電子接口板件，主要用于連接分度器（也稱為編碼器或旋轉編碼器）與控制系統或設備。分度器是一種用于測量旋轉角度、速度或位置的傳感器，廣泛應用于各種機械設備和自動化系統中。分度器接口板的主要功能是提供信號轉換、傳輸和保護，確保分度器與控制系統之間的穩定通信和可靠工作。

具體而言，810-010473-401具備以下功能和特點：

1. 信號轉換與傳輸：分度器接口板能夠接收分度器產生的原始信號（通常是脈沖信號），然后將其轉換為控制系統可以識別和處理的數字或模擬信號。這樣，控制系統就能夠根據分度器的輸出信號來準確判斷旋轉的角度、速度等信息。

2. 接口適配與連接：接口板提供了標準化的接口，以便與分度器和控制系統進行連接。這些接口可能包括電氣連接器、端子排或插座等，確保信號能夠穩定可靠地傳輸。

3. 電源供應與保護：分度器接口板通常還負責為分度器提供穩定的電源供應，確保其正常工作。同時，接口板還具備過壓、過流等保護功能，以防止因電源異?；蛲獠扛蓴_導致的設備損壞或故障。

4. 信號調理與濾波：為了提高分度器信號的準確性和穩定性，接口板可能還包含信號調理電路，如濾波器和放大器。這些電路能夠消除噪聲、平滑信號或進行其他必要的預處理。

5. 通信協議支持：根據分度器和控制系統的要求，接口板可能支持不同的通信協議，如RS-485、CAN總線、以太網等。這有助于實現分度器與控制系統之間的高效通信和數據傳輸。

810-010473-401的應用范圍廣泛，涉及工業自動化、機器人技術、數控機床、航空航天、能源等領域。在選擇分度器接口板時，需要考慮分度器的類型、控制系統的要求以及工作環境條件等因素，以確保接口板能夠滿足實際應用需求并提供可靠的性能。

810-010473-401 分度器接口板

810-010473-401 is a divider interface board, a specialized electronic interface board primarily used to connect a divider (also known as an encoder or rotary encoder) to a control system or device. A classifier is a sensor used to measure rotation Angle, speed or position, which is widely used in various mechanical equipment and automation systems. The main function of the dispatcher interface board is to provide signal conversion, transmission and protection to ensure stable communication and reliable operation between the dispatcher and the control system.

Specifically, 810-010473-401 has the following functions and features:

Signal conversion and transmission: The divider interface board can receive the original signal (usually a pulse signal) generated by the divider and then convert it into a digital or analog signal that the control system can recognize and process. In this way, the control system can accurately judge the rotation Angle, speed and other information according to the output signal of the classifier.

Interface adaptation and connectivity: The interface board provides standardized interfaces for connecting to the dispatcher and control system. These interfaces may include electrical connectors, terminal blocks, or receptacles to ensure stable and reliable transmission of signals.

Power supply and protection: The divider interface board is also usually responsible for providing a stable power supply to the divider to ensure its proper operation. At the same time, the interface board also provides overvoltage and overcurrent protection functions to prevent device damage or faults caused by abnormal power supply or external interference.

Signal conditioning and filtering: To improve the accuracy and stability of the amplifier signal, the interface board may also contain signal conditioning circuits, such as filters and amplifiers. These circuits can eliminate noise, smooth signals, or perform other necessary preprocessing.

Communication protocol support: Depending on the requirements of the dispatcher and control system, the interface board may support different communication protocols, such as RS-485, CAN bus, Ethernet, etc. This helps to achieve efficient communication and data transmission between the dispatcher and the control system.

810-010473-401 has a wide range of applications, involving industrial automation, robotics, CNC machine tools, aerospace, energy and other fields. When selecting a dispatcher interface board, consider the type of the dispatcher, requirements of the control system, and working environment conditions to ensure that the interface board can meet the actual application requirements and provide reliable performance.
