描述

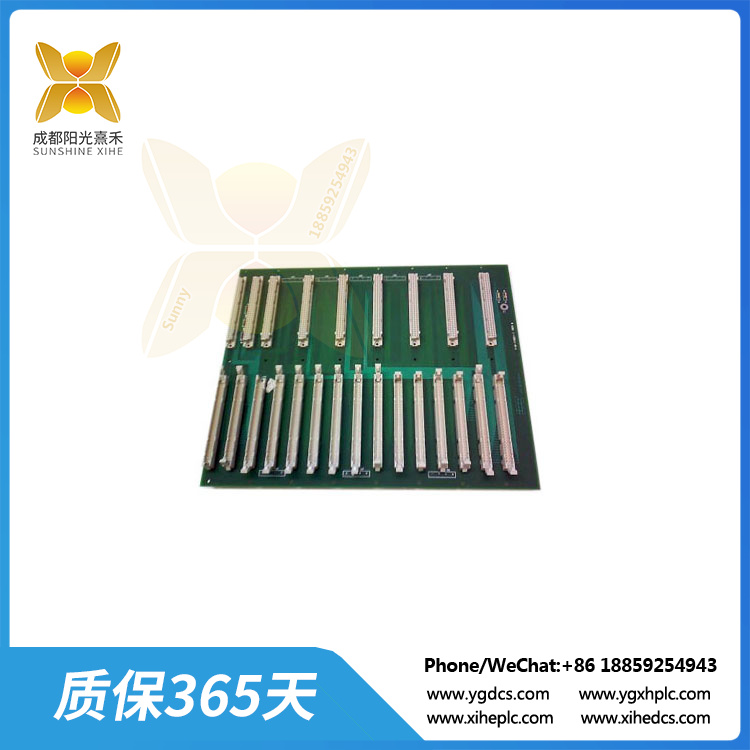

810-017001-010 邊緣檢測接頭板

810-017001-010是一款邊緣檢測接頭板，它的工作原理主要基于圖像處理技術和專門的邊緣檢測算法。以下是其工作原理的基本步驟：

1. 信號輸入：邊緣檢測接頭板通過接口接收來自圖像采集設備（如攝像頭、傳感器等）的原始圖像信號。這些信號可以是模擬信號或數字信號，具體取決于接頭板的設計和接口標準。

2. 信號預處理：在邊緣檢測之前，接頭板可能首先對輸入信號進行預處理，以消除噪聲、增強圖像質量或調整圖像尺寸等。這有助于提高后續邊緣檢測的準確性和可靠性。

3. 邊緣檢測算法應用：接頭板內置了專門的邊緣檢測算法，這些算法可以是基于梯度的、基于閾值的、基于形態學的或基于機器學習的等。算法根據圖像的灰度、顏色、紋理等特征變化來識別邊緣。具體而言，算法會計算圖像中每個像素或其鄰近區域的變化程度，并據此確定是否存在邊緣。

4. 后處理與優化：在邊緣檢測后，接頭板可能還會進行后處理操作，如濾波、平滑、細化等，以消除偽邊緣、填補斷裂的邊緣或提高邊緣的連續性。這些后處理步驟有助于提升邊緣檢測結果的準確性和視覺效果。

5. 輸出與通信：經過邊緣檢測和處理后的結果，接頭板會通過其輸出接口將結果傳輸?shù)狡渌O(shè)備或系統。輸出可以是數字信號、模擬信號或特定的通信協議，以便與其他設備進行數據交換和共享。

810-017001-010 邊緣檢測接頭板

810-017001-010 is an edge detection splice board, its working principle is mainly based on image processing technology and a special edge detection algorithm. Here are the basic steps of how it works:

Signal input: The edge detection connector receives the original image signal from the image acquisition device (such as camera, sensor, etc.) through the interface. These signals can be analog or digital, depending on the design of the connector board and the interface standard.

Signal preprocessing: Before edge detection, the splice board may first preprocess the input signal to eliminate noise, enhance image quality, or adjust image size. This helps improve the accuracy and reliability of subsequent edge detection.

Edge detection algorithm application: Specialized edge detection algorithms are built into the splice board, which can be gradient-based, threshold based, morphology-based or machine learning-based. The algorithm identifies edges according to the feature changes of the image such as gray scale, color and texture. Specifically, the algorithm calculates how much each pixel in the image, or its immediate vicinity, has changed, and based on that determines whether an edge exists.

Post-processing and optimization: After edge detection, the joint plate may also undergo post-processing operations, such as filtering, smoothing, refining, etc., to eliminate false edges, fill in broken edges, or improve edge continuity. These post-processing steps help to improve the accuracy and visual effect of edge detection results.

Output and communication: After the result of edge detection and processing, the connector board will transmit the result to other devices or systems through its output interface. The output can be a digital signal, an analog signal, or a specific communication protocol for data exchange and sharing with other devices.
