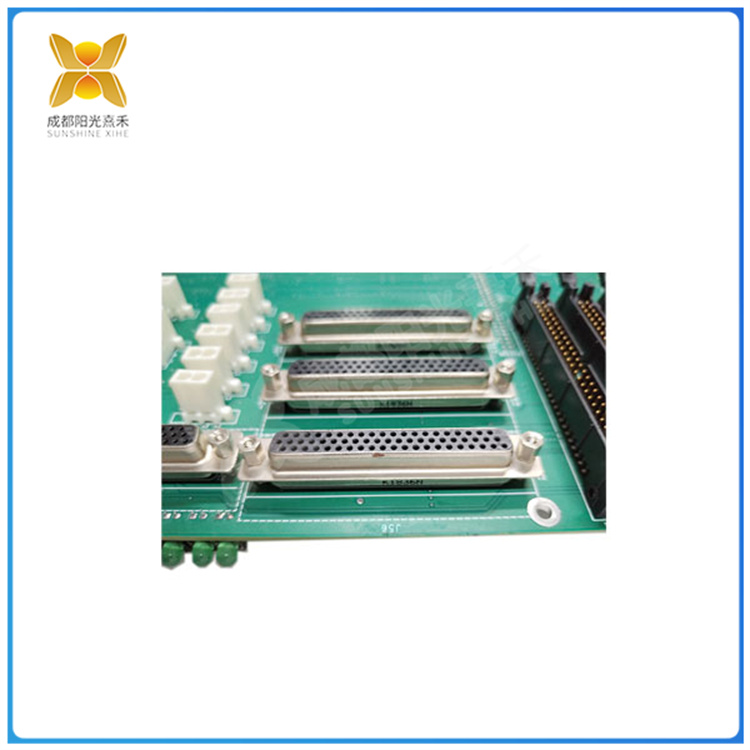

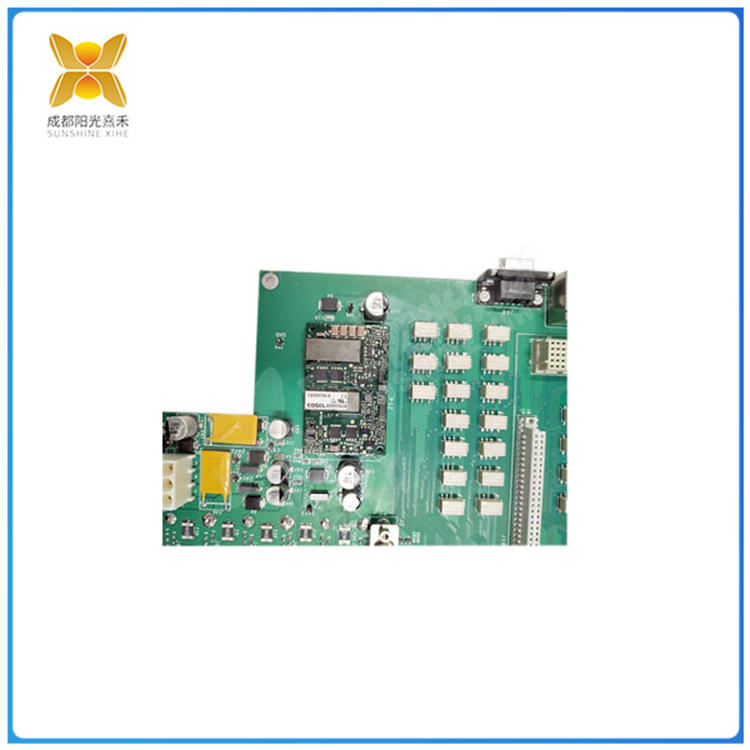

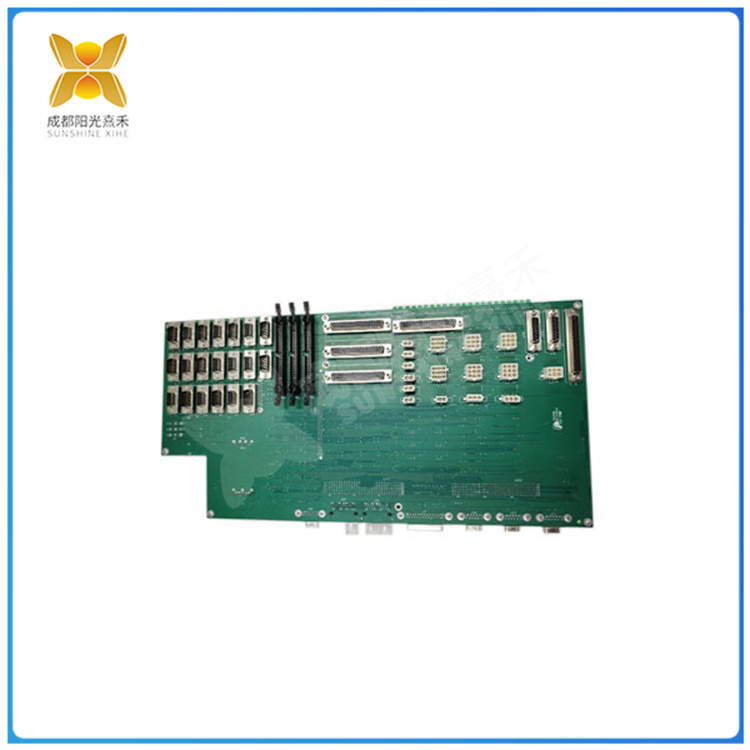

810-073479-215 處理器和存儲器

網卡上面裝有處理器和存儲器(包括RAM和ROM)。網卡和局域網之間的通信是通過電纜或雙絞線以串行傳輸方式進行的,而網卡和計算機之間的通信則是通過計算機主板上的I/O總線以并行傳輸方式進行。因此,網卡的一個重要功能就是要進行串行/并行轉換。由于網絡上的數據率和計算機總線上的數據率并不相同,因此在網卡中裝有對數據進行緩存的存儲芯片。

分類:

描述

810-073479-215 處理器和存儲器

網卡上面裝有處理器和存儲器(包括RAM和ROM)。網卡和局域網之間的通信是通過電纜或雙絞線以串行傳輸方式進行的,而網卡和計算機之間的通信則是通過計算機主板上的I/O總線以并行傳輸方式進行。因此,網卡的一個重要功能就是要進行串行/并行轉換。由于網絡上的數據率和計算機總線上的數據率并不相同,因此在網卡中裝有對數據進行緩存的存儲芯片。
在安裝網卡時將管理網卡的設備驅動程序安裝在計算機的操作系統中,這個驅動程序以后就會告訴網卡,應當從存儲器的什么位置上將局域網傳送過來的數據塊存儲下來。網卡還要能夠?qū)崿F(xiàn)以太網協議。
網卡并不是立的自治單元,因?yàn)榫W(wǎng)卡本身不帶電源而是使用所插入的計算機的電源,并受該計算機的控制,因此網卡可看成為一個半自治的單元。當網卡收到一個有差錯的幀時,它就將這個幀丟棄而不必通知它所插入的計算機。當網卡收到一個正確的幀時,它就使用中斷來通知該計算機并交付給協議棧中的網絡層。當計算機要發送一個IP數據報時,它就由協議棧向下交給網卡組裝成幀后發送到局域網。
隨著集成度的不斷提高,網卡上的芯片的個數不斷的減少,雖然現在各廠家生產的網卡種類繁多,但其功能大同小異。網卡的主要功能有以下三個:
1. 數據的封裝與解封:發送時將上一層交下來的數據加上首部和尾部,成為以太網的幀。接收時將以太網的幀剝?nèi)ナ撞亢臀膊?,然后送交上一層?br /> 2. 鏈路管理:主要是CSMA/CD協議的實現;
3. 編碼與譯碼:即曼徹斯特編碼與譯碼。

810-073479-215 處理器和存儲器

A network card contains a processor and memory (including RAM and ROM). The communication between the network card and the LAN is carried out by serial transmission through the cable or twisted pair, while the communication between the network card and the computer is carried out by parallel transmission through the I/O bus on the computer motherboard. Therefore, an important function of network cards is to perform serial/parallel conversion. Since the data rate on the network and the data rate on the computer bus are not the same, a memory chip is installed in the network card to cache the data.
When installing the network card, install the device driver that manages the network card in the computer’s operating system. This driver will later tell the network card where to store the data block transferred from the LAN from the memory. The network card must also be able to implement the Ethernet protocol.
The network card is not an autonomous unit, because the network card itself does not have a power supply but uses the power supply of the inserted computer and is controlled by the computer, so the network card can be seen as a semi-autonomous unit. When the network card receives an errant frame, it discards the frame without notifying the computer it is plugged into. When the network card receives a correct frame, it uses an interrupt to notify the computer and deliver it to the network layer in the protocol stack. When the computer wants to send an IP datagram, it is sent from the protocol stack down to the network card to assemble into frames and then sent to the LAN.
With the continuous improvement of integration, the number of chips on the network card continues to decrease, although there is a wide variety of network cards produced by various manufacturers, but its function is much the same. The main functions of network cards are as follows:
1. Data encapsulation and decapsulation: When sending, the data handed down by the previous layer is added to the header and tail to become the Ethernet frame. When receiving Ethernet frames, the header and tail are stripped, and then sent to the upper layer;
2. Link management: mainly the implementation of CSMA/CD protocol;
3. Coding and decoding: namely Manchester coding and decoding.
