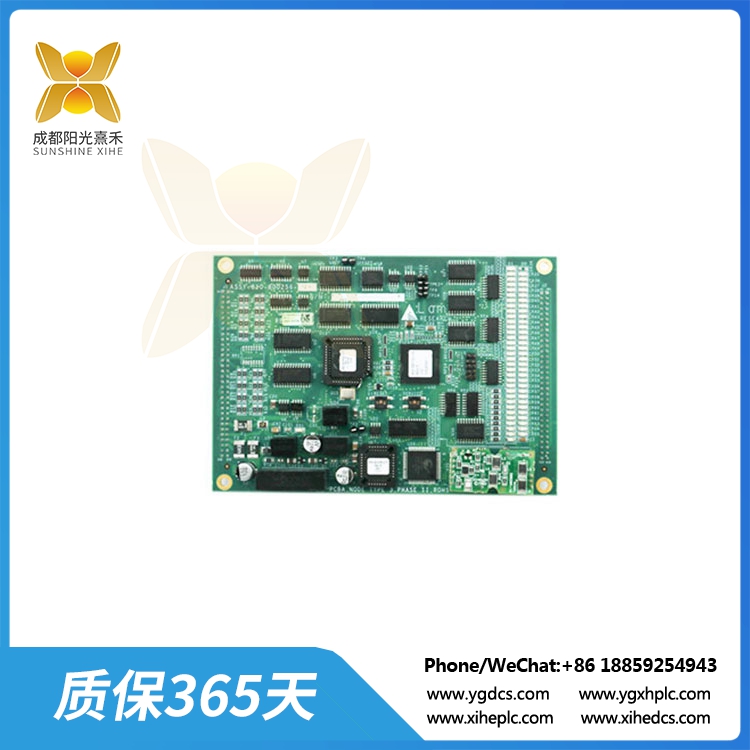

810-800256-015 REV.C 半導體基板

輸入電路連接輸入電路是PLC接收信號(-般為0-40MA直 流電流或0-10V直流電壓信號，用于模擬)的端口，輸入連接是指外部輸入器件(任何無源觸點和集電極打開的NPN三極管)通過輸入電路閉合,同時輸入指示發光二_極管。常用的外部輸入設備包括按鈕、接近開關、轉換開關、dip開關、 各種電感器等，它們是向系統發出各種控制信號的主要命令電器。

(1) PLC輸入模塊與主電氣設備的連接
圖中松下PLC為直流點輸入，即這樣輸入點共用一-個共同端子COM, COM端帶DC24V電源，編寫程序時要注意使用的外部設備是常閉觸點還是常開觸點。

輸入端電氣原理圖中的停止按鈕SB0使用串在控制線上的常閉觸點進行關斷控制。啟動按鈕SB1,觸點常開。設計中的兩個梯形圖實現了相同的控制功能，但停止信號X0使用不同的觸點類型，因此連接端點的外部停止按鈕觸點類型不同。

/O分配s0-x0、s_ 1-x1,輸出K0-Y0。 當外部使用長閉合觸點時，不操作按鈕，輸出Y0正常連接,在PLC控制系統中，外部開關無論啟動或停止一般選擇常開型。

(2)接近開關與PLC輸入模塊之間的連接在PLC控制系統設計中的布線工作比例很小，但它是編程設計的基礎。為了保證接線工作正確，需要對PLC的輸入輸出電路有一個清晰的認識。

1. PLC直流輸入電路:有源型(共陽極)輸入電路，漏電型(共陰極)輸入電路。所以PLC漏電輸入電路的COM端是外部直流電源的正極,如西門子S7-400PLC直流輸入模塊的COM端必須接在外部直流電源的正極上。所以西門子PLC輸入的信號為低壓信號,如果外部信號為高壓信號則應通過中間繼電器進行轉換。

2.PLC交流輸入電路電壓一般為AC120V或AC230V, 經過電阻限流和電容隔離后整流成直流三個環節，因此輸入信號延遲時間比直流電路長,但輸入端電壓高，輸入信號可靠性高，- 般用于環境惡劣，響應性不高的場合。

(3)開關信號與PLC輸入模塊的連接對于不同的PLC輸入電路應正確選擇傳感器(NPN或PNP)的輸入方式，NPN型傳感器動作時，OUT端為0V，(NPN型輸出端OUT應接漏電型PLC輸入端)輸出低電平信號。PNP傳感器動作, OUT端為+V,輸出高電平信號。

810-800256-015 REV.C 半導體基板

Input circuit connection The input circuit is the port of the PLC to receive the signal (generally 0-40MA direct current or 0-10V DC voltage signal, for analog), the input connection refers to the external input device (any passive contact and collector open NPN triode) closed through the input circuit, while the input indicating light emitting diode. Commonly used external input devices include buttons, proximity switches, transfer switches, dip switches, various inductors, etc., which are the main command appliances that send various control signals to the system.

(1) Connection between PLC input module and main electrical equipment
The Panasonic PLC in the figure is a DC point input, that is, the input point shares a common terminal COM, COM end with DC24V power supply, when writing the program, pay attention to the use of external equipment is normally closed contact or normally open contact.

The stop button SB0 in the input electrical schematic uses normally closed contacts strung along the control line for shutdown control. Start button SB1, contact normally open. The two trapezoids in the design implement the same control function, but the stop signal X0 uses different contact types, so the external stop button contact types connecting the endpoints are different.

/O allocates s0-x0, s_ 1-x1, and outputs K0-Y0. When the external use of long closed contact, do not operate the button, the output Y0 normal connection, in the PLC control system, the external switch whether start or stop generally choose normally open type.

(2) The connection between the proximity switch and the PLC input module has a small wiring work proportion in the design of the PLC control system, but it is the basis of programming design. In order to ensure that the wiring works correctly, it is necessary to have a clear understanding of the input and output circuits of the PLC.

1.PLC DC input circuit: active type (common anode) input circuit, leakage type (common cathode) input circuit. Therefore, the COM end of the PLC leakage input circuit is the positive terminal of the external DC power supply, such as the COM end of the Siemens S7-400PLC DC input module must be connected to the positive terminal of the external DC power supply. Therefore, the input signal of Siemens PLC is a low-voltage signal, and if the external signal is a high-voltage signal, it should be converted by an intermediate relay.

2.PLC AC input circuit voltage is generally AC120V or AC230V, rectified into DC three links after resistance current limiting and capacitor isolation, so the input signal delay time is longer than the direct current circuit, but the input terminal voltage is high, the input signal reliability is high, generally used in bad environment, responsiveness is not high occasions.

(3) The connection between the switch signal and the PLC input module for different PLC input circuits should correctly select the input mode of the sensor (NPN or PNP), when the NPN type sensor is operated, the OUT end is 0V, (NPN type output OUT should be connected to the leakage type PLC input end) output low level signal. PNP sensor action, OUT end is +V, output high level signal.
