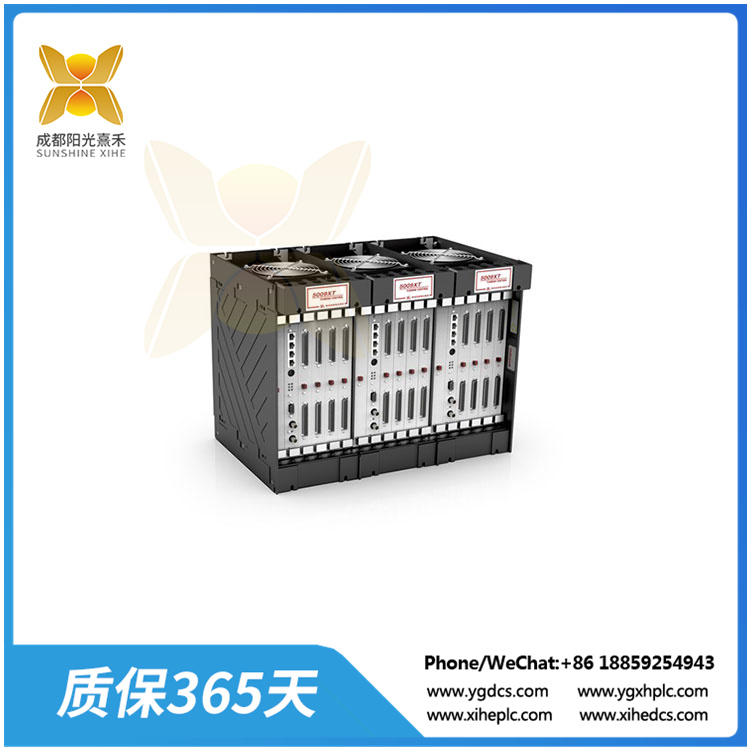

8262-1143? ? 渦輪機
8262-1143的三冗余容錯設計使其能夠在任何單點故障下繼續安全運行渦輪機。模塊化設計和熱插拔功能可以最大限度地延長正常運行時間，最大限度地減少控制所需的維護停機。8262-1143控制獨特的PID結構使其成為需要精確控制參數的應用的理想選擇，例如渦輪轉速，負載，抽氣集箱壓力，進口集箱壓力和排氣集箱壓力或連接線功率。
這種現場可編程控制器允許用戶輕松地進行系統配置更改，而無需OEM專家。該系統可以使用可選的17英寸觸摸屏顯示器或運行Woodward的RemoteView軟件的任何工作站進行控制、配置、校準和調整。RemoteView還可以作為系統的HMI，允許操作員監控系統，啟動/停止渦輪機，啟用/禁用所有控制模式，以及查看/重置系統警報。
應用程序:
速度/頻率控制
汽輪機或發電機負荷控制/限制
抽油和/或進氣口壓力控制
渦輪進口集箱壓力控制/限制
渦輪排氣集箱壓力控制/限制
設備輸入/輸出功率控制/限制
各機組之間的等時負荷分擔
任何與單位負荷直接相關的過程
比例或集成伺服位置控制與LVDT/RVDT激勵(可選模塊)
特點:
IEC61508 SIL-3認證(要求MSM)
三模冗余
API612 & 670兼容
會給出控制器
在線配置和維修
可選集成HMI/工程工作站
先出問題指示
容錯電源
一毫秒的時間戳警報和故障
集成超速保護
CANOpen與伍德沃德閥門和I/O集成
阿基里斯認證
8262-1143? ? 渦輪機
The 8262-1143’s triple-redundant, fault-tolerant design allows it to continue operating the turbine safety under any single point of failure. Modular design and hot-swapping capability allow maximum uptime and minimize maintenance shutdowns required for the control.? The 8262-1143 control’s unique PID structure makes it ideal for applications requiring accurate control of parameters such as turbine speed, load, extraction header pressure, inlet header pressure, and exhaust header pressure or tie-line power.
This field programmable controller allows users to easily make system configuration changes without the need of an OEM expert. The system can be controlled, configured, calibrated and tuned using the optional 17” touchscreen display or any workstation running Woodward’s RemoteView software. RemoteView can also function as an HMI for the system, allowing operators to monitor the system, start/stop the turbine, enable/disable all control modes, and view/reset system alarms.
Applications:
Speed/frequency control
Turbine or generator load control/limiting
Extraction and/or admission header pressure control
Turbine inlet header pressure control/limiting
Turbine exhaust header pressure control/limiting
Plant import/export power control/limiting
Isochronous load sharing between units
Any process directly related to unit load
Proportional or integrating Servo Position Control with LVDT/RVDT excitation (with optional modules)
Features:
IEC61508 SIL-3 Certified (Requires MSM)
Triple modular redundant
API612 & 670 Compliant
Field-proven controller
On-line configurable and repairable
Optional integrated HMI/engineering workstation
First-out problem indication
Fault-tolerant power supplies
One-millisecond time-stamped alarms & faults
Integrated overspeed protection
CANOpen for integration with Woodward valves and I/O
Achilles certified
