描述

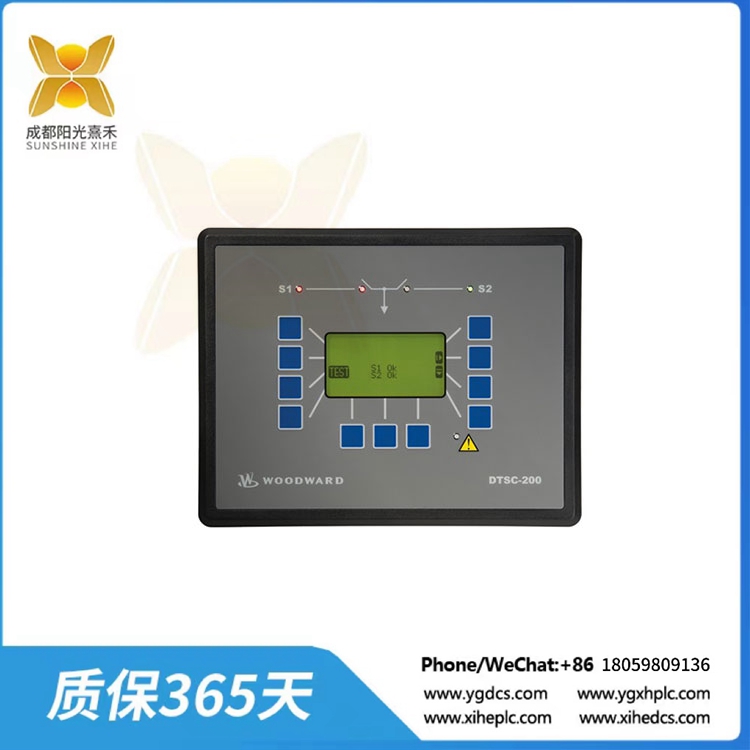

8440-1868 CONTROL-DTSC-200-55B

DTSC-200是新ATS(自動轉換開關)構建和改造的終極控制。一個完整的測量和保護包，它可以很容易地配置為公用事業對發電機，發電機對發電機，或公用事業對公用事業系統的開放，

伍德沃德的DTSC-200是新ATS(自動轉換開關)構建和改造的終極控制。一個完整的測量和保護包，它可以很容易地配置為公用事業到發電機，發電機到發電機，或公用事業到公用事業系統的開放，延遲，或封閉過渡轉移與同步檢查，以確保最順利的轉移。

高端功能，如傳輸抑制、源優先級選擇、負載卸載、電機負載斷開、電梯預信號和發動機運動定時器，都是這款功能齊全、成本效益高的控制系統的標準配置。

特點:
可配置為打開，延遲和關閉轉換傳輸
可配置的效用到發電，發電機到發電機，和效用到效用應用程序
封閉過渡傳輸可以在< 100ms的時間內完成
同相監控(同步檢查)
負載/無負載測試功能
發動機鍛練(負荷/空載試驗)程序，間隔完全可調
調峰方式
甩負荷
延長并行時間(對于耗時超過100ms的封閉轉換傳輸)
禁止傳輸和/或重新傳輸
源優先級選擇
電梯預轉移和電機負載斷開定時器
帶有實時時鐘的事件/警報日志系統
內部斷路器聯鎖利用離散輸入斷路器位置檢測
可自由配置的離散I/O，支持外部I/O擴展單元(例如Woodward ikd1)
RS-232, RS-485和CAN總線接口，用于遠程控制和可視化目的
支持CANopen和Modbus RTU協議
PC和/或前顯示配置
128×64像素圖形LCD顯示
LogicsManager提供可編程邏輯功能，消除繼電器邏輯或PLC
真實有效值電壓，電流和功率傳感
用于電源可用性和斷路器狀態的led

8440-1868 CONTROL-DTSC-200-55B

The DTSC-200 is the ultimate control for new ATS (automatic transfer switch) builds and retrofits. A complete measurement and protection package, it easily configures to Utility-to-Generator, Generator-to-Generator, or Utility-to-Utility systems for open,

Woodward’s DTSC-200 is the ultimate control for new ATS (automatic transfer switch) builds and retrofits. A complete measurement and protection package, it easily configures to Utility-to-Generator, Generator-to-Generator, or Utility-to-Utility systems for open, delayed, or closed-transition transfer with synch-check to ensure the smoothest possible transfer.

High-end features like transfer inhibit, source priority selection, load shed, motor load disconnect, elevator pre-signal, and engine exerciser timers come standard in this incredibly versatile, cost-effective control.

Features:
Configurable for open, delayed, and closed transition transfer
Configurable for Utility-to-Gen, Generator-to-Generator, and Utility-to-Utility applications
Closed transition transfers can be accomplished in times < 100ms
In-phase monitoring (sync-check)
Load/no load test functionality
Engine exerciser (load/no load test) routine with fully adjustable interval
Peak shaving mode
Load shedding
Extended parallel time (for closed transition transfers that take longer than 100ms)
Transfer and/or re-transfer inhibit
Source priority selection
Elevator pre-transfer and motor load disconnect timers
Event/Alarm log system with real time clock
Internal breaker interlock utilizing discrete inputs for breaker position detection
Freely configurable discrete I/O with support for external I/O expansion units (e.g. Woodward IKD 1)
RS-232, RS-485 and CAN bus interfaces for remote control and visualization purposes
Supports CANopen and Modbus RTU protocols
PC and/or front display configuration
128×64 pixels graphic LCD display
LogicsManager provides programmable logic functions that eliminate relay logic or PLC`s
True RMS voltage, current and power sensing
LEDs for source availability and breaker status
