描述

8440-2178? ?LS-5系列繼電器 同步器控制器

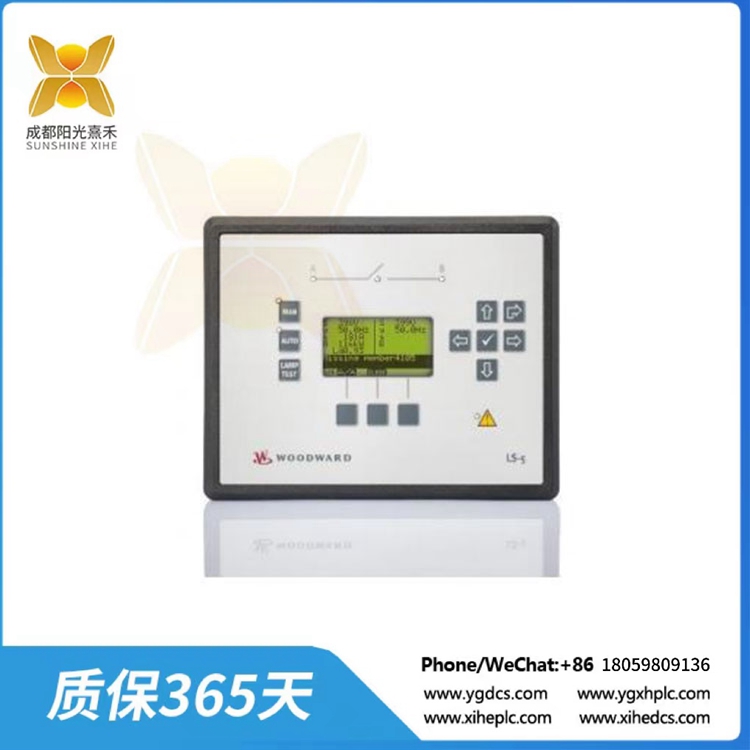

伍德沃德的LS-5系列繼電器是同步器控制器集成電源去耦和保護功能。應用范圍從獨立的同步檢查繼電器到具有多個公用事業饋電的復雜電源管理

LS-5系列是具有集成保護功能的同步器和負載共享控制器。它們旨在實現復雜的電源管理應用，具有多個輸入電源和母線斷路器，并結合配備easYgen-3400/3500的發電機組控制器。

LS-5設備將管理每個總線段的同步、加載和卸載，并通過CAN總線將所需的電壓和頻率參考發送到easYgen-3400/3500發電機組控制器。LS-5裝置位于輸入電源斷路器上，將自動檢測電源故障并相應地啟動相應的發電機組。布線工作減少到最低限度，因為在所有LS-5和easYgen-3400/3500控制器之間只需要一個CAN總線連接。不需要在LS-5和easYgen-3400/3500控制器之間連接任何交流測量信號或離散輸入/輸出。

通過離散輸入或接口提供廣泛的遠程控制功能，可以輕松將LS-5集成到每個應用環境中。
后面板安裝LS-521具有堅固的鋁制底盤，適用于惡劣環境或密閉空間。

功能包括:
多達16個LS-5單元可以與多達32個easYgen-3400/3500在一個網絡中運行
相位匹配或滑移頻率同步與電壓匹配
全保護包(包括df/dt (ROCOF)，相移和電源電壓增加保護，符合新的德國電網規范VDE-0126-1-1的要求)
分段控制的負荷分擔
事件日志，最多300個條目
LS-5單元和連接的easYgen-3400/3500控件之間的自動日期和時間同步
LS-5“獨立”模式?jīng)]有easYgen-3400/3500是可能的
現場最常見應用(MCB或MCB/GGB應用)的預配置應用模式
自動和手動模式
全遠程控制通過CAN或RS-485接口
如果在應用中使用變壓器，矢量組調整是可用的
斷路器開/關故障檢測
市電去耦“測試”模式
多語言功能
鍵盤鎖定功能

8440-2178? ?LS-5系列繼電器 同步器控制器

Woodward’s LS-5 Series relays are synchronizer controllers with integrated mains decoupling and protection features. The applications range from independent synch check relay to complex power management with multiple utility feeds

The LS-5 Series are synchronizer and load share controllers with integrated protective functions. They are designed to enable complex power management applications with multiple incoming mains and bus breakers in combination with easYgen-3400/3500 equipped genset controllers.

The LS-5 devices will manage synchronization, loading and unloading on each bus segment and send the required voltage and frequency references via CAN bus to the easYgen-3400/3500 genset controllers. LS-5 devices which are located on the incoming mains breakers will automatically detect mains failures and start the corresponding gensets accordingly. Wiring efforts are reduced to a minimum, since only one CAN bus connection is required between all LS-5 and easYgen-3400/3500 controllers. It is not required to wire any AC measurement signals or discrete inputs/outputs between the LS-5 and easYgen-3400/3500 controllers.

Extensive remote control capabilities via discrete inputs or interfaces are provided to easily integrate the LS-5 into each application environment.
The back panel mounted LS-521 has a rugged aluminum chassis for use in harsh environments or confined spaces.

Features include:
Up to 16 LS-5 units can be operated in one network with up to 32 easYgen-3400/3500
Phase match or slip frequency synchronization with voltage matching
Full protection package ( including df/dt (ROCOF), phase shift and mains voltage increasing protection according to new German grid code requirements in VDE-0126-1-1)
Segment control for the load sharing
Event Log with up to 300 entries
Automatic date and time synchronization between the LS-5 units and the connected easYgen-3400/3500 controls
LS-5 “Stand alone” mode without the easYgen-3400/3500 is possible
Preconfigured application modes for the most common applications in the field (MCB or MCB/GGB application)
Automatic and Manual mode
Full remote control via CAN or RS-485 interface
In case transformers are used in the application, vector group adjustment is available
Breaker open/close failure detection
Mains decoupling “Test” mode
Multilingual capability
Lock Keypad feature
