描述

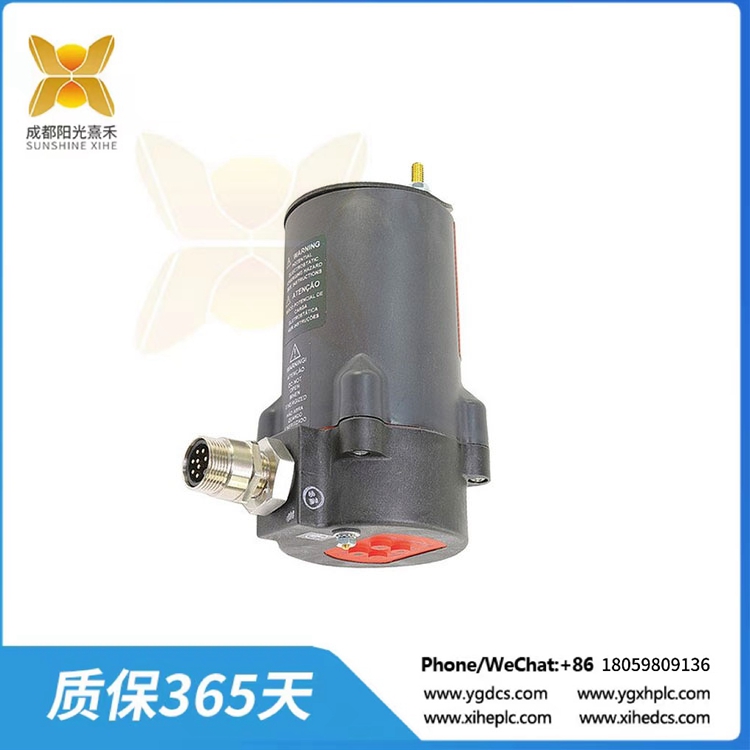

85UVF1-1QDK3 火焰檢測器

概述：Fireye生產的Phoenix 85UVF/IRF系列火焰檢測器是應用了固態火焰檢測傳感器的微處理器設備。它設有一個可以自動設定ON/OFF （有火/無火）門檻值的內部繼電器，因此可以取消遠程放大器或者火焰開關。

Phoenix火檢探頭檢測目標火焰產生的調制振幅（即火焰閃爍特性），以檢測寬廣的頻率。在探頭的設定程序中，目標火焰的振幅將會與最佳的ON/OFF值一起被自動儲存。相應適合的傳感器增益也將被自動選取。探頭兼有全部自診斷和電子自檢功能。

Phoenix 85UVF/IRF因?yàn)闄z測元件和適用危險區不同級別的認證不同而分成多種型號Phoenix 85UVF/IRF火焰探頭需24Vdc供電，通過8針電氣快拆接頭與電纜連接（QD型號）。還有標準4-20mA火焰強度信號輸出。

注意: QD型號的接線形式改為電氣快拆接頭連接，替代了原有的自帶3米長電纜的探頭型號。
QD探頭（相應電纜型號為59-546-X）可直接應用于Class I Division 2危險區。因而取消了“EX”型號，應用于Ex II 2 G/D 類危險區的“CEX”型號保留不變。

應用：Phoenix 85UVF 自檢探頭可檢測295-340nm波長的紫外線。Phoenix 85UVF1-1QDK3和85UVF1-1CEXK3火檢探頭是標準的Phoenix產品的衍生，使用先進的光學濾鏡。該濾鏡調節了光學靈敏度，可探測310nm到500nm波長的可見光。

85UVF1-1QDK3 火焰檢測器

Overview: Fireye’s Phoenix 85UVF/IRF series flame detectors are microprocessor devices with solid-state flame detection sensors. It has an internal relay that automatically sets the ON/OFF (fire/no fire) threshold, so remote amplifiers or flame switches can be cancelled.

The Phoenix fire detector detects the modulated amplitude (i.e. flame flicker characteristics) generated by the target flame to detect a wide range of frequencies. The amplitude of the target flame is automatically stored along with the optimal ON/OFF value during the probe setup program. The appropriate sensor gain will also be selected automatically. The probe has full self-diagnostic and electronic self-test functions.

The Phoenix 85UVF/IRF is divided into various models due to different levels of certification for different detection components and applicable danger zones. The Phoenix 85UVF/IRF flame probe requires a 24Vdc power supply and is connected to a cable via an 8-pin electrical quick-release connector (QD model). There is also a standard 4-20mA flame intensity signal output.

Note: The QD model has an electrical quick-release connection instead of the original probe model with a 3-meter cable.
The QD probe (corresponding cable model 59-546-X) can be directly applied to Class I Division 2 danger areas. The “EX” model was therefore eliminated and the “CEX” model for use in the Ex II 2 G/D danger zone remained unchanged.

Application: The Phoenix 85UVF self-test probe can detect ultraviolet light at 295-340nm wavelengths. The Phoenix 85UVF1-1QDK3 and 85UVF1-1CEXK3 fire detectors are derivatives of the standard Phoenix products and use advanced optical filters. The filter adjusts the optical sensitivity to detect visible light at wavelengths from 310nm to 500nm.
