  • 安裝方式：8715-CA-BI采用35mm DIN導軌安裝，尺寸為22.5mm x 99mm x 114mm，重量約為160g，便于在工業現場進行安裝和調試。
  • 模塊化設計：該模塊是一種完全模塊化的I/O解決方案，具有開放式架構，可與各種不同的現場總線進行通信。它支持并將總線接口模塊(BIM)或控制器、電源、I/O模塊和現場接線端子進行互連，方便用戶根據實際需求進行靈活配置。

描述

產品細節說明：8715-CA-BI MTL 模擬信號隔離總線接口模塊

  1. 信號隔離：8715-CA-BI模塊可以將輸入信號進行有效隔離，防止輸入回路與輸出回路之間的干擾，確保傳輸?shù)男盘栙|(zhì)量。這一功能對于保證工業自動化系統的穩定性和可靠性至關重要。
  2. 模擬信號傳輸：該模塊主要用于隔離和傳輸4-20mA的模擬信號。輸入信號為4-20mA DC，輸出信號可以是4-20mA DC或1-5V DC，滿足不同應用場景的需求。
  3. 數字量控制：作為數字量控制模塊，8715-CA-BI具有8個數字量輸入端口和4個數字量輸出端口。這些端口可用于連接各種類型的傳感器和執行器，并支持多種控制模式，包括開關、按鈕和繼電器等，從而實現對工業自動化系統的精確控制。
  • 安全相關特性：該模塊符合安全標準的要求，適用于需要高安全性能的工業自動化系統。
  • 冗余系統總線：采用冗余系統總線結構，提高了系統的可靠性和可用性。
  • 擴展診斷功能：具有模塊和通道狀態的擴展診斷功能，方便用戶進行故障排查和維護。
  • 高速數據傳輸：支持高達6 Mbaud的LAN速度，實現高速的數據傳輸。

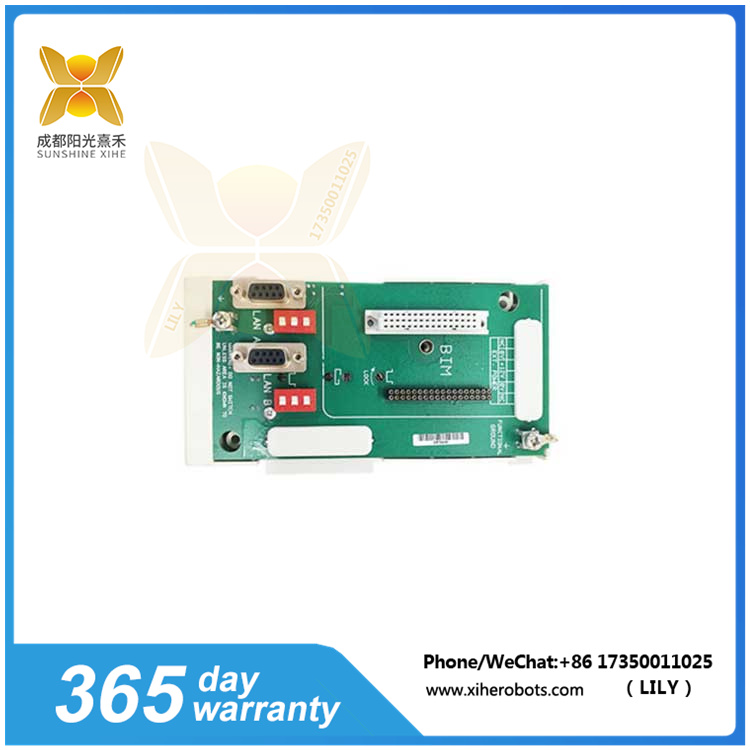

8715-CA-BI

產品詳情參數 ：8715-CA-BI MTL 模擬信號隔離總線接口模塊

  • 隔離電壓：達到1500V AC，確保高電壓環境下的安全使用。
  • 頻率響應范圍：DC – 10kHz，滿足大多數工業自動化系統的頻率要求。
  • 線性度誤差：±0.1%，保證信號傳輸?shù)木_性。
  • 供電電壓：18-32V DC，提供靈活的供電選擇。
  • 工作溫度范圍：-20°C到+60°C，適應各種工業環境。

8715-CA-BI MTL? 應用領域：

MTL 8715-CA-BI模擬信號隔離總線接口模塊廣泛應用于各種工業自動化系統中，如過程控制、自動化生產線、機器人控制等領域。它以其高性能、高可靠性和靈活性等特點，為工業自動化系統的穩定運行提供了有力保障。MTL 8715-CA-BI模擬信號隔離總線接口模塊是一款功能強大、性能穩定、易于安裝和配置的工業自動化模塊，是工業自動化系統中不可或缺的重要組成部分。

Product Details: 8715-CA-BI MTL Analog Signal Isolation Bus Interface Module

Signal isolation: The 8715-CA-BI module can effectively isolate input signals, prevent interference between input and output circuits, and ensure the quality of transmitted signals. This function is crucial for ensuring the stability and reliability of industrial automation systems.

Analog signal transmission: This module is mainly used for isolating and transmitting 4-20mA analog signals. The input signal is 4-20mA DC, and the output signal can be 4-20mA DC or 1-5V DC to meet the needs of different application scenarios.

Digital quantity control: As a digital quantity control module, the 8715-CA-BI has 8 digital quantity input ports and 4 digital quantity output ports. These ports can be used to connect various types of sensors and actuators, and support multiple control modes including switches, buttons, and relays, enabling precise control of industrial automation systems.

Security related features: This module meets the requirements of security standards and is suitable for industrial automation systems that require high security performance.
Redundant system bus: Adopting a redundant system bus structure improves the reliability and availability of the system.
Extended diagnostic function: It has module and channel status extension diagnostic function, which facilitates users to troubleshoot and maintain faults.
High speed data transmission: Supports LAN speeds up to 6 Mbaud to achieve high-speed data transmission.
Product details and parameters: 8715-CA-BI MTL analog signal isolation bus interface module
Isolation voltage: up to 1500V AC to ensure safe use in high voltage environments.
Frequency response range: DC -10kHz, meeting the frequency requirements of most industrial automation systems.
Linearity error: ± 0.1%, ensuring the accuracy of signal transmission.
Power supply voltage: 18-32V DC, providing flexible power supply options.
Working temperature range: -20 ° C to+60 ° C, suitable for various industrial environments.
Application areas of 8715-CA-BI MTL:

The MTL 8715-CA-BI analog signal isolation bus interface module is widely used in various industrial automation systems, such as process control, automated production lines, robot control, and other fields. It provides strong guarantees for the stable operation of industrial automation systems with its high performance, high reliability, and flexibility. The MTL 8715-CA-BI analog signal isolation bus interface module is a powerful, stable, easy to install and configure industrial automation module, and an indispensable and important component of industrial automation systems.
