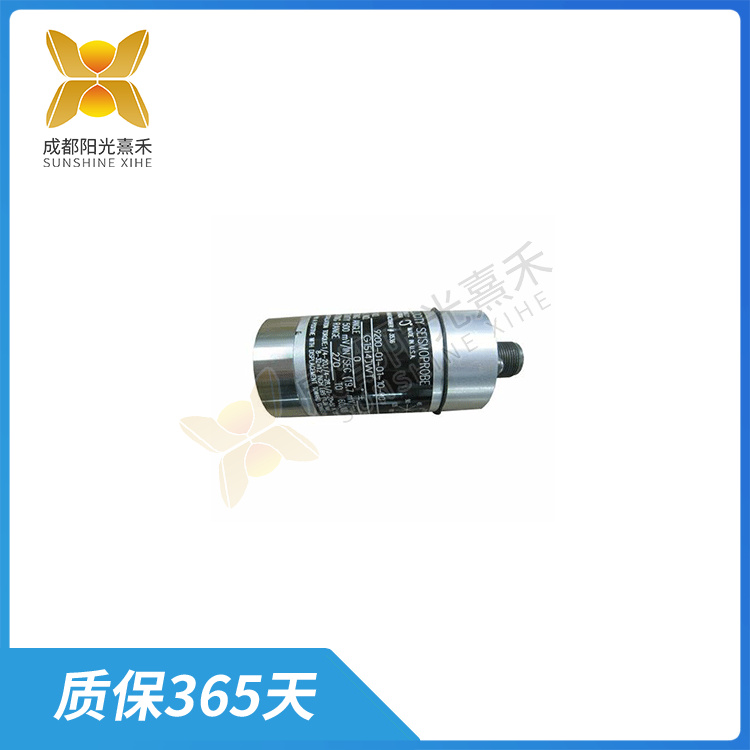

9200-01-01-10-00 兩線傳感器

兩線制傳感器主要由傳感器、調理電路以及兩線制V/I變換器構成。傳感器負責將溫度、壓力等物理量轉化為電參量,調理電路則對傳感器輸出的微弱或非線性的電信號進行放大、調理,并轉化為線性的電壓輸出。

9200-01-01-10-00在多個方面展現出其優勢。首先,由于只使用兩根線,其接線簡單易懂,安裝方便,尤其適合小空間安裝。其次,兩線制傳感器的量程范圍靈活,既可以做大量程的,也可以做小量程的。此外,在傳輸距離較大以及防爆等場合,無源的兩線制傳感器是更好的選擇。

描述

9200-01-01-10-00 兩線傳感器

9200-01-01-10-00是一款兩線傳感器,其工作原理主要基于4~20mA信號為自身提供電能。在這類傳感器中,兩根導線既用作電源線,又作為信號線,實現電源供應和信號傳輸?shù)碾p重功能。

從結構上看,兩線制傳感器主要由傳感器、調理電路以及兩線制V/I變換器構成。傳感器負責將溫度、壓力等物理量轉化為電參量,調理電路則對傳感器輸出的微弱或非線性的電信號進行放大、調理,并轉化為線性的電壓輸出。

9200-01-01-10-00在多個方面展現出其優勢。首先,由于只使用兩根線,其接線簡單易懂,安裝方便,尤其適合小空間安裝。其次,兩線制傳感器的量程范圍靈活,既可以做大量程的,也可以做小量程的。此外,在傳輸距離較大以及防爆等場合,無源的兩線制傳感器是更好的選擇。

需要注意的是,9200-01-01-10-00兩線制傳感器的自身耗電(包括傳感器在內的全部電路)一般要求不大于3.5mA,以確保能夠輸出下限4mA值。如果變送器自身耗電大于4mA,那么將無法輸出下限4mA值。

在應用中,當PLC的模板輸入通道設定為連接兩線制傳感器時,PLC的模擬輸入模板的通道上還需要向外輸出一個直流24V的電源,以驅動兩線制傳感器工作。

總的來說,9200-01-01-10-00因其接線簡單、安裝方便、量程范圍靈活以及適用于特定場合等優勢,在工業自動化等領域得到了廣泛應用。

9200-01-01-10-00 兩線傳感器

The 9200-01-01-10-00 is a two-wire sensor that provides power to itself based on a 4 to 20mA signal. In this type of sensor, two wires are used as both a power line and a signal line to achieve dual functions of power supply and signal transmission.

From the structural point of view, the two-wire sensor is mainly composed of a sensor, a conditioning circuit and a two-wire V/I converter. The sensor is responsible for converting physical quantities such as temperature and pressure into electrical parameters, and the conditioning circuit amplifies and adjusts the weak or nonlinear electrical signals output by the sensor, and converts them into linear voltage output.

The 9200-01-01-10-00 shows its advantages in several ways. First of all, because only two wires are used, its wiring is simple and easy to understand, easy to install, especially suitable for small space installation. Secondly, the range range of the two-wire sensor is flexible, which can be done with large range and small range. In addition, in the case of large transmission distance and explosion protection, passive two-wire sensor is a better choice.

It should be noted that the power consumption of the 9200-01-01-10-00 two-wire sensor (all circuits including the sensor) is generally not greater than 3.5mA to ensure that the lower limit of 4mA can be output. If the transmitter consumes more than 4mA, it will not be able to output the lower limit of 4mA.

In the application, when the PLC template input channel is set to connect the two-wire sensor, the PLC analog input template channel also needs to output a DC 24V power supply to drive the two-wire sensor work.

In general, 9200-01-01-10 has been widely used in industrial automation and other fields due to its advantages of simple wiring, easy installation, flexible range and suitable for specific occasions.
