描述

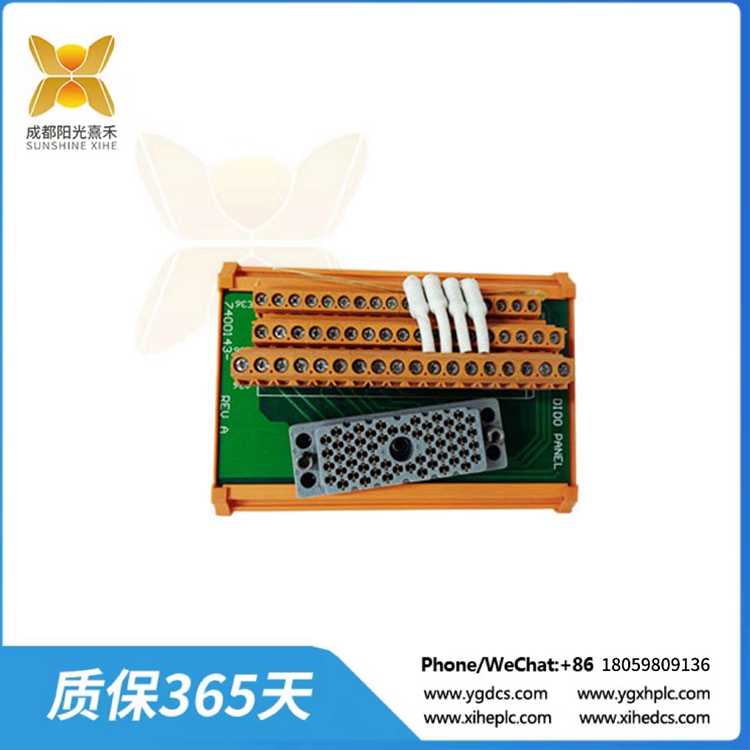

9853-610 模擬量輸出端子板

TRICONEX的特點

為了保證在任何時候系統都有最高的完整性，

備有三重組合式冗余結構，三個完全相同的系統分支的每一個都能獨立地執行控制程序。而且備有專用的硬件／軟件機制，可對輸入和輸出進行“表決”。能耐受?chē)?yán)酷的工業環境。能夠現場安裝，可以在控制器在線使用狀態下進行模件一級的修理工作。I/O模件的更換不會打亂現場布線。能支持多達118個I/O模件(模擬的和數字的)和選裝的通訊模件，該模件可以與Modbus主機和從屬機連接，或者和FoxboroHoneywell分布控制系統(DCS)、其它在Peer—to—Peer網絡內的各個TRICON、以及在802.3網絡上的外部主機相連接。

—-備有組合的支持，可以支持位于遠離主機架2公里(1.2英里)以?xún)?nèi)的遠距I／O模件。

—-可以執行控制程序，該程序按繼電器梯級邏輯寫成并由一獨立的稱作TRISTATION的工作站進行演變和調試。

—-在輸入和輸出模件內備有智能功能，以使主處理器的工作負荷得以減輕，每個I/O模件都有三個微處理器。輸入模件的微處理器對輸入進行過濾和解調，并診斷模件上的硬件故障。輸出模件微處理器為輸出數據的表決提供信息、檢查來自輸出終端的環回?cái)?shù)據以使輸出能最后有效、并能診斷現場線路的問題。

—-提供總體的在線診斷，并具有自適應修理能力。

—-可以在TRICONEX正常運行中進行常規維護而不干擾被控的過程。

—-可支持“熱插備件”I/O模件在關鍵時候的使用，在不可能立即進行維修的情況下應急。

9853-610 模擬量輸出端子板

Features of TRICONEX

To ensure the highest system integrity at all times,

With a triple combined redundancy structure, each of the three identical system branches can execute the control program independently. There is also a dedicated hardware/software mechanism to “vote” on inputs and outputs. Withstand harsh industrial environments. It can be installed in the field and can be repaired at the module level when the controller is in online use. I/O module replacement does not disrupt the field wiring. Supports up to 118 I/O modules (analog and digital) and optional communication modules that can be connected to Modbus hosts and slaves. Or connect to FoxboroHoneywell Distributed Control System (DCS), other Tricons within the peer-to-peer network, and external hosts on the 802.3 network.

– Combined support for remote I/O modules located up to 2 km (1.2 mi) from the main frame.

A control program can be executed that is written in relay cascade logic and is evolved and debugged by an independent workstation called TRISTATION.

Intelligent functions are built into the input and output modules to reduce the workload of the main processor, and each I/O module has three microprocessors. The input module’s microprocessor filters and demodulates the input and diagnoses hardware failures on the module. The output module microprocessor provides information for voting on the output data, checks the loopback data from the output terminal to make the output final valid, and can diagnose problems with the field line.

— Provides total online diagnostics with adaptive repair capabilities.

Routine maintenance can be performed during normal TRICONEX operation without interfering with controlled processes.

– Supports the use of “hot swappable Spare parts” I/O modules at critical times, in cases where immediate repair is not possible.
